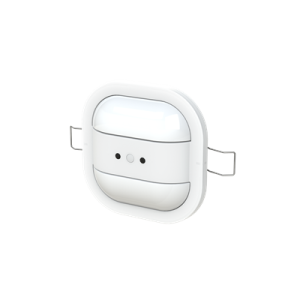

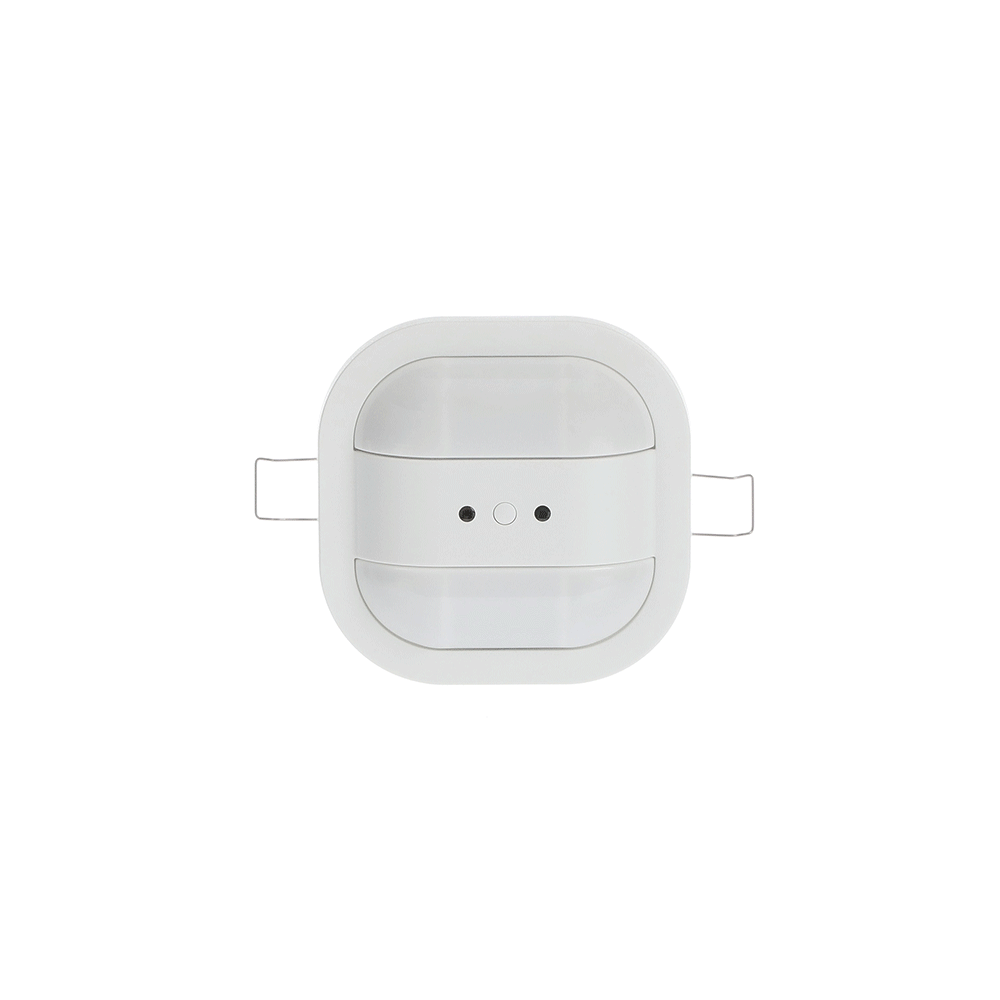

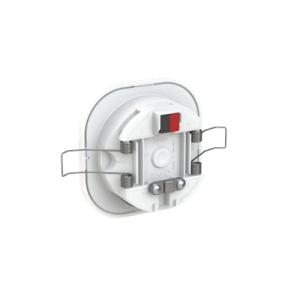

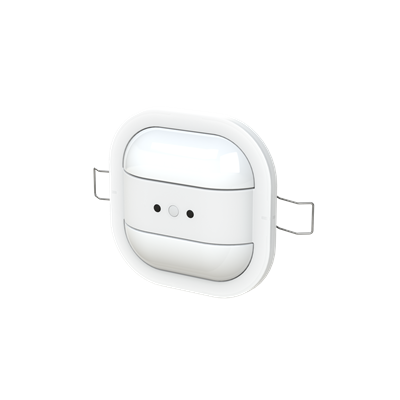

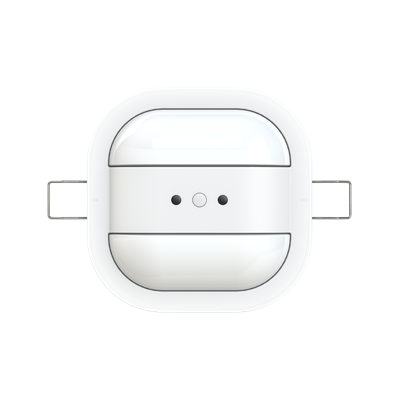

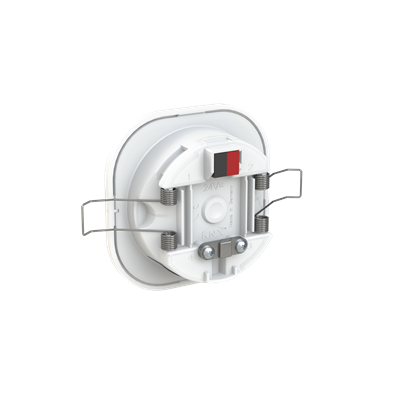

1. 6131/20-24-500 ABB KNX Presence Mini W: Detection Ranges and Channels

The detector excels in flexibility, offering scalable detection capability based on mounting height and sophisticated dual-channel control.

Detection Capabilities:

• Detection Angle: Full 360° Sensor Detection Range.
• Seated Detection (Max): Up to 5 m (at 2.5 m height) and up to 9 m (at 4 m height).
• Walking Detection (Max): Up to 6.5 m (at 2.5 m height) and up to 10.5 m (at 4 m height).
• Minimum Switching Time: Fast Switch-On time of 10 seconds.

Control Modes:

• Dual Channel Control: Equipped with 2 channels to manage two light bands brightness-dependently.
• Energy Efficiency: Supports Constant light switch functionality with up to two independent channels.
• Power-Off Stages: Features a detector application with 2 power off stages for multi-level control.
• Integration: Includes an integrated KNX bus coupler for seamless Twisted Pair (TP) communication. Commands are sent to actuators like the KNX MOSFET Dimming Actuator .
