ABB CP-D24/2.5

Description

Introduction

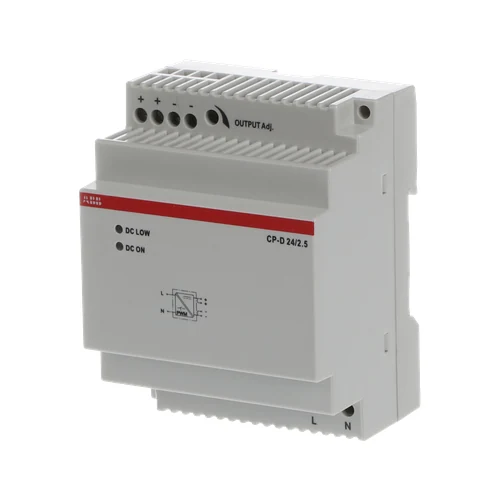

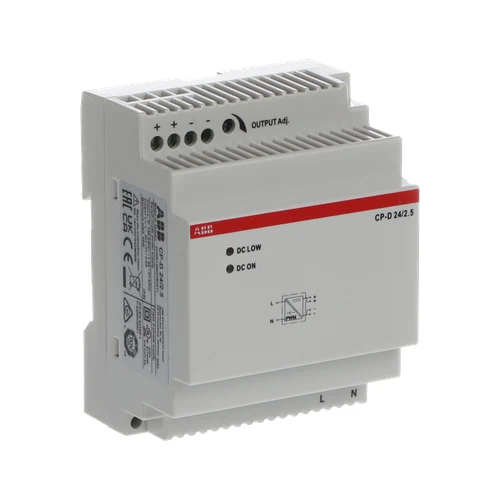

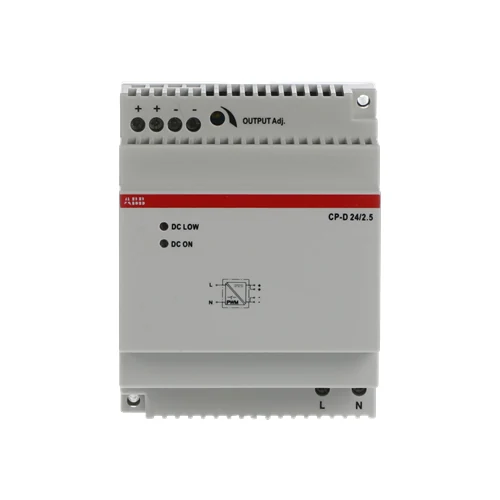

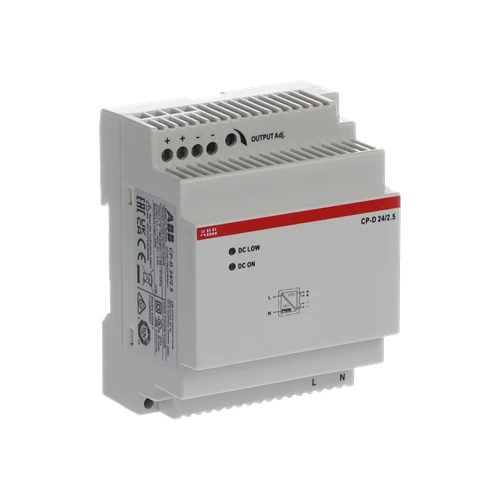

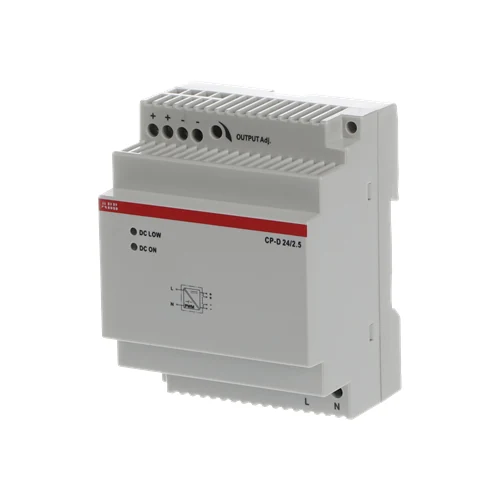

The ABB CP-D24/2.5, SKU CP-D24/2.5, is a 24 V DC power supply in the KNX System Components category. Its catalog description identifies it as “CP-D24/2.5 Power Supply, 24 V DC, 2.5 A, MDRC,” with Product ID 2CDG120037R0011 and EAN 4016779697897.

This ABB power supply is specified as an additional power supply for the priOn power bus coupling unit 6120/13, System Access Point SAP/S.13, SmartTouch 10” ST/U10.2.xx-xxx, RoomTouch 4” RT/U12.86.xx-xxx, RoomTouch 5” RT/U30.x.xx-xxx, Trevion 2.4” Display SD/U12.xx.xx-xxx, and other devices that require an additional 24 V DC supply voltage.

Key Features

• Brand: ABB.
• SKU and display name: CP-D24/2.5.
• Product ID: 2CDG120037R0011.
• Product type: Power supply.
• Catalog description: CP-D24/2.5 Power Supply, 24 V DC, 2.5 A, MDRC.
• Number of outputs: 1.
• Recommended screw driver: PH1.
• Declaration of Conformity – CE document reference: 9AKK2017-107078.

Benefits

• Provides an additional 24 V DC supply voltage for the ABB device families and product references listed in the manufacturer description.
• Supports professional specification by using clear manufacturer identifiers: Extended Product Type CP-D24/2.5, Product ID 2CDG120037R0011, and EAN 4016779697897.
• Designed as a power supply with one output, helping consultants and installers match the item accurately against a bill of quantities.
• Rated output information is clearly identified in the product data as 24 V DC and 2.5 A.
• The listed voltage range is 110 … 230 V AC, with rated frequency 50/60 Hz, supporting accurate review against the official project documentation.
• Manual operation is stated as “No,” reducing ambiguity during submittal review and procurement checks.

Technical Specifications

Specification	Value
Extended Product Type	CP-D24/2.5
Product ID	2CDG120037R0011
Display Name	CP-D24/2.5
Instructions and Manuals	9AKK2017-107080
Number of Outputs	1
Manual Operation	No
Recommended Screw Driver	PH1
Number of Batteries	0
E-Number (Norway)	4546609
Declaration of Conformity – CE	9AKK2017-107078
EAN	4016779697897
Catalog Description	CP-D24/2.5 Power Supply, 24 V DC, 2.5 A, MDRC
Manufacturer Description	Additional power supply for priOn power bus coupling unit 6120/13, System Access Point SAP/S.13, SmartTouch 10“ ST/U10.2.xx-xxx, RoomTouch 4” RT/U12.86.xx-xxx, RoomTouch 5“ RT/U30.x.xx-xxx, Trevion 2.4” Display SD/U12.xx.xx-xxx and other devices which require additional 24 V DC…
Product Type	Power supply
Rated Voltage (U<sub>r</sub>)	230
Voltage Range	110 … 230 V AC
Auxiliary Voltage AC/DC	230 V AC/DC
Output Voltage (U<sub>out</sub>)	24
Rated Current (I<sub>n</sub>)	2.5
Rated Frequency (f)	50/60 Hz
Power Consumption (@P<sub><span style=”font-size:x-small;”>cons</span></sub>)	70
Power Loss	70.1
ETIM 9	EC002540 – DC-power supply
ETIM 10	EC002540 – DC-power supply
IDEA Granular Category Code (IGCC)	4130 >> DC-power supply

Applications

• Additional 24 V DC supply for priOn power bus coupling unit 6120/13.
• Additional 24 V DC supply for System Access Point SAP/S.13.
• Additional 24 V DC supply for SmartTouch 10” ST/U10.2.xx-xxx, RoomTouch 4” RT/U12.86.xx-xxx, and RoomTouch 5” RT/U30.x.xx-xxx.
• Additional 24 V DC supply for Trevion 2.4” Display SD/U12.xx.xx-xxx and other devices requiring additional 24 V DC supply voltage.

Installation Notes

• Verify the exact model CP-D24/2.5 and Product ID 2CDG120037R0011 against the project bill of quantities before ordering or installation.
• Use the official ABB instructions and manuals reference 9AKK2017-107080 for installation requirements and commissioning guidance.
• Confirm that the required device is an additional 24 V DC supply application matching the manufacturer description.
• The recommended screw driver is PH1, as stated in the product data.
• Manual operation is listed as “No”; do not plan for manual operation unless confirmed in the official ABB documentation.

Developer Resources

• Manufacturer product URL: https://new.abb.com/products/en/2CDG120037R0011/cp-d24-2-5
• Instructions and Manuals reference: 9AKK2017-107080.
• Declaration of Conformity – CE reference: 9AKK2017-107078.
• Product ID for specification and documentation matching: 2CDG120037R0011.
• EAN for procurement verification: 4016779697897.
• KNXbazzar ABB brand page: https://knxbazzar.com/knxshop/?brand=abb
• KNX System Components category: https://knxbazzar.com/product-category/knx-system-components/

FAQ

What is the ABB CP-D24/2.5 used for?

It is an additional power supply for devices requiring additional 24 V DC supply voltage, including the listed ABB priOn, System Access Point, SmartTouch, RoomTouch, and Trevion display references.

What is the Product ID for ABB CP-D24/2.5?

The Product ID is 2CDG120037R0011.

How many outputs does the CP-D24/2.5 have?

The product data lists the number of outputs as 1.

What official manual reference should be used?

The instructions and manuals reference listed for this product is 9AKK2017-107080.

What should buyers check before placing an order?

Buyers should verify the exact SKU CP-D24/2.5, Product ID 2CDG120037R0011, EAN 4016779697897, and project BOQ description to avoid ordering the wrong power supply.

What is the exact product model?

The order/model code for this page is CP-D24/2.5. Match it against project documents before purchase.

Conclusion

The ABB CP-D24/2.5 is a specified 24 V DC, 2.5 A power supply for additional supply requirements in the ABB device applications listed in the product data.

For accurate procurement, match CP-D24/2.5, Product ID 2CDG120037R0011, EAN 4016779697897, and the official ABB documentation references before ordering.
