ABB FCC/S1.2.2.1 Fan Coil Controller, 2 x 0-10 V, MDRC

Description

Introduction

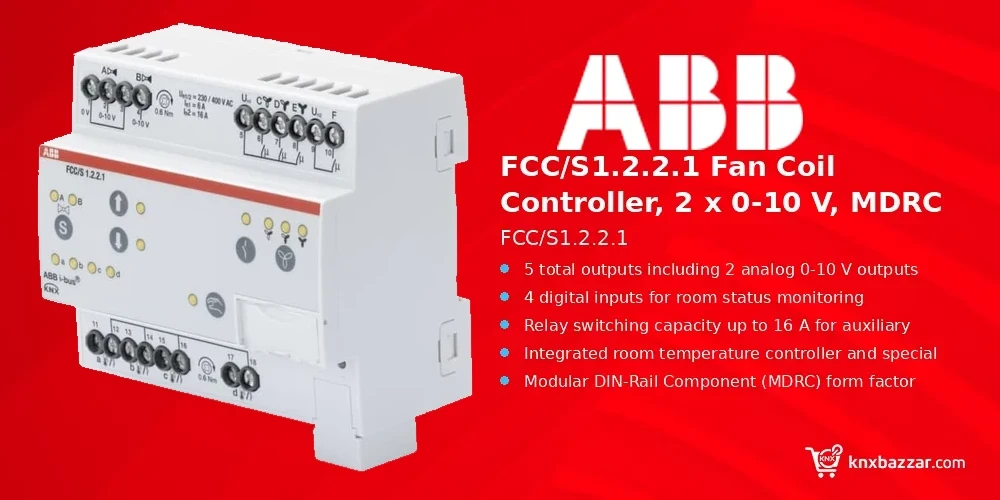

The ABB FCC/S1.2.2.1 (Product ID: 2CDG110213R0011) is an MDRC KNX (TP) device designed for the comprehensive control of fan coil units in building automation environments. Operating with an IP20 degree of protection, this unit features an integrated room temperature controller that directly controls its onboard outputs, optimizing heating and cooling performance without requiring external RTC hardware. This device is part of our KNX system components range.

Engineered with 5 total outputs and 4 digital inputs, the FCC/S1.2.2.1 provides flexible actuation for two analog valves or a single 6-way valve drive via two 0-10 V analog outputs. It also includes 3 relay outputs for 3-stage fan speed control and supports additional auxiliary heating loads up to 16 A on a relay output, alongside manual operation capabilities and diagnostic integration via the ABB i-bus Tool.

Key Features

• 5 total outputs including 2 analog 0-10 V outputs and 3 fan relay outputs.
• 4 digital inputs for room status monitoring and external sensor connections.
• Relay switching capacity up to 16 A for auxiliary heating loads.
• Integrated room temperature controller and special Valve Protection functionality.
• Modular DIN-Rail Component (MDRC) form factor with IP20 protection.
• Manual operation interface for direct manual control.
• Native KNX (TP) bus system compatibility.
• Advanced diagnostic support via ABB i-bus Tool.

Benefits

• Integrated Room Temperature Control: Built-in controller directly regulates device outputs for efficient room temperature management.
• Flexible Valve Actuation: Supports two analog valves or one 6-way valve drive for heating and cooling via two 0-10 V analog outputs.
• Multi-Stage Fan Management: Provides 3 dedicated relay outputs for controlling 3-stage fan coil speed setups.
• High auxiliary load capacity: Includes a relay output capable of switching additional loads up to 16 A, such as auxiliary heating elements.
• Versatile Input Options: Features 4 digital inputs to monitor window contacts, dew point sensors, level sensors, temperature sensors, or connect analog room control units (SAR/A or SAF/A).
• Streamlined Diagnostics & Maintenance: Features manual operation controls and supports the ABB i-bus Tool for simplified commissioning and troubleshooting.

Technical Specifications

Specification	Value
Extended Product Type:	FCC/S1.2.2.1
Special Functions:	Valve Protection
Product ID:	2CDG110213R0011
Instructions and Manuals:	2CDG941188P0002
Number of Outputs:	5
Number of Digital Inputs:	4
Manual Operation:	Yes
Number of Batteries:	0
Declaration of Conformity – CE:	2CDK508224D2701
2CKA006134A0346	SAR/A1.0.1-24 RT-control element
EAN:	4016779011457
Catalog Description:	FCC/S1.2.2.1 Fan Coil Controller, 2 x 0-10 V, Manual Operation, 3-stage, MDRC
Long Description:	For the control of fan coil units. Via two analog outputs, two analog valves or one 6-way valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The FCC/S 1.2.2.1 features an easy to use manual operation. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Compatible Bus Systems:	KNX (TP)
Product Range:	KNX
Degree of Protection:	IP20
ETIM 9:	EC001586 – Heating actuator for bus system
WEEE B2C / B2B:	Business To Consumer
Identifier	Description
Environmental Degree of Protection	IP20
Degree of Protection	IP20
Mounting Type:	DIN-Rail
Installation Instructions and Manuals	2CDG941188P0002 Mounting Type: DIN-Rail
Instructions and Manuals	2CDG941188P0002 Mounting Type: DIN-Rail
Data Sheet, Technical Information:	2CDC508215D0211

Applications

Fan Coil Unit Automation: Comprehensive control of 3-speed fans and 0-10 V heating/cooling valve drives in commercial and residential KNX installations. Explore more ABB building automation products for professional building automation projects.

Room Climate Integration: Localized climate control combining integrated temperature regulation, window contact monitoring, dew point sensing, and auxiliary 16 A heating control.

Installation Notes

• Mount standard Modular DIN-Rail Component (MDRC) in an appropriate IP20 distribution board or cabinet.
• Connect to the KNX (TP) bus line and verify operational parameter settings using the official documentation (Instructions and Manuals reference: 2CDG941188P0002).
• Wire up to 4 digital inputs for status inputs (such as window sensors, dew point detectors) or compatible analog room control units (SAR/A or SAF/A).

Developer Resources

• Instructions and Manuals Reference: 2CDG941188P0002
• CE Declaration of Conformity: 2CDK508224D2701
• ABB i-bus Tool support for advanced diagnostics and commissioning
• Manufacturer Product Link: https://new.abb.com/products/en/2CDG110213R0011/fcc-s1-2-2-1

FAQ

What primary functions does the ABB FCC/S1.2.2.1 serve?

It serves as a KNX (TP) fan coil controller managing 3-stage fans, 0-10 V analog valve drives, auxiliary heating up to 16 A, and room condition inputs. For certificates and current technical files, refer to the official ABB product page.

How many inputs and outputs does this device provide?

The device features 5 total outputs (including two 0-10 V analog outputs and 3 relay outputs) and 4 digital inputs.

Which room sensors or control units can be connected to the inputs?

The 4 digital inputs support window contacts, dew point sensors, level sensors, temperature sensors, or one analog room control unit (SAR/A or SAF/A).

Does the FCC/S1.2.2.1 support manual operation?

Yes, the device features manual operation capabilities for direct local testing and manual control.

What is the exact product model?

The order/model code for this page is FCC/S1.2.2.1. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by ABB.

Conclusion

The ABB FCC/S1.2.2.1 Fan Coil Controller provides a complete, reliable KNX (TP) solution for 3-speed fan coil units, 0-10 V valve drives, and auxiliary heating systems. Installers and system integrators can review our dealer and project support options.

With manual operation, integrated room temperature control, and ABB i-bus Tool diagnostic integration, it meets the requirements of technical integrators and installers.
