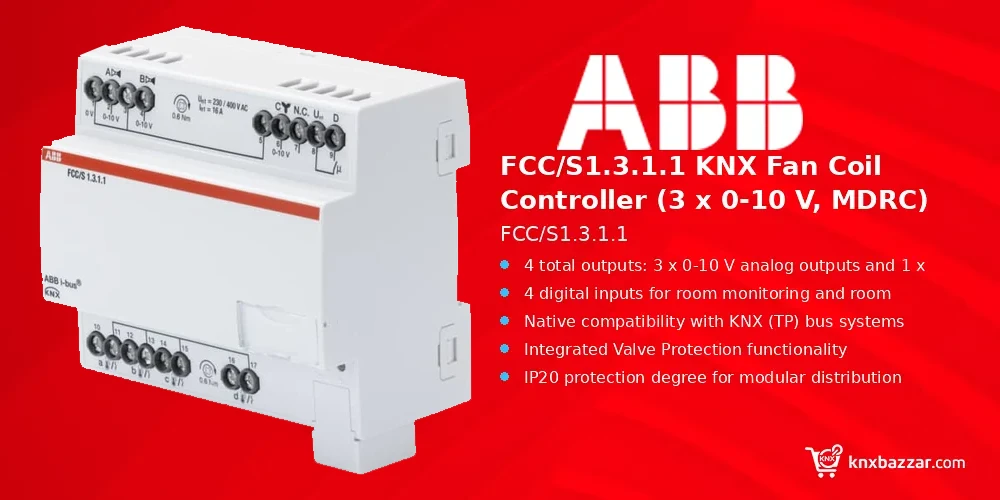

ABB FCC/S1.3.1.1 KNX Fan Coil Controller (3 x 0-10 V, MDRC)

Description

Introduction

The ABB FCC/S1.3.1.1 Fan Coil Controller (Product ID: 2CDG110214R0011) is a modular DIN-rail component designed for heating and cooling control in KNX (TP) building automation systems. Engineered specifically for fan coil unit automation, this controller features three continuous 0-10 V analog outputs to manage analog valves, 6-way valve drives, and continuous variable-speed fans with precision. This device is part of our professional KNX AC Controller range.

Equipped with an integrated room temperature controller, the FCC/S1.3.1.1 regulates space conditions without requiring external control units. The device incorporates a high-capacity 16 A relay output for switching auxiliary heating loads and four digital inputs for monitoring room states via window contacts, dew point sensors, temperature sensors, level sensors, or physical control elements such as the SAR/A or SAF/A series. Diagnostics and commissioning are fully supported via the ABB i-bus Tool.

Key Features

• 4 total outputs: 3 x 0-10 V analog outputs and 1 x 16 A relay output.
• 4 digital inputs for room monitoring and room control element integration.
• Native compatibility with KNX (TP) bus systems.
• Integrated Valve Protection functionality.
• IP20 protection degree for modular distribution board installations.
• Support for analog room control units SAR/A (e.g., SAR/A1.0.1-24) and SAF/A.
• Designed without manual operation buttons on the physical housing.

Benefits

• Continuous Analog Output Control: Features 3 x 0-10 V outputs to seamlessly drive two analog valves or one 6-way valve alongside a variable fan.
• Integrated Room Temperature Controller: Onboard controller processes logic directly, reducing overall KNX bus traffic and system complexity.
• High-Capacity Auxiliary Switching: Integrated relay output supports switching loads up to 16 A for electric auxiliary heaters.
• Comprehensive Room Monitoring: Four digital inputs accommodate window contacts, dew point sensors, level sensors, and analog control elements.
• Automated Valve Protection: Includes built-in valve protection functionality to prevent valve seizing during extended periods of inactivity.
• Advanced Diagnostics Support: Fully compatible with the ABB i-bus Tool for fast field testing, software diagnostics, and efficient commissioning.

Technical Specifications

Specification	Value
Extended Product Type:	FCC/S1.3.1.1
Special Functions:	Valve Protection
Product ID:	2CDG110214R0011
Instructions and Manuals:	2CDG941188P0002
Number of Outputs:	4
Number of Digital Inputs:	4
Manual Operation:	No
Number of Batteries:	0
Declaration of Conformity – CE:	2CDK508225D2701
2CKA006134A0346	SAR/A1.0.1-24 RT-control element
EAN:	4016779011464
Catalog Description:	FCC/S1.3.1.1 Fan Coil Controller, 3 x 0-10 V, MDRC
Long Description:	For the control of fan coil units. Via two analog outputs, two analog valves or one 6-way valve drive can be controlled for heating and cooling. For the fan control the devices features an analog output for the control of a continues fan. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Compatible Bus Systems:	KNX (TP)
Manipulated Variable:	Continious
Product Range:	KNX
Degree of Protection:	IP20
ETIM 9:	EC001586 – Heating actuator for bus system
WEEE B2C / B2B:	Business To Consumer
Identifier	Description
Environmental Degree of Protection	IP20
Degree of Protection	IP20
Mounting Type:	DIN-Rail
Installation Instructions and Manuals	2CDG941188P0002 Mounting Type: DIN-Rail
Instructions and Manuals	2CDG941188P0002 Mounting Type: DIN-Rail

Applications

• Fan coil unit management in commercial office spaces, hospitality, and residential KNX automation projects requiring 0-10 V continuous modulation.
• Room climate control requiring integrated window contact interlocks, dew point monitoring, and auxiliary load switching up to 16 A.

Installation Notes

• Mount on a standard 35 mm DIN rail inside an enclosure providing an IP20 or better environment.
• Refer to ABB instructions manual 2CDG941188P0002 for exact terminal block connection diagrams and wiring specifications.
• Ensure auxiliary heating switching loads connected to the 16 A relay output do not exceed maximum rated limits.

Developer Resources

• ABB Technical Manual Code: 2CDG941188P0002
• CE Declaration of Conformity: 2CDK508225D2701
• Diagnostic Software: ABB i-bus Tool support
• Compatible Control Elements: SAR/A series (e.g. SAR/A1.0.1-24) and SAF/A series

FAQ

What types of outputs are provided on the ABB FCC/S1.3.1.1?

The controller features 4 outputs total: 3 continuous 0-10 V analog outputs (for fan and valve control) and 1 relay output rated up to 16 A for auxiliary loads. Explore more ABB building automation products for professional building automation projects.

What devices can be connected to the 4 digital inputs?

The inputs can monitor window contacts, dew point sensors, level sensors, temperature sensors, or analog room control units like the SAR/A or SAF/A series. For certificates and current technical files, refer to the official ABB product page.

Does the FCC/S1.3.1.1 feature physical manual operation controls?

No, the device is designed without manual operation controls on the front housing.

Does this fan coil controller require a separate room thermostat?

No, the FCC/S1.3.1.1 includes an integrated room temperature controller capable of directly commanding its outputs based on room setpoints and sensor inputs.

What is the exact product model?

The order/model code for this page is FCC/S1.3.1.1. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by ABB.
