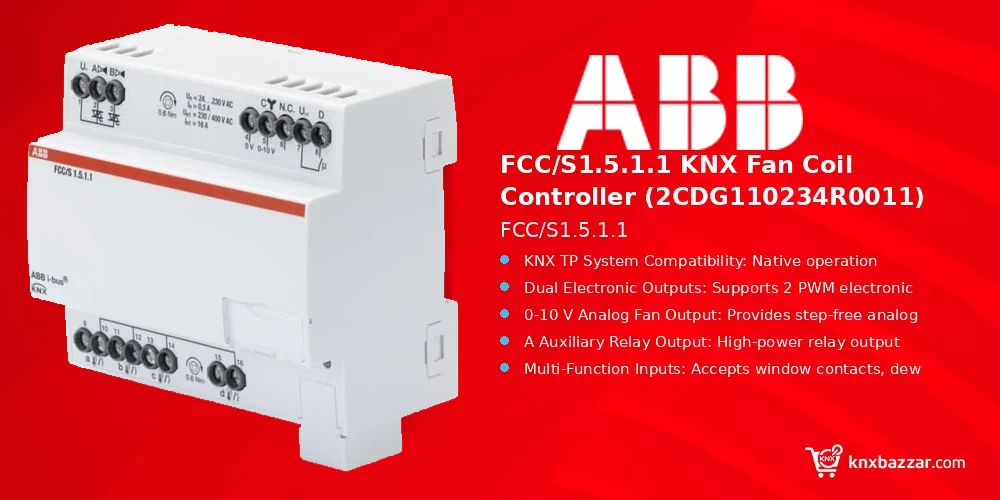

ABB FCC/S1.5.1.1 KNX Fan Coil Controller (2CDG110234R0011)

Description

Introduction

The ABB FCC/S1.5.1.1 (Product ID: 2CDG110234R0011) is an MDRC KNX AC Controller engineered for precise HVAC control in fan coil unit systems. Designed for KNX Twisted Pair (TP) bus systems, this modular unit features an integrated room temperature controller that directly manages outputs to deliver automated climate regulation across commercial and residential installations.

Equipped with two electronic outputs for heating and cooling valves, an analog output for continuous fan speed control, a high-capacity 16 A relay output for auxiliary loads, and four multi-function inputs, the FCC/S1.5.1.1 provides complete room climate monitoring. System integrators can streamline diagnostic and commissioning procedures using the ABB i-bus Tool.

Key Features

• KNX TP System Compatibility: Native operation on KNX (TP) bus systems classified under ETIM EC001586.
• Dual Electronic Outputs: Supports 2 PWM electronic outputs for thermoelectric or motor-driven valve actuation.
• 0-10 V Analog Fan Output: Provides step-free analog signal output for continuous fan speed control.
• 16 A Auxiliary Relay Output: High-power relay output rated up to 16 A for auxiliary heating loads.
• 4 Multi-Function Inputs: Accepts window contacts, dew point, level, and temperature sensors, or SAR/A / SAF/A control units.
• MDRC Form Factor: Modular DIN-rail component with IP20 degree of protection.

Benefits

• Integrated Room Temperature Controller: Features built-in temperature control logic capable of directly commanding output channels for efficient thermal management.
• Flexible Valve Drive Control: Uses two electronic outputs to control either two thermoelectric valve drives or one motor-driven valve for heating and cooling systems.
• Continuous Fan Regulation: Includes an analog output designed for 0-10 V continuous fan control to maintain balanced room ventilation.
• High-Capacity Switching: Built-in relay output rated up to 16 A allows direct switching of additional loads, such as auxiliary electric heating elements.
• Multi-Sensor Monitoring: Features four inputs to monitor room conditions via window contacts, dew point sensors, level sensors, temperature sensors, or SAR/A and SAF/A analog room control units.
• Enhanced System Diagnostics: Supports the ABB i-bus Tool to assist installers and system integrators with advanced hardware diagnosis and rapid commissioning.

Technical Specifications

Specification	Value
Extended Product Type:	FCC/S1.5.1.1
Product ID:	2CDG110234R0011
Customs Tariff Number:	85371091
E-Number (Sweden):	1739453
Declaration of Conformity – CE:	2CDK508228D2701
Instructions and Manuals:	2CDG941188P0002
EAN:	4016779011518
Package Level 1 EAN:	4016779011518
Ordering EAN	4016779011518 Customs Tariff Number: 85371091 Minimum Order Quantity: 1 piece E-Number (Switzerland): 405712415 E-Number (Finland): 2814563 E-Number (Sweden): 1739453
EAN	4016779011518 Customs Tariff Number: 85371091 Minimum Order Quantity: 1 piece E-Number (Switzerland): 405712415 E-Number (Finland): 2814563 E-Number (Sweden): 1739453
Container Information Package Level 1 Units	box 1 piece Package Level 1 EAN: 4016779011518 Package Level 1 Depth / Length: 113 mm Package Level 1 Height: 65 mm Package Level 1 Width: 92 mm Package Level 1 Gross Weight: 0.26 kg
Package Level 1 Units	box 1 piece Package Level 1 EAN: 4016779011518 Package Level 1 Depth / Length: 113 mm Package Level 1 Height: 65 mm Package Level 1 Width: 92 mm Package Level 1 Gross Weight: 0.26 kg
Catalog Description:	FCC/S1.5.1.1 Fan Coil Controller, 2 x PWM, 0-10 V, MDRC
Long Description:	For the control of fan coil units. Via two electronic outputs, two thermoelectric or one motor-driven valve drive can be controlled for heating and cooling. For the fan control the devices features an analog output for the control of a continues fan. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
E-Number (Switzerland):	405712415
E-Number (Finland):	2814563
Compatible Bus Systems:	KNX (TP)
Degree of Protection:	IP20
ETIM 7:	EC001586 – Heating actuator for bus system
ETIM 8:	EC001586 – Heating actuator for bus system
Minimum Order Quantity:	1 piece
Package Level 1 Units:	box 1 piece
Product Net Depth / Length:	63.5
Product Net Height:	90
Product Net Width:	105

Applications

Fan Coil Unit Climate Automation: Precise management of heating and cooling valve drives along with continuous fan speed modulation in KNX-controlled buildings. Explore more products from ABB for professional building automation projects.

Auxiliary Heating Integration: Direct switching of supplementary electric heaters up to 16 A based on integrated room temperature controller commands.

Room Status & Safety Monitoring: Integration of window contacts, condensation dew point sensors, and water level switches via 4 dedicated device inputs.

Installation Notes

• Form Factor & Protection: Designed for MDRC panel mounting with an IP20 protection rating.
• Input Terminal Connections: Connect status monitoring sensors or compatible SAR/A and SAF/A analog room control units directly to inputs 1 through 4.
• Diagnostic Diagnostics: Utilize the ABB i-bus Tool in combination with standard ETS commissioning processes for advanced field diagnosis.

Developer Resources

• Instructions and Manuals Document ID: 2CDG941188P0002
• CE Declaration of Conformity Document ID: 2CDK508228D2701
• ABB i-bus Tool compatibility for advanced field diagnosis and parameter checking

FAQ

What valve types can be controlled by the ABB FCC/S1.5.1.1?

The device features two electronic outputs capable of controlling either two thermoelectric valve drives or one motor-driven valve drive for heating and cooling circuits. For certificates and current technical files, refer to the official product documentation.

What type of fan control does the FCC/S1.5.1.1 provide?

It provides an analog output (0-10 V) designed specifically for continuous fan speed control.

Which sensors and units can be connected to the device inputs?

The four inputs accept window contacts, dew point sensors, level sensors, temperature sensors, or an analog room control unit (SAR/A or SAF/A).

What is the rating of the auxiliary relay output?

The relay output switches additional loads, such as auxiliary heating elements, up to 16 A.

What is the exact product model?

The order/model code for this page is FCC/S1.5.1.1. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by ABB.
