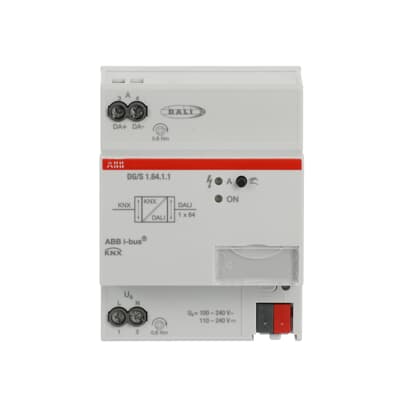

DG/S1.64.1.1 KNX DALI Gateway
€377,00
In stock
DG/S1.64.1.1 KNX DALI Gateway: DALI-2 Certified Single-Master Controller
Control and status feedback are highly flexible, supporting management via KNX per 64 individual DALI participants, 16 lighting groups, or 16 scenes. Crucially, the DG/S1.64.1.1 supports self-contained emergency converters (DT1), allowing KNX to trigger various emergency tests, including function and duration tests.
The gateway integrates advanced features like Slave, Staircase, Force, Block, and Scene functions, and provides extensive fault and error messages, ensuring sophisticated and reliable lighting management.
1. DG/S1.64.1.1 KNX DALI Gateway: Capacity and Emergency Lighting Support
This DALI Gateway provides comprehensive control and compliance essential for modern commercial lighting systems.
DALI-2 Compliance and Capacity:
- Master Control: Single-Master DALI Controller certified according to the DALI-2 standard (EN 62386).
- Output: One DALI output managing up to 64 DALI participants (devices).
- Integrated Power: Integrated DALI power supply, eliminating the need for a separate PSU.
- Control Structure: Supports control via 64 individual DALI addresses, 16 groups, 16 scenes, and broadcast commands.
Advanced Features and Diagnostics:
- Emergency Lighting: Supports self-contained emergency converter DT1 (EN 62386-202), enabling function and duration emergency tests via KNX.
- Fault Monitoring: Provides Extensive fault and error messages for system diagnostics.
- Functions: Integrated advanced functions including Slave, Staircase, Force, Block, and Scene.
- Diagnostics: A separate software tool (ABB i-bus® Tool) is available for configuration and debugging, including DALI address and group assignment.
2. Technical Details and Installation
The DG/S1.64.1.1 is designed for standard electrical panel integration with robust power compatibility.
- Installation: Designed for professional DIN-Rail installation.
- Dimensions: Occupies 4 modular spacings (70 mm width, 90 mm height).
- Power: Wide range Auxiliary Voltage of 110 … 230 V AC, and low power loss (2 W).
- Compatibility: Interfaced with the KNX (TP) bus. Control commands can originate from a KNX Touch Panel or a KNX Multi-function Sensor .
Only logged in customers who have purchased this product may leave a review.
Related products

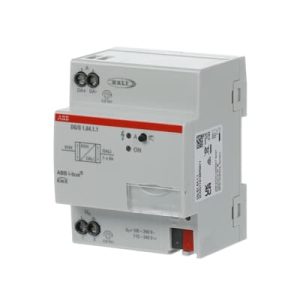

DG/S1.64.1.1 KNX DALI Gateway
