1. Key Features and Advanced Lighting Functions

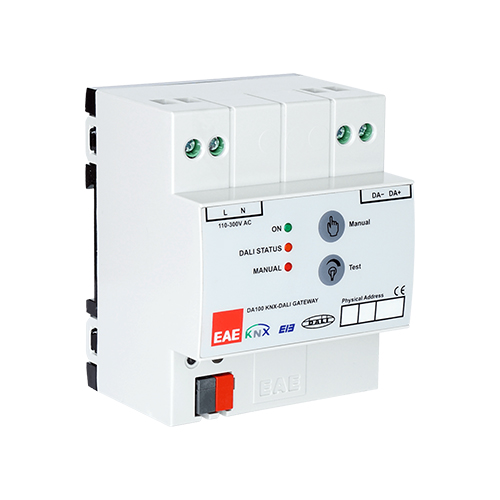

The EAE DA100 DALI Gateway provides deep configuration options via the EAE DALI Commissioning Tool for efficient group management and maintenance.

Control and Grouping:

• DALI Device Capacity: Connects and controls up to 64 DALI devices.
• 16 DALI Groups: Provides control over 16 independent DALI lighting groups, with 64 lighting scenes configurable for flexible automation.
• Integrated Power: Features an integrated DALI power supply, simplifying wiring and reducing component count.

Advanced Applications and Maintenance:

The following advanced functions can be configured for each DALI group:

• Constant Light Function: Configurable per DALI group to maintain energy-efficient, constant light levels based on ambient light measurement.
• Corridor Function: Automated sequence control for lighting in hallways, stairwells, and transition areas.
• Sequence Function: Allows for dynamic lighting effects or complex scene sequences.
• Emergency Lighting Tests: Supports functional and battery life tests for DALI-compliant emergency lighting fixtures, with results sent through KNX.
• Fault Monitoring: Provides comprehensive monitoring of the Fault status of DALI devices, reporting failures as different KNX group objects for prompt maintenance alerts.
