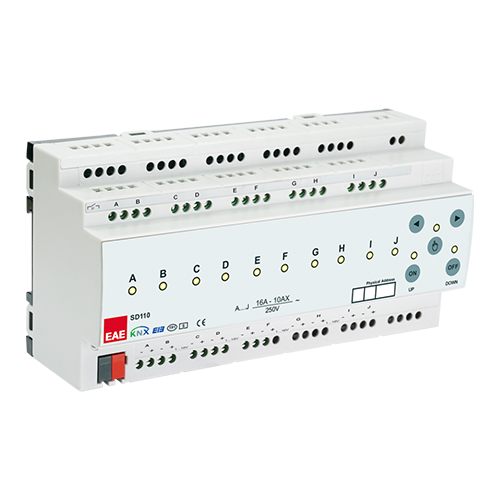

EAE SD110 KNX 1-10V Dim Actuator: 10-Fold Control with 16A Integrated Relay
The SD110’s standout feature is its integrated relay on each channel, capable of switching loads up to 16A. This powerful relay ensures a complete physical disconnection of the load when lights are off, effectively eliminating standby power consumption—a vital factor for achieving energy-efficiency targets in commercial projects.
This high-performance module is fully configurable via ETS4/ETS5 and requires no additional power supply, streamlining the installation process within the electrical distribution board.
1. Key Features and Automation Functions
The EAE SD110 Dim Actuator provides essential functions necessary for comprehensive building automation and maintenance.
Control and Power Management:
- High Channel Density: 10 independent 1-10V dimming channels controlled by KNX.
- 16A Integrated Switch: Each channel includes a powerful relay for a complete switch-off of the load to achieve zero standby loss.
- Manual Control: Features membrane switches on the device enclosure for local manual operation and functional testing of each channel.
- Power Efficiency: Does not require an additional power supply beyond the KNX bus connection.
Programmable Functions:
Each channel can independently utilize the following functions, configurable in ETS:
- Staircase: Built-in automated timer function for communal area lighting.
- Scene: Full support for saving and recalling lighting scenes.
- Operating Hour: Operating Hour counting for connected loads, providing data for predictive maintenance scheduling.
- Forced Operation: Enables emergency or override modes.
- Configurable Behaviour: Allows definition of the channel’s state after events such as voltage return, voltage failure, or ETS download.
2. Technical Specifications
| Specification | Detail |
|---|---|
| Model | SD110 1-10V Dim Actuator |
| Channels | 10 independent channels |
| Dimming Interface | 1-10V (Voltage Dimming) |
| Switching Capacity | 10 x 16A (Integrated Relay) |
| Power Supply | Via KNX Bus (No auxiliary power required) |
| Installation | DIN Rail |
