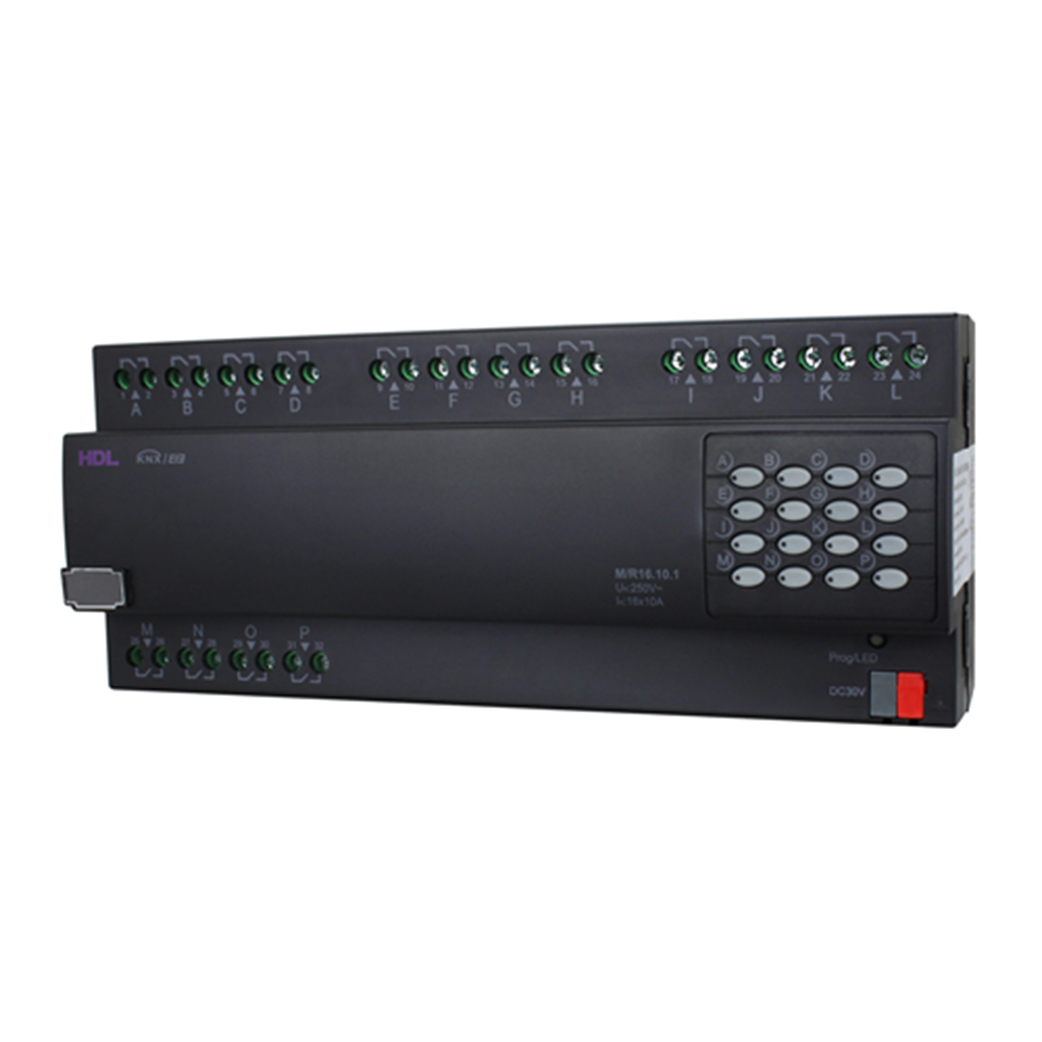

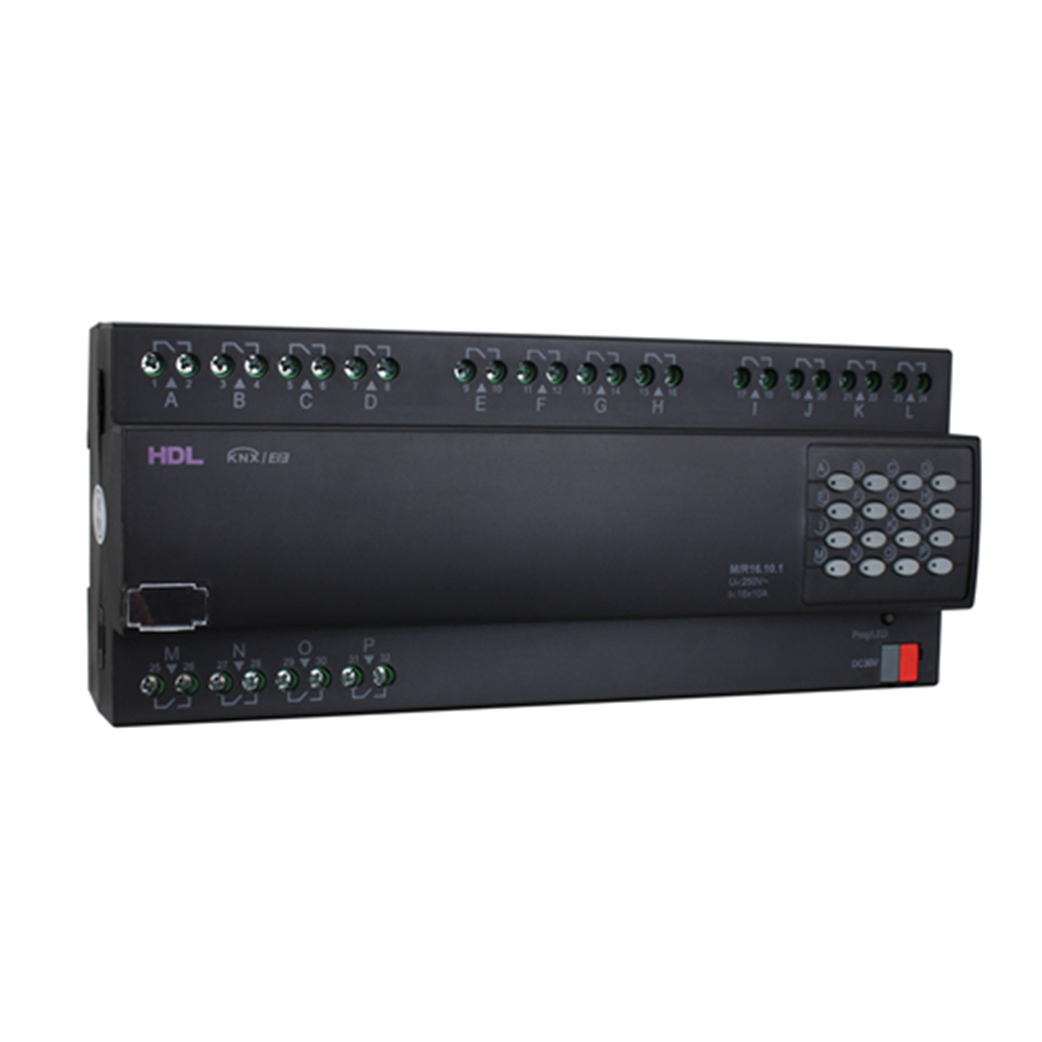

HDL-M/R16.10.1 KNX 16CH 10A High Power Switch Actuator
€340,52
In stock
HDL-M/R16.10.1 KNX 16CH 10A High Power Switch Actuator: High-Density Switching
Fully compliant with European KNX safety standards and protocols, this actuator is characterized by its long life, low power consumption, and fast execution speed. It is optimized for high-power switching equipment, featuring a robust rated switching current of 10A for lighting loads and a maximum inrush current of 500A.
The HDL-M/R16.10.1 provides powerful control versatility, integrating advanced functions like Scene Control, Threshold Function, and complex Logic functions (AND, OR, XOR, Gate), making it ideal for both simple switching and sophisticated automation logic.
1. HDL-M/R16.10.1 KNX 16CH 10A High Power Switch Actuator: Capacity and Logic
This high-power actuator is the backbone for reliable, centralized power control in large KNX installations.
Capacity and Load Handling:
- Channel Count: 16 independent channels with a powerful 10A/CH current capacity.
- Rated Current: 10A lighting load with a maximum inrush current of 500A, ensuring smooth operation with diverse loads.
- Durability: Engineered for over 100,000 operation times, guaranteeing a long product life.
- Total Capacity: Available in 4, 8, 12, and 16 channel types, with the M/R16.10.1 being the highest density option.
Advanced Control Functions:
- Logic Functions: Integrates complex logical operations including AND, OR, XOR, and Gate, allowing the KNX system to execute advanced decision-making processes.
- Automation: Features include Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold function, and Curtain control.
- HVAC Integration: Supports Heating function via PWM (1bit/1byte) control output for efficient climate management.
- Monitoring: Provides Statistical ON time, Status response, and Status recall for system diagnostics and reliability.
2. Technical Details and Installation
Designed for secure and robust operation within a professional DIN-Rail setup.
- Installation: Designed for professional 35mm DIN rail installation (Dimensions: 90×216×64mm, Net weight: 830g).
- Power: Requires KNX bus power (21~30V DC) and handles a wide input voltage of 120V/240V AC (50/60Hz).
- Housing: Made from flame-retardant nylon, with an IP20 protection rating.
