INS4SQ Inspinia 4″ SQ Room Controller
Price range: €335,00 through €383,00
Available on backorder

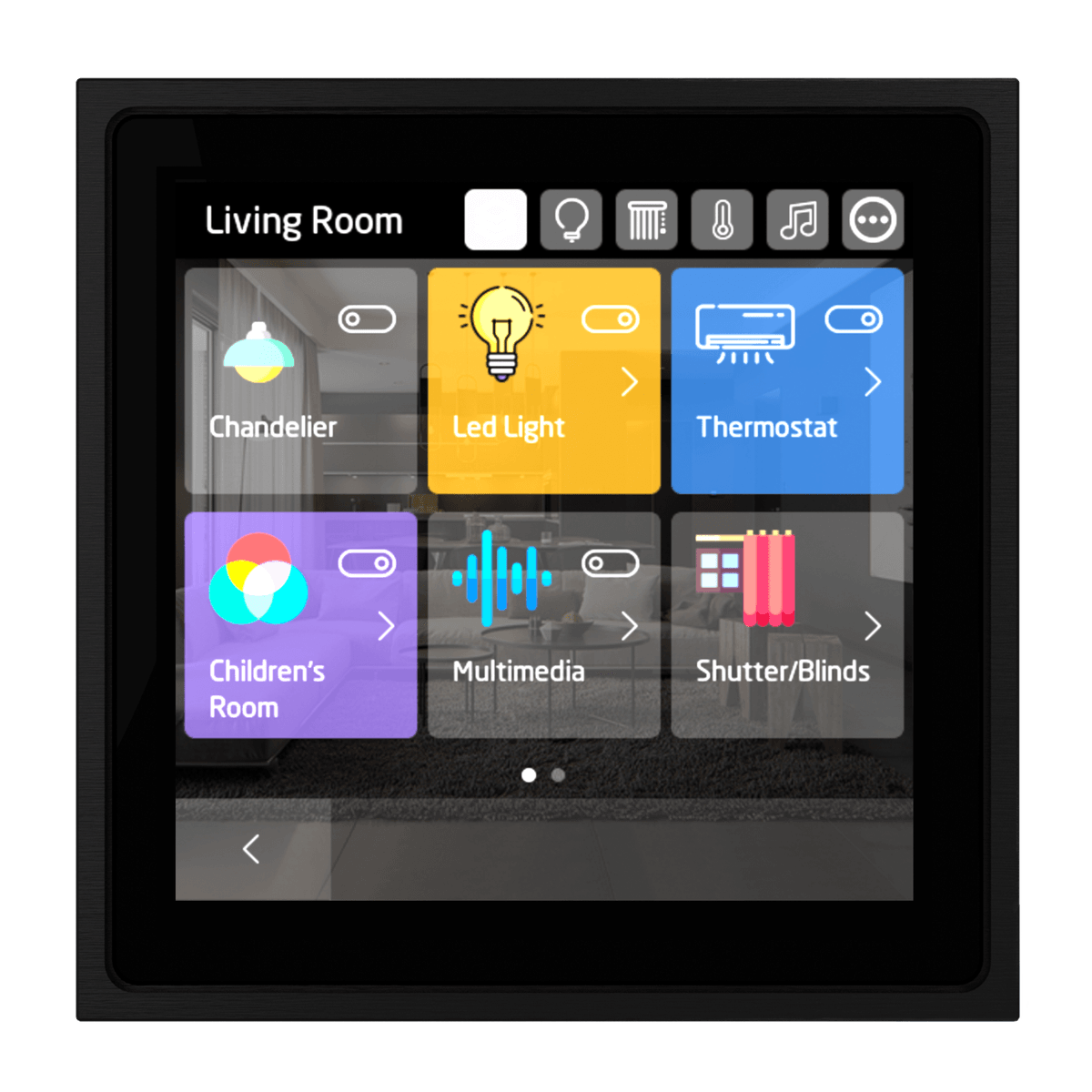

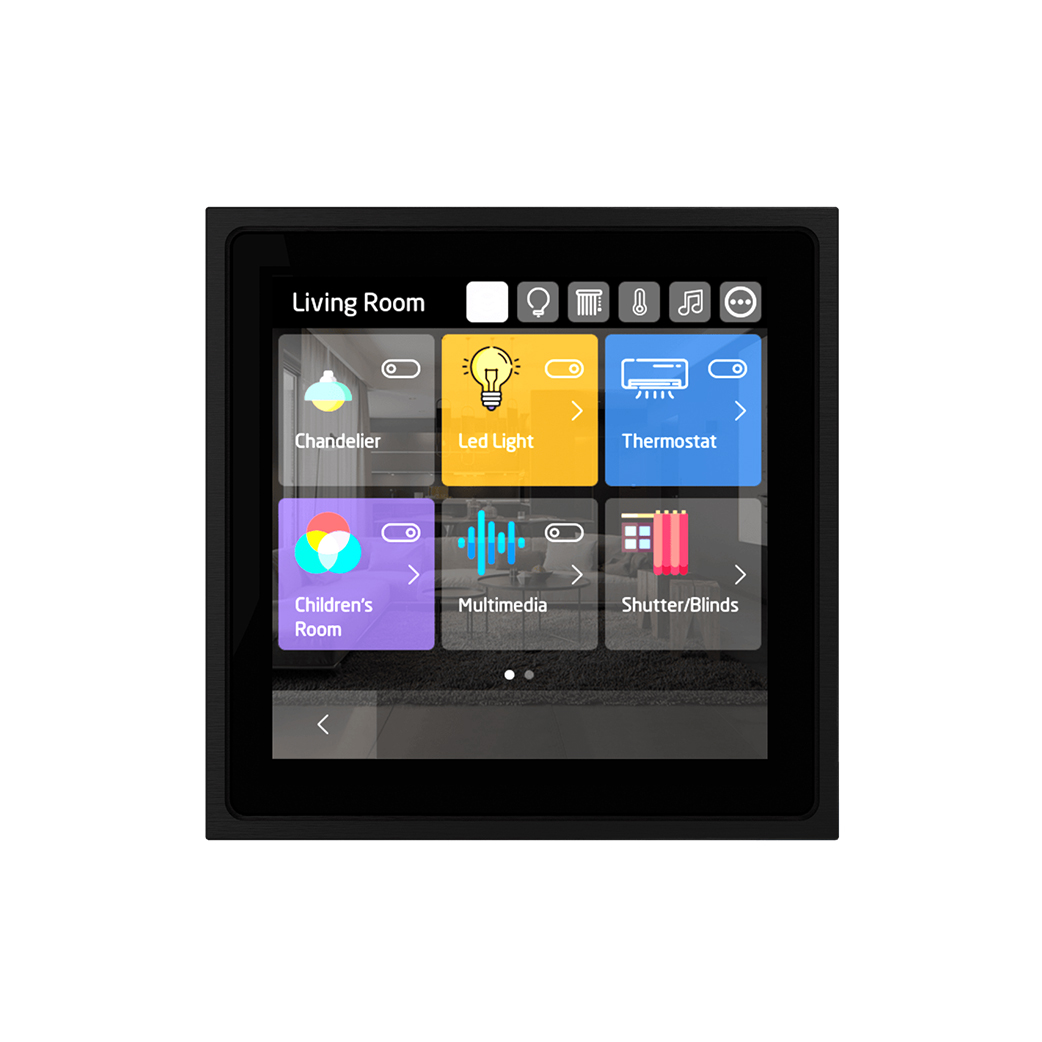

Inspinia 4″ SQ Room Controller | INSPINIA 4SQ | Compact Touch Interface
Built on a reliable Linux architecture, the INSPINIA 4SQ supports up to 1000 BMS points and 200 UI objects. With its integrated environmental sensors and support for major protocols like KNX, Zigbee 3.0, and Modbus, this compact touch panel from the Inspinia SQ series serves as a powerful, localized command center that simplifies complex automation for the end-user.
1. INSPINIA 4SQ: Powerful Control in a Compact Design
A high-performance room interface engineered for precision environmental monitoring and multi-system connectivity.
Core Hardware & Display:
- High-Luminance IPS Screen: 4” display with 400 cd/m2 brightness, ensuring clear visibility even in well-lit rooms.
- Responsive Touch: 5-point capacitive touchscreen for smooth navigation of up to 200 user interface objects.
- BMS Integration: Ships with an initial 200 BMS point license, expandable up to 1000 points for comprehensive room management.
- Environmental Intelligence: Integrated industrial-grade sensors for precise temperature (-40°C to +125°C) and humidity (0-100% RH) tracking.
Connectivity & Efficiency:
- Power over Ethernet (PoE): Supports IEEE 802.3af PoE for simplified, single-cable data and power installation with a low 5W max consumption.
- Expandable Protocols: Features an Add-On port for optional modules including KNX TP, Zigbee 3.0, Bticino (SCS), and iNELS Bus.

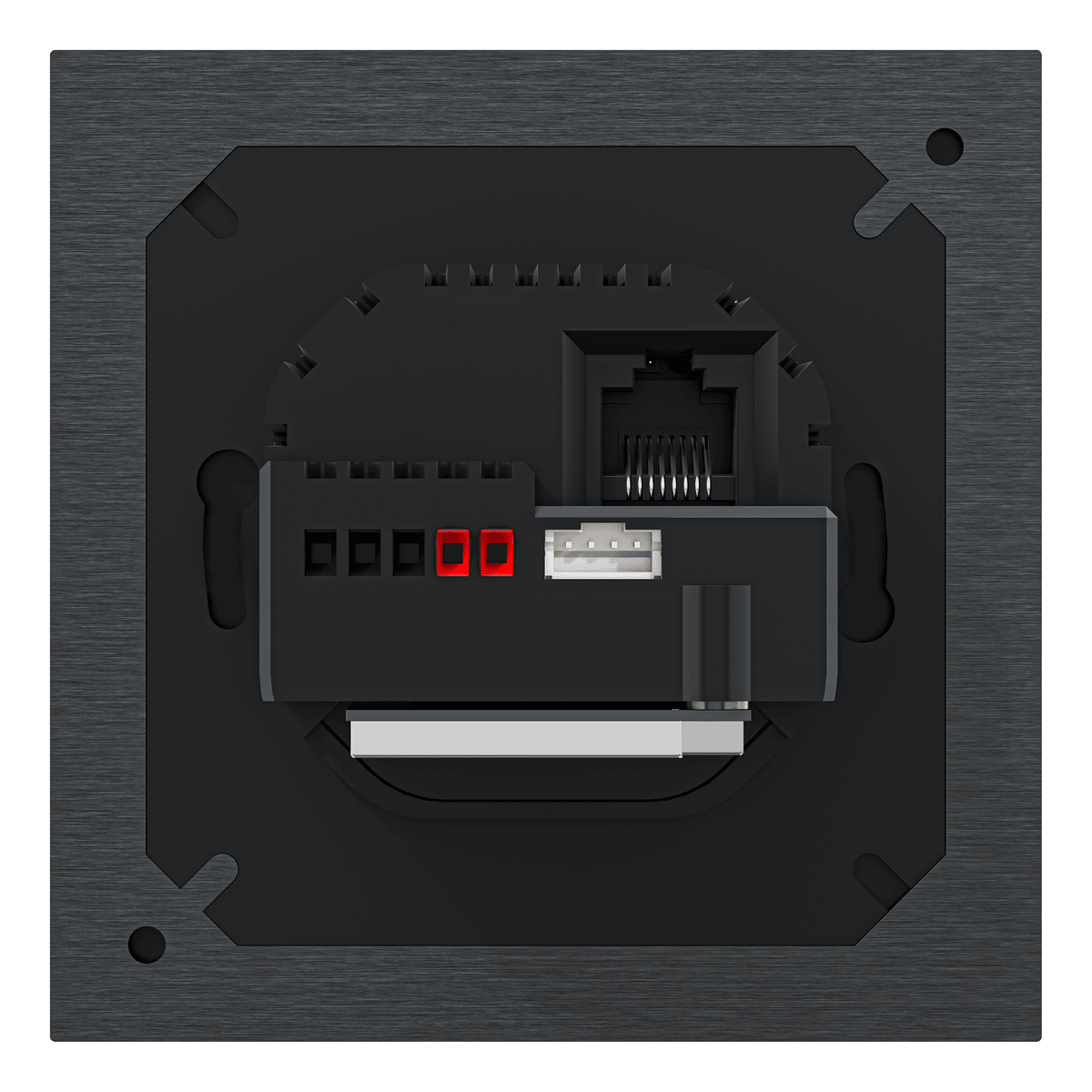

- Local I/O: Equipped with 1x Digital Input and 1x Digital Output (5VDC) for direct integration with local sensors or triggers.
- HVAC Ready: Optional support for VRF mainline communication (A-VXX) for advanced climate control integration.
2. Technical Specifications and Hardware Parameters
Review the technical data for the INSPINIA 4SQ to ensure it meets your localized room control requirements.
| Feature | Specification Details |
|---|---|
| Product Reference | INSPINIA 4SQ |
| Display | 4″ IPS (480 x 480) 400 cd/m2 |
| Processor / RAM | ARM A7 1.2 GHz / 128MB DDR3 |
| BMS Capacity | 1000 Points Max (200 Points Initial) |
| Operating System | Linux 3.4 with Inspinia App |
| Power Supply | 24VDC or PoE (802.3af) |
| Dimensions | Standard SQ Form Factor (Compact) |

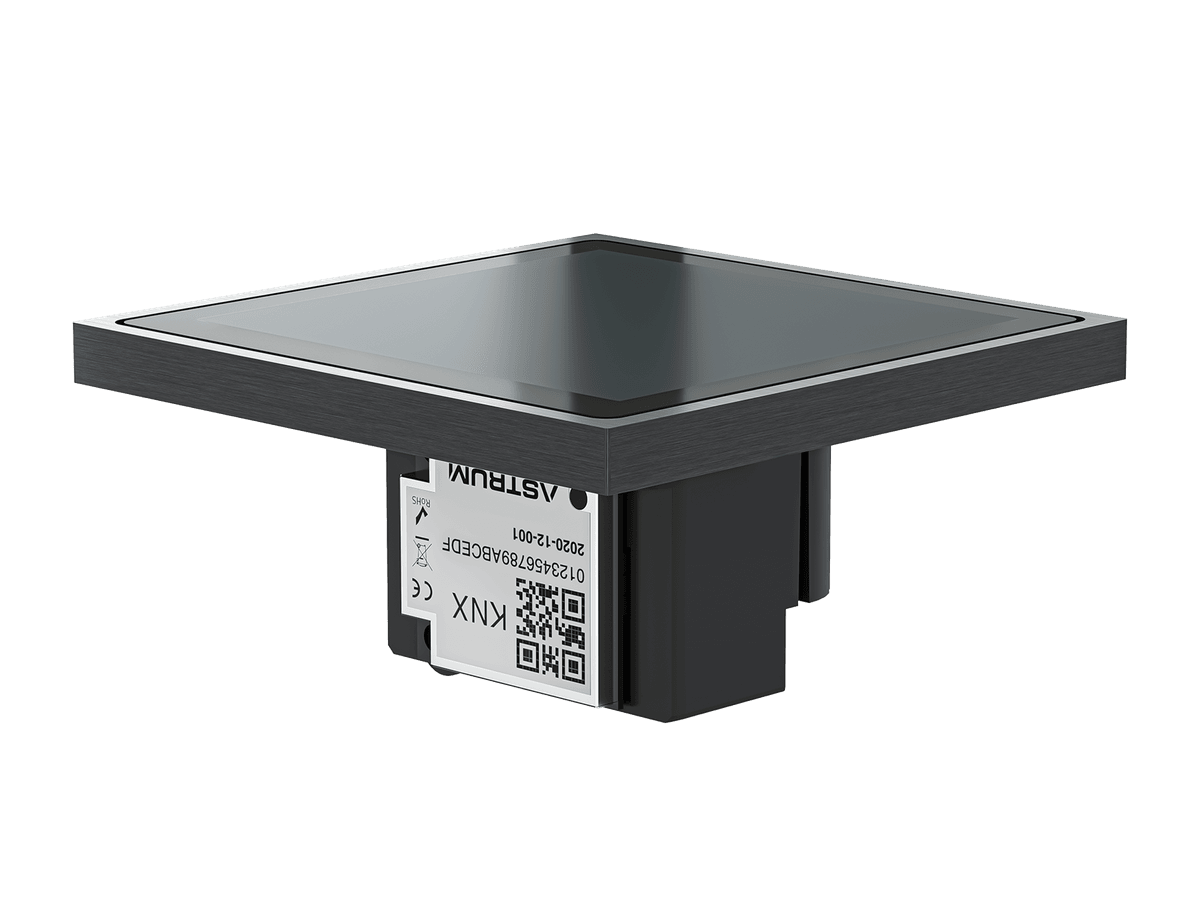

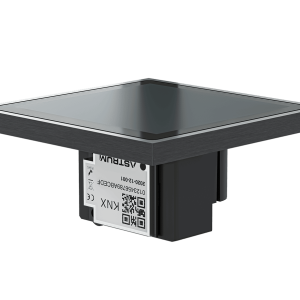

you will receive INS4SQ with A-KNX( KNX Add-On module).
