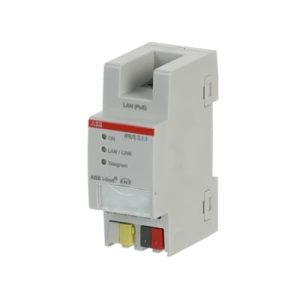

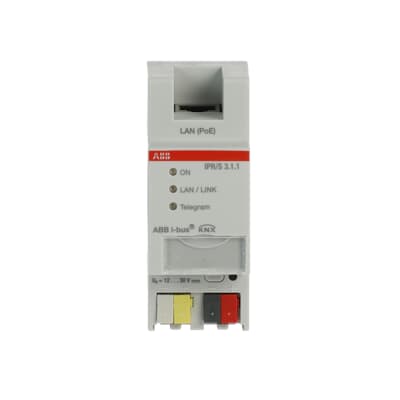

1. IPR/S3.1.1 KNX IP Router: Standard Connectivity and Tunneling

This router is a robust solution for integrating the KNX twisted pair system into an existing IP network.

Protocol and Access:

• Protocol: Uses the KNXnet/IP protocol for standard Routing (linking KNX lines/areas) and Tunneling (remote access/programming).
• Access Points: Provides 5 Tunneling Servers for simultaneous connections from ETS programming tools or visualization clients.
• Networking: Supports both fixed IP addressing and automatic allocation via DHCP server.
• Multicast Control: Allows the standard KNX Multicast communication to be disabled, enabling Unicast communication for up to 10 IPR/S 3.1.1 devices.

Topology and Power:

• Function: Operates as a fast line and area coupler with full filter table support (groups 0-31).
• Power Options: Accepts auxiliary power from 12 … 30 V DC or via PoE (IEEE 802.3af class 1).
• Power Loss: Extremely low power loss of 1.5 W.
