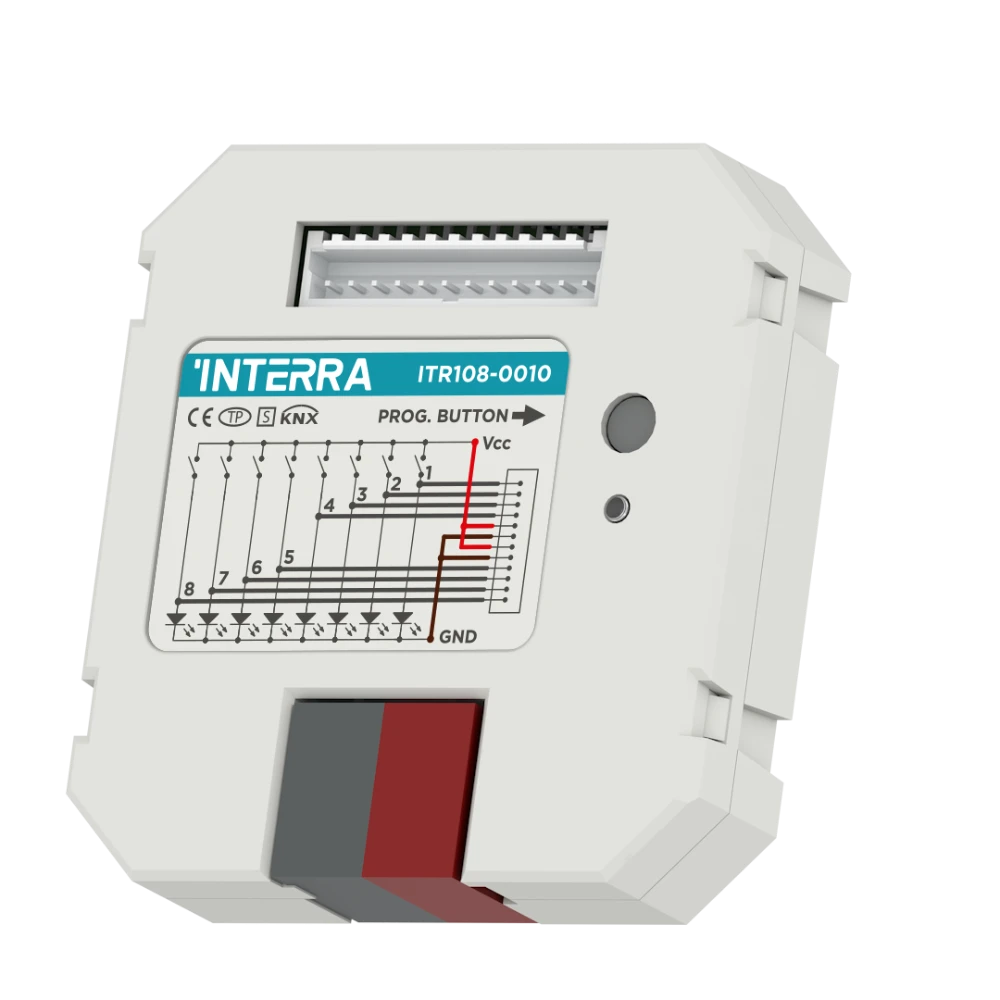

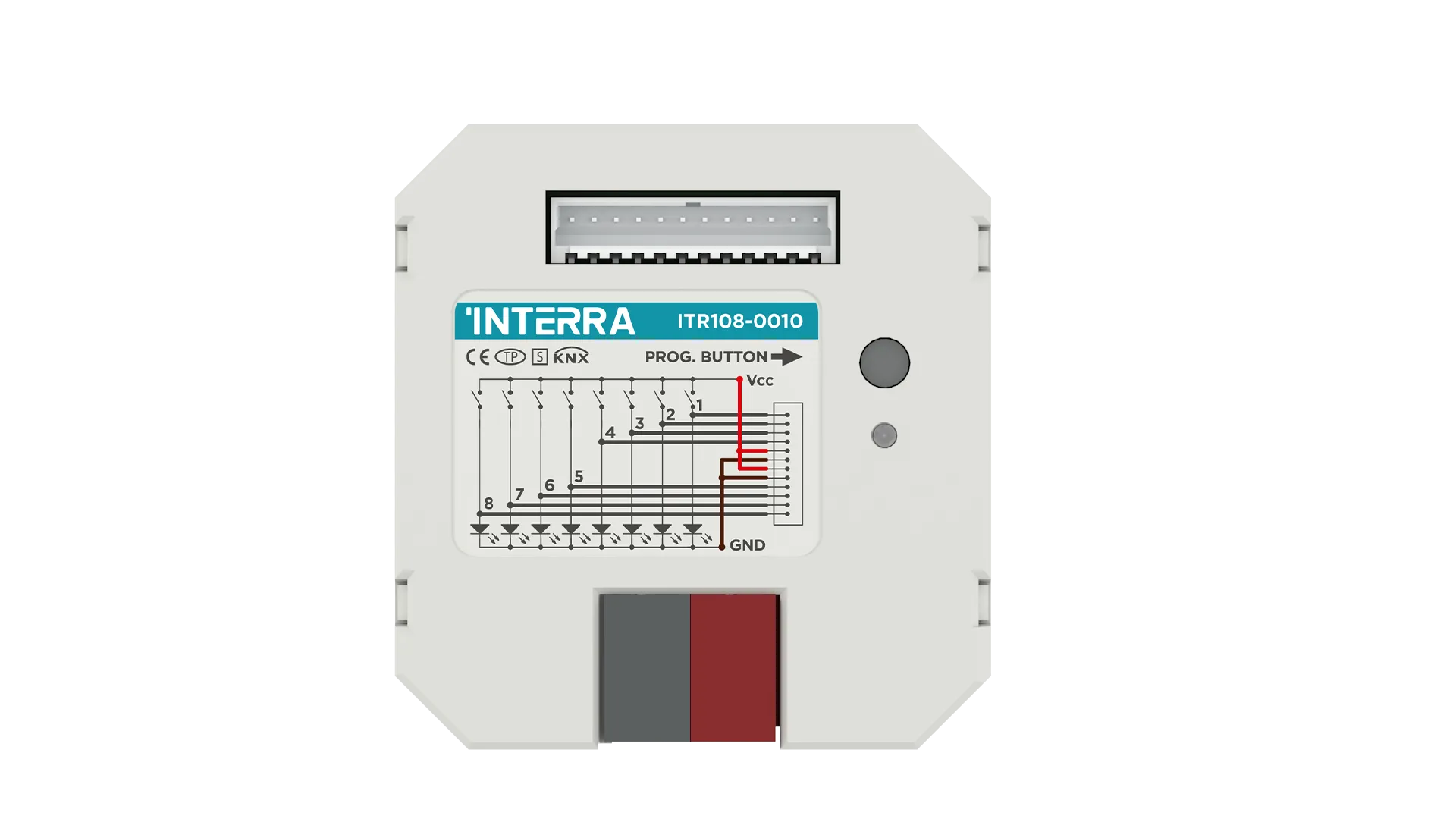

1. ITR108-0010 Interra Universal Interface: Max Input Density and Logic Functions
The highest channel count interface in the series, ensuring maximum adaptability and consolidation of control wiring.
Configuration and Flexibility:
- Channel Count: 8 independent channels (Binary Inputs).
- Input Compatibility: Interfaces with standard contacts like switches and push buttons.
- Configuration Tool: Requires ETS5 or higher for full configuration.
- Dual Input Use: Supports functions using two inputs (e.g., Dimming or Shutter/Blinds with 2 buttons), utilizing two of the eight available channels.
Available KNX Input Functions (Examples):
- Basic Control: Switch Sensor, Switch / Dimming Sensor, Shutter Sensor.
- Advanced Control: RGB Colour Control, RGBW Control, LED Control, Mode Selection.
- Scene & Sequence: Control Scene, Command Sequence.
Integrated Logic and Output Functions:
- Logic Capabilities: Includes configurable Internal Inputs (max. 4), External Inputs, Binary Value (adj. size), Movement, and Brightness logic.
- Output Types: Supports diverse outputs (max. 4 selectable) including Switch, Dim, Shutter, Alarm, Percentage, Scene Number, String, and Threshold.
2. System Integration and Benefits
The ITR108-0010 is essential for large-scale retrofitting projects and optimizing cabinet space in high-channel KNX systems.
- Retrofit Efficiency: Allows existing, non-KNX switches and sensors to be fully integrated into a modern KNX installation with minimal effort.
- Space Saving: Its 8-channel capacity minimizes the component count, simplifying wiring and optimizing space in the electrical distribution board.
