ITR112-0002 Interra KNX 12 Ch Analog Input Thermostat

ITR112-0002 Interra KNX 12 Ch Analog Input Thermostat

KNX System Components

Brand: INTERRA
In Stock

€95,00

SKU: ITR112-0002 Category: Tag: Brand:
Worldwide Shipping Fast delivery to project sites
Genuine KNX Products Authorized manufacturer stock
Technical Support Expert help for dealers & installs
Secure Payments Encrypted checkout & trusted methods

Description

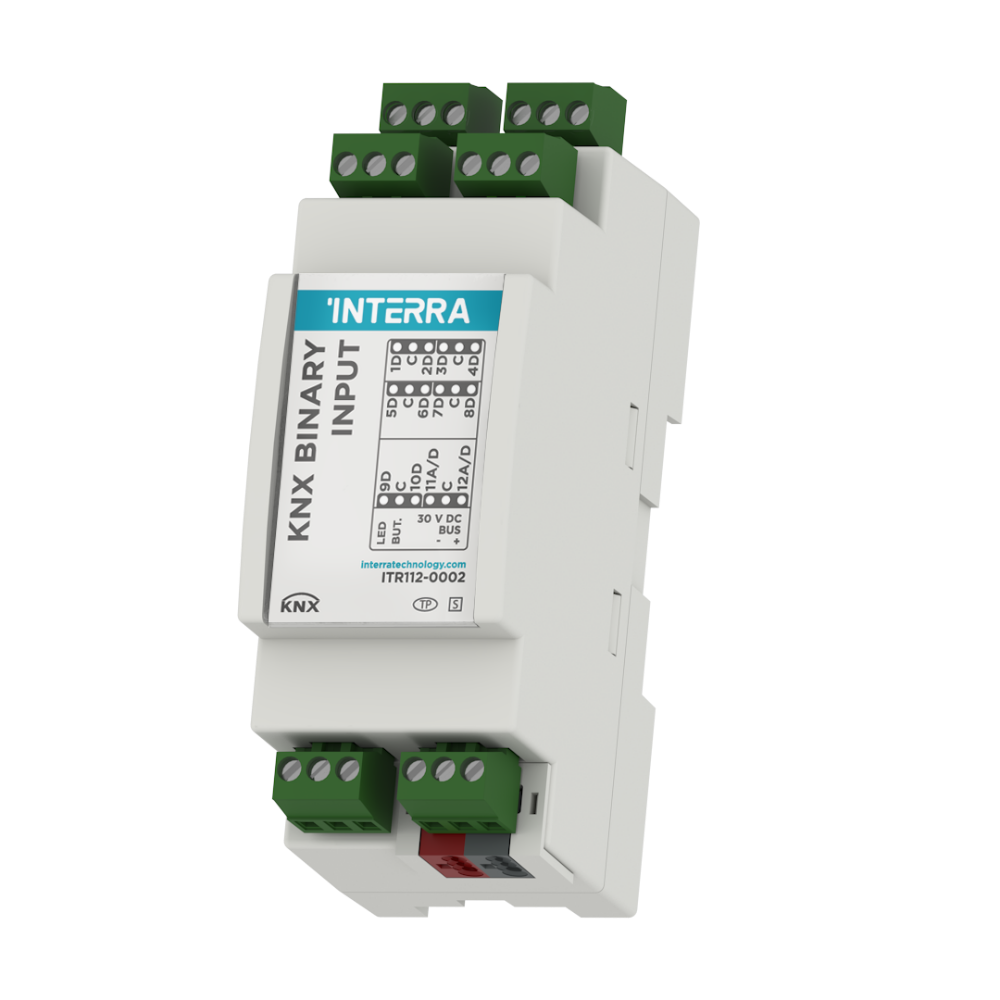

ITR112-0002 | Interra KNX 12-Channel Binary / Analog Input Module – 2x Thermostat

The Interra KNX 12-Channel Binary / Analog Input Module (ITR112-0002) is a high-density, multi-function interface module designed for complex KNX installations. It provides an impressive twelve channels that can be configured as binary (digital) or analog inputs, consolidating various control and sensing functions into a single component.This module excels at integrating a large number of conventional controls (like switches and push buttons) while also providing robust climate management. Its analog inputs are configurable as temperature probes to support the module’s two independent thermostat channels. Notably, each analog input can serve both thermostat channels, allowing for efficient use of temperature sensing across two zones.Configured using ETS5 or higher, the ITR112-0002 supports a vast array of functions, including the Thermostat Function itself, Switching, Dimming, Shutter, RGBW Control, Scene Recall, and Command Sequencing. Powerful Logic Functions and diverse output types further enhance its automation capabilities.

1. ITR112-0002 Interra Input Module: 12x Input, Dual Thermostat, and Counter

High channel density module for extensive input integration and basic climate control.

Multi-Function Configuration:

  • Product Code: ITR112-0002.
  • Channel Count: 12 channels independently selectable as Binary (Digital) or Analog Inputs.
  • Thermostat Control: Manages up to 2 independent thermostat channels.
  • Analog Input Feature: Analog inputs are configurable as temperature probes, with one probe able to serve both thermostat channels.
  • Additional Function: Includes a dedicated Counter function.

Available KNX Input and Logic Functions:

  • Control Functions: Thermostat Function, Switch Sensor, Switch / Dimming Sensor, Shutter Sensor.
  • Scene & Colour: Control Scene, RGB Colour Control, RGBW Control.
  • Logic Capabilities: Features 6 internal binary inputs, Movement, Temperature, and Brightness logic objects.
  • Output Types: Supports diverse outputs (max. 5 selectable) including Switch, Absolute Dim, Shutter, Alarm, Sequence, Scene Number, and Threshold.

2. System Integration and Space Efficiency

The ITR112-0002 is crucial for projects requiring many input points and efficient use of cabinet space.

  • Input Consolidation: Its 12 channels minimize the number of interfaces required in a distribution board.
  • Dual-Purpose Channels: Channels can handle both basic controls and detailed environmental sensing (temperature/brightness).

Interra ITR112-0002 KNX 12-Channel Binary Analog Input Module with 2 Thermostat function
