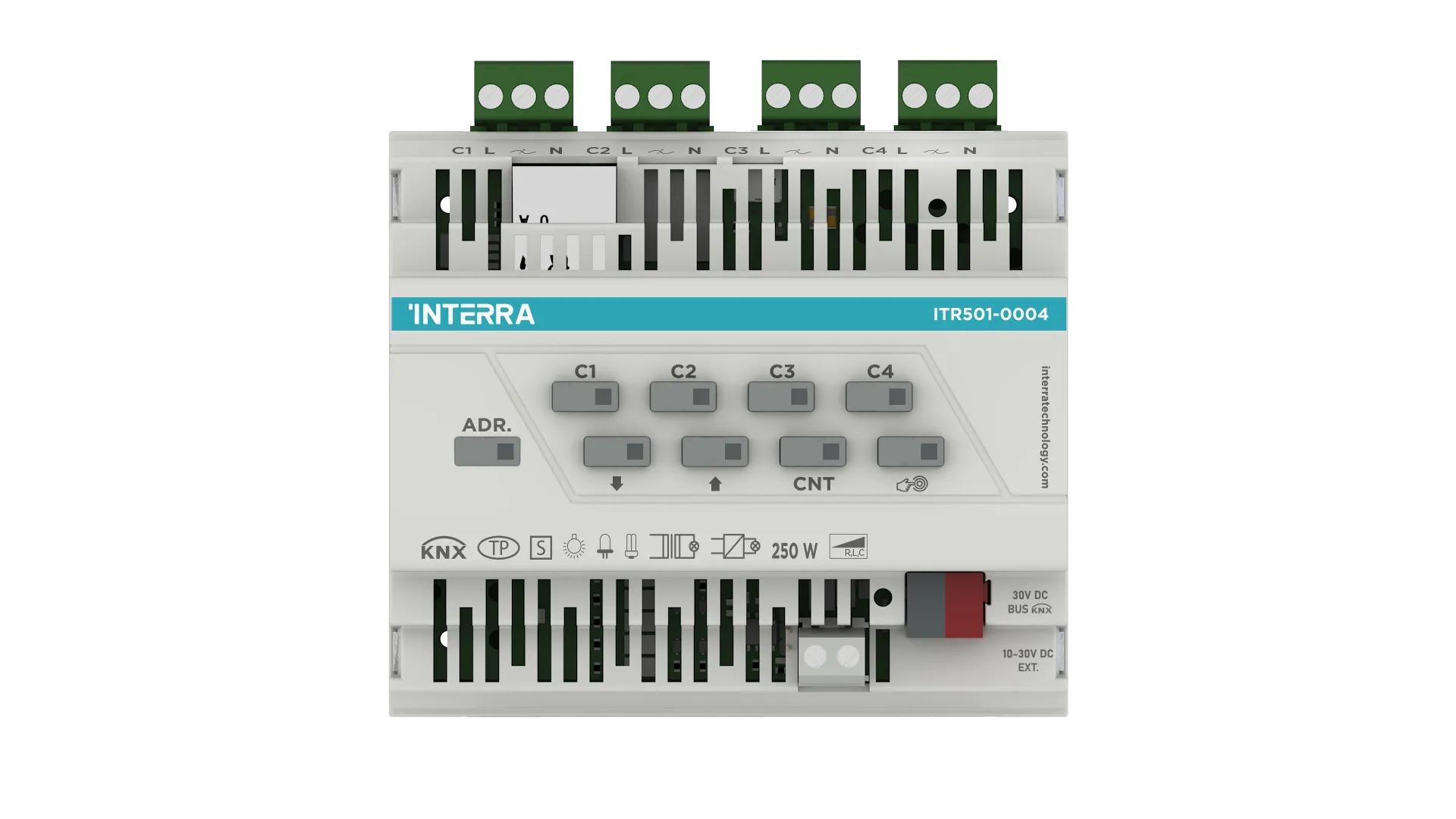

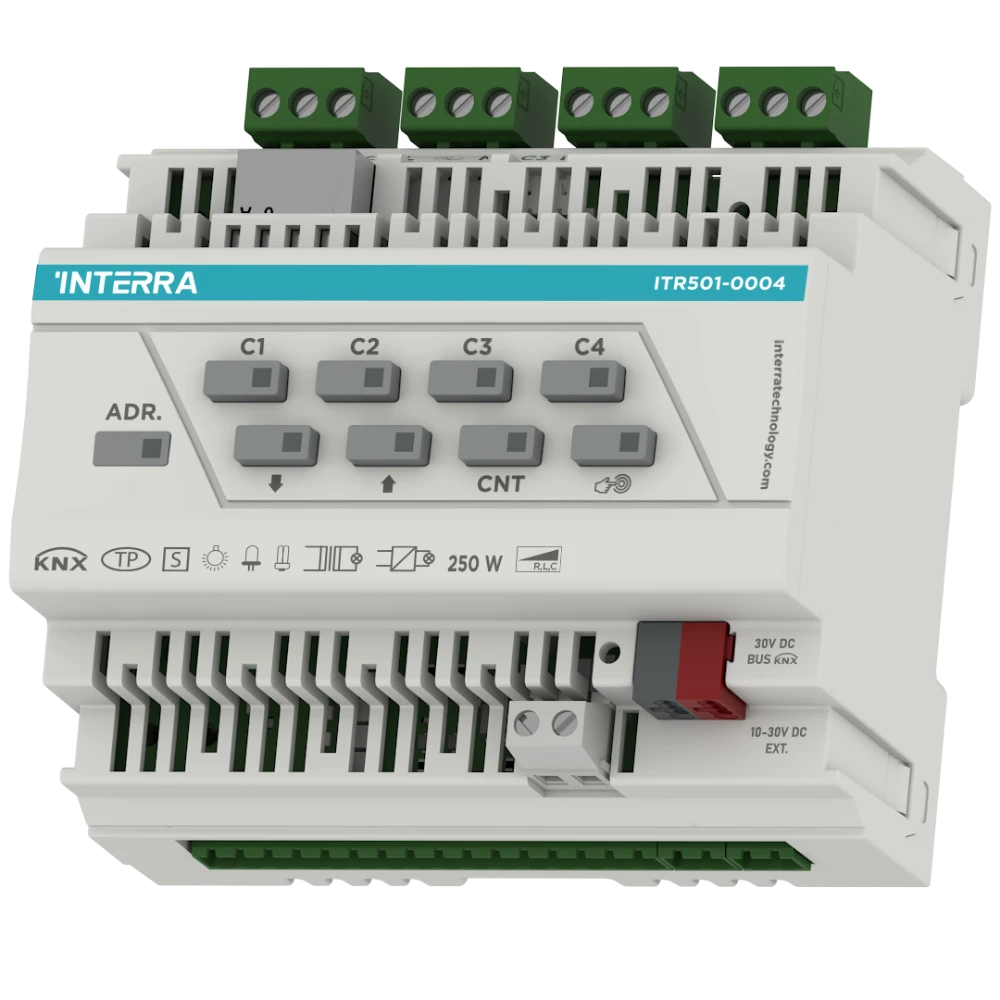

1. ITR501-0004 Interra Dimmer Actuator: High-Density Universal Load and Precision Control

A powerful, high-channel dimmer for flexible and comprehensive multi-zone lighting management.

Performance and Safety:

• Product Code: ITR501-0004.
• Channel Count: 4 independent dimming channels.
• Output Power: 250W per channel (max.).
• Universal Load Support: Drives R, L, and C loads with automatic load type detection via ETS configuration.
• Protection: Includes temperature protection and short circuit protection.
• Advanced Wiring: Supports operation with 3-phase systems using separate phase and neutral connections for each channel.

Advanced Dimming Control:

• Load Compatibility: Controls Incandescent, Halogen, Dimmable LED retrofit, and Dimmable Compact Fluorescent Lamps.
• Custom Dim Curve: Ability to divide the dim curve into 5 zones with separate dimming speed adjustments for each zone.
• Diagnostics: RGB LED status indicator and error notification for each channel.
• Convenience: Manual control over the device and ability to be programmed without 230 V supply.
