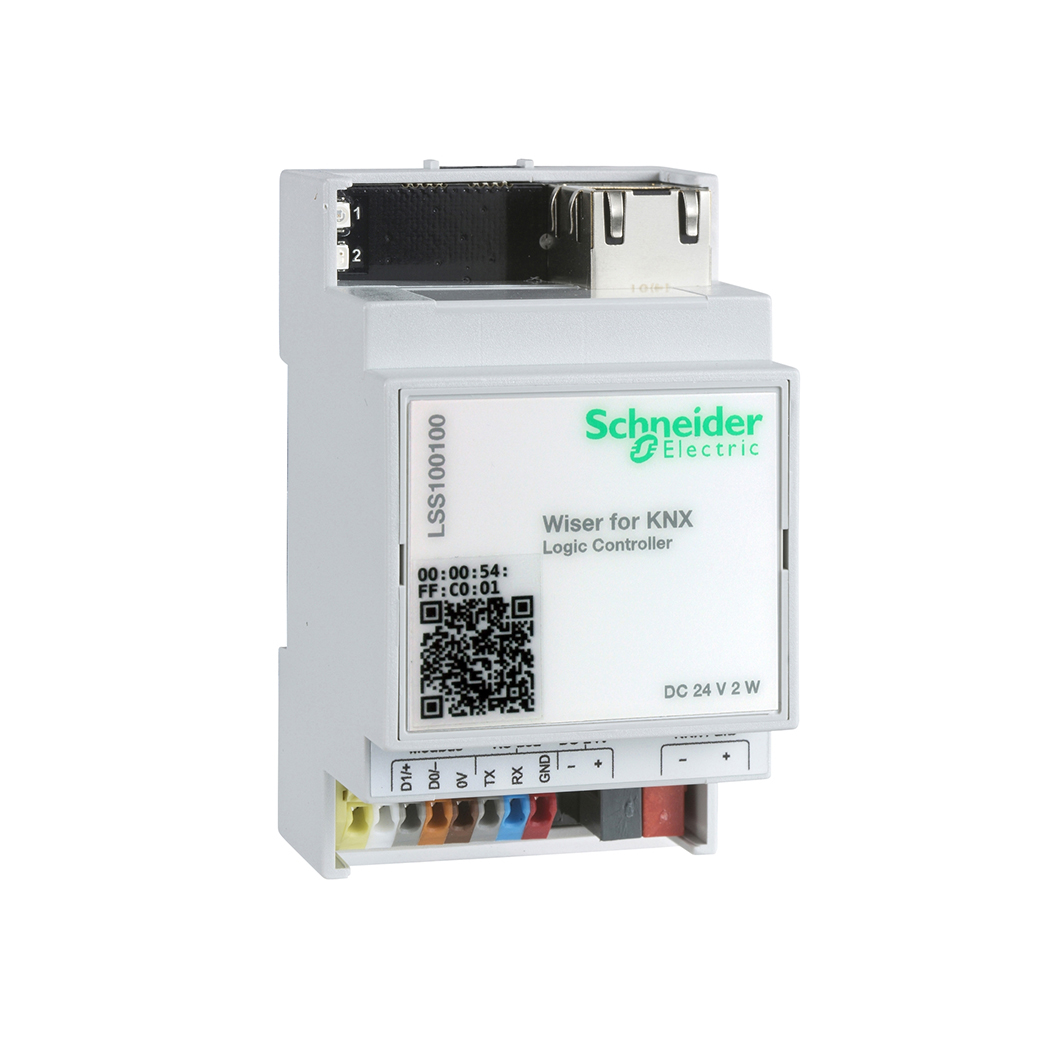

Wiser for KNX Logic Controller | LSS100100 (formerly homeLYnk)
Acting as a gateway, data logger, and event controller, the Wiser for KNX allows you to store and analyze data, send email alerts in case of system issues, and integrate third-party AV equipment via RS-232. This KNX logic controller from the Schneider Electric Wiser range is the central brain needed to transform a standard installation into a high-performance smart building.
1. LSS100100: The Multi-Protocol Automation Hub
A comprehensive 3-module DIN rail device designed for protocol translation, data aggregation, and user-centric visualization.
Core Applications & Logic:
- Advanced Visualization: WEB SCADA for PC, smartphones, and tablets. Visualizations can be generated automatically using EConfigure KNX Lite.
- Cross-Standard Gateway: Seamlessly translates data between KNX, Modbus RTU/TCP, and operates as a BACnet Server (150 points).
- Data Logging & Analytics: Stocks and analyzes system data (e.g., .csv files) with built-in trend logging for energy and usage monitoring.
- Event Management: Integrated logic functions and scheduling, with the ability to send automated email notifications based on system triggers.
Hardware & Connectivity:
- Multi-Port Interface: Equipped with 1x KNX, 1x Ethernet (10/100BaseTX), 1x RS-485 (Modbus), 1x RS-232 (Third-party integration), and 1x USB 2.0.
- Secure Access: Supports up to 8 unique user logins with individual passwords for tiered access control.
- Third-Party Integration: Connect easily with AV systems, IR controls, and camera streaming for a unified user interface.
- Low Power Consumption: Highly efficient design drawing only 2 W at 24 V DC.
2. Technical Specifications and Hardware Dimensions
Review the technical parameters for the LSS100100 to ensure proper cabinet integration and network planning.
| Feature | Specification Details |
|---|---|
| Product Reference | LSS100100 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2 W |
| BMS Protocols | KNX, Modbus RTU/TCP, BACnet (B-ASC certified) |
| Ethernet Port | 1x 10BaseT/100BaseTX |
| Storage/Export | Data logger with .csv export functionality |
| Dimensions | 90 x 52 x 58 mm (3 DIN Modules) |
