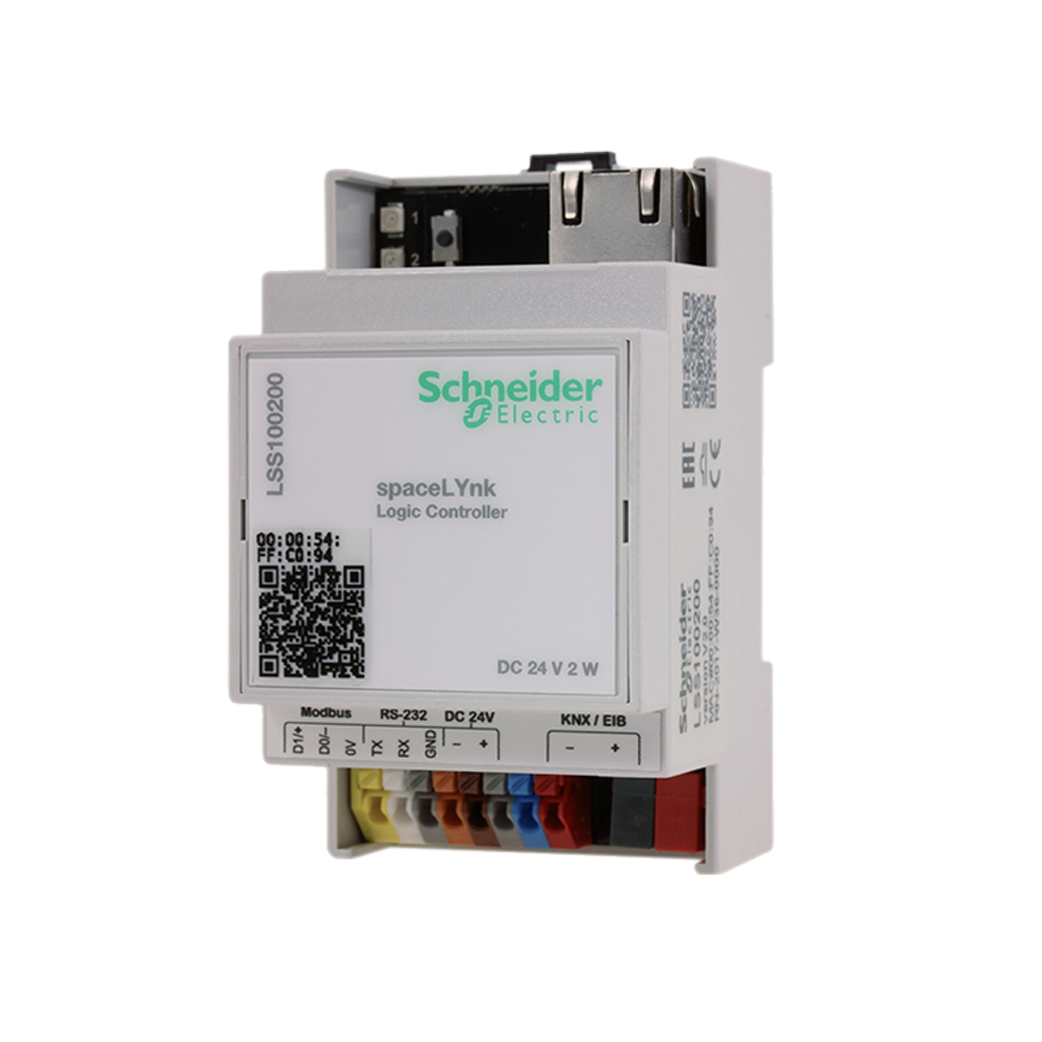

LSS100200 SpaceLYnk Logic Controller KNX Server
€1.115,00
In stock
SpaceLYnk Logic Controller | LSS100200 | Commercial Building Automation
As a powerful cross-standard gateway and data aggregator, the LSS100200 supports up to 500 BACnet points and allows up to 50 unique users. This makes it the ideal choice for corporate offices and high-tech facilities requiring localized WEB SCADA visualization and robust event management. This commercial logic controller from the Schneider Electric SpaceLogic range is the definitive tool for scaling your automation from simple room control to full-scale building management.
1. LSS100200: The Professional Choice for Commercial Integration
A multi-protocol power-house that enables communication between diverse systems while providing a high-end user interface.
Commercial Applications & BMS Logic:
- High-Capacity BACnet Server: Supports 500 points and is a certified BACnet Application Specific Controller (B-ASC).
- Multi-Protocol Gateway: Bridges KNX and Modbus RTU/TCP, with specialized support for DALI control and Boiler management (SSL).
- Advanced Visualization: Professional WEB SCADA for PC and touch devices, featuring an updated icon set and automatic smartphone optimization via EConfigure KNX Lite.
- Enterprise User Management: Secure access for up to 50 users with distinct login credentials and customized dashboards.
Technical Connectivity & Performance:
- Comprehensive Interfaces: Features 1x KNX, 1x Ethernet (10/100BaseTX), 1x RS-485 (Modbus), 1x RS-232 (AV integration), and 1x USB 2.0.
- Data Aggregator: Capable of stocking and analyzing complex data sets, with easy export of .csv files for energy reporting.
- Reliable Monitoring: Dual LED indicators for CPU load and operation status, ensuring the system health is visible at a glance.
- Energy Efficient: Industrial-grade performance with a minimal power consumption of only 2 W.
2. Technical Specifications and Network Parameters
Consult the technical details of the LSS100200 to plan your commercial building network architecture.
| Feature | Specification Details |
|---|---|
| Product Reference | LSS100200 |
| BACnet Points | 500 Points (Server) |
| User Capacity | Up to 50 Users |
| Supply Voltage | 24 V DC |
| Supported Networks | KNX, Modbus, DALI, BACnet, SSL |
| Logic Functions | Scheduling, Trends, Event/Email Control |
| Dimensions | 90 x 52 x 58 mm (3 DIN Modules) |
