M/IS05.1 KNX Mini PIR Lux Sensor: Multi-Function Ceiling Mount

The M/IS05.1 KNX Mini PIR Lux Sensor is a powerful, multi-function sensor designed for discreet, flush-mounted ceiling installation. It is a single device integrating a PIR sensor for motion, a Lux sensor for brightness, and a temperature sensor, making it a cornerstone for comprehensive room control.This sensor is highly intelligent, supporting 2-channel lighting control with automatic or semi-automatic modes, constant brightness control, and 5 independent logic blocks (each with 10 object outputs) that allow complex automation using AND or OR relations. Its compact size and 8m detection range (at 3m height) make the M/IS05.1 ideal for offices, hallways, and residential spaces.The sensor supports various control types, including Absolute Dimming, Scene Control, and Shutter Control, making it the perfect input device for actuators like the Universal Dimmer or Combo+ Actuator .

1. M/IS05.1 KNX Mini PIR Lux Sensor: Advanced Logic and Control

The M/IS05.1 offers extensive features far beyond simple motion detection, allowing for highly customized automation scenarios.

Integrated Sensors and Logic:

  • Integrated Functions: Combines PIR motion sensor, Lux sensor (brightness), and temperature sensor.
  • Logic Blocks: Features 5 independent logical blocks with settable AND, OR relations, allowing for complex multi-condition automation.
  • Control Outputs: Supports 2CH lighting control (with dimming and delay settings) and 2CH constant brightness control (with 4 pre-set dimming values).
  • Logic Inputs: Can use PIR status, brightness value, temperature, and external telegrams as logic inputs.
  • Working Modes: Supports both Single mode and Master / Slave mode for scalable installations.

2. Technical Details and Installation

Designed for discreet and reliable operation in commercial and residential settings.

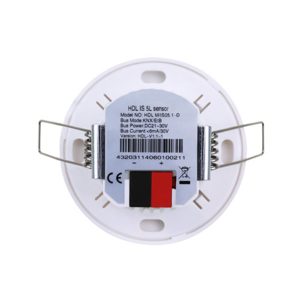

  • Installation: Designed for Ceiling-mounted/Flush-mounted installation (Dimensions: 63×46.6 mm, Net weight: 43g).
  • Detection Range: PIR detection range of 8m (optimal at 3m installation height).
  • Power: Low power consumption (5mA/30V DC) and operating voltage of 21~30V DC (KNX bus power).
  • Control Types Supported: Switch, Absolute dimming, Shutter, Alarm, Scene, Sequence, Threshold control, and more.

Flush-mounted M/IS05.1 KNX Mini PIR Lux Sensor in ceiling
