MTN6500-0103 SpaceLogic KNX IP Router
€340,00
In stock

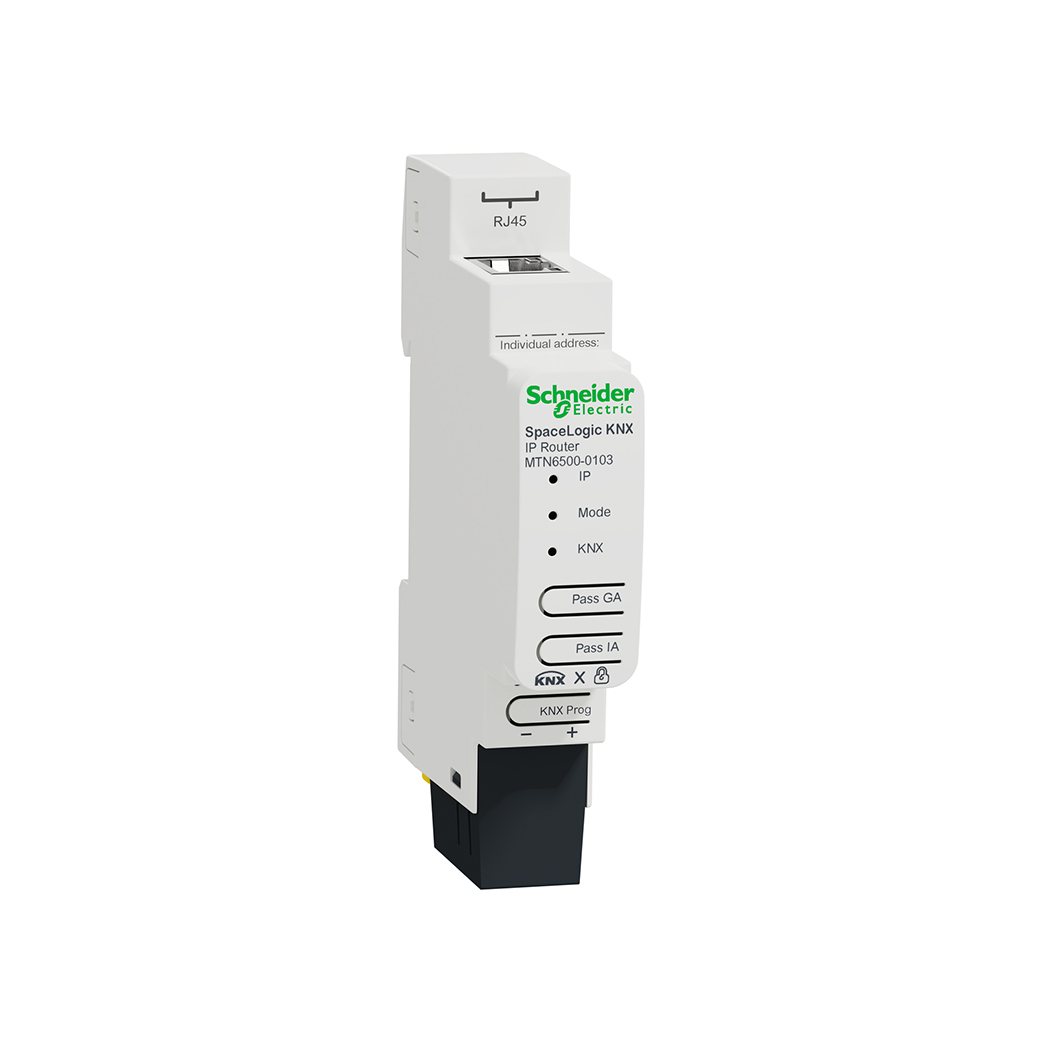

SpaceLogic KNX IP Router DIN Rail | MTN6500-0103
Equipped with KNX Security, this router allows for the secure coupling of non-secured TP communication onto a secured IP backbone. With support for up to 8 tunneling channels and an extended filter table, this KNX IP router from the Schneider Electric SpaceLogic range is a compact 1-module solution that requires no external power supply, drawing its energy directly from the KNX bus.
1. MTN6500-0103: The Secure High-Speed KNX Backbone
A mission-critical networking device that combines routing, tunneling, and diagnostic features into a single ultra-compact unit.
Core Networking & Intelligence:
- IP Routing & Tunneling: Facilitates fast telegram forwarding over IP while supporting up to 8 simultaneous tunneling connections for multiple ETS sessions or visualizations.
- KNX Secure Integration: Supports KNX IP Secure to prevent unauthorized access and ensure encrypted communication across the LAN.
- Advanced Filtering: Features an extended filter table for main groups 0 to 31 and an internal buffer for up to 150 telegrams to prevent data loss during peak traffic.
- Bus Powered: Simplifies installation by operating entirely on KNX bus power—no additional 24V power supply is required.
Technical Design & Versatility:
- Standard Compliance: Works according to KNXnet/IP specifications for Core, Device Management, Tunneling, and Routing.
- Flexible IP Addressing: Supports both DHCP server assignment and manual configuration via ETS for seamless network integration.
- Diagnostic Interface: Includes 2 integrated push-buttons for testing purposes and 3 status LEDs for real-time monitoring of power and communication.
- Slim Profile: Only 1 DIN module wide (18 mm), making it one of the most space-efficient IP routers on the market.
2. Technical Specifications and Application
Review the technical data for the MTN6500-0103 to ensure your IP backbone meets modern automation standards.
| Feature | Specification Details |
|---|---|
| Product Reference | MTN6500-0103 |
| Connection Type | RJ45 (Ethernet) to KNX TP |
| Tunneling Channels | Up to 8 simultaneous channels |
| Filter Table | Extended (Main Groups 0–31) |
| Security Standard | KNX IP Secure & Data Secure compatible |
| Power Consumption | Powered via KNX Bus |
| Software Requirement | ETS 5 or higher |
| Dimensions | 1 DIN Module (18 mm) |
