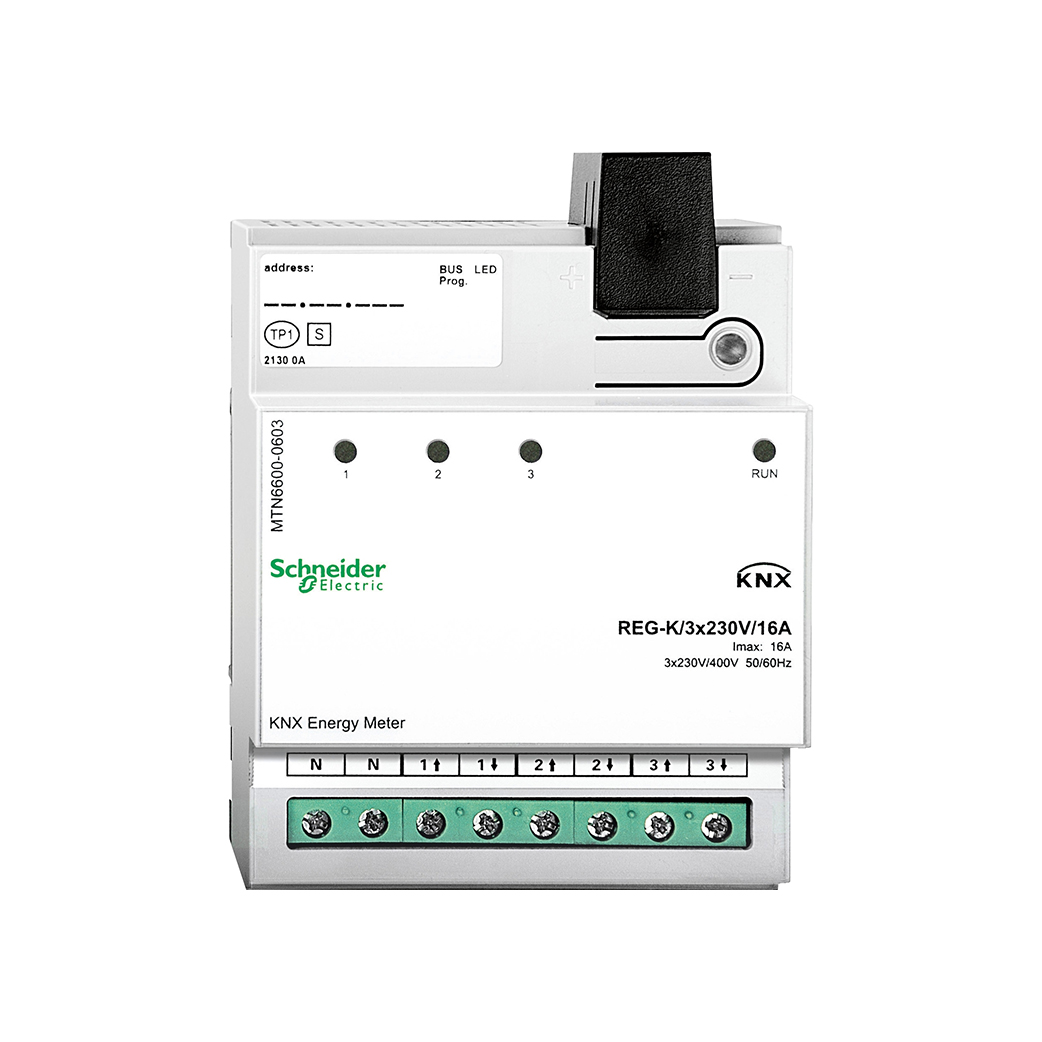

MTN6600-0603 Merten KNX Energy Meter 3-Channel 16A
27 people are viewing this product right now
€217,00
Shipping calculated at checkout.
In stock
Guarantee Safe and Secure Payment Checkout
MTN6600-0603 | Merten KNX Energy Meter, 3-Channel, 16 A, 230 VAC
1. MTN6600-0603 Merten KNX Energy Meter: Multi-Channel Monitoring and Logic
A high-accuracy, 3-channel energy meter with embedded energy-saving and summation logic for smart tariff management.
Measurement & Technical Data:
- Extended Product Type: MTN6600-0603.
- Channels: 3 (supports different phases).
- Max. Current per Channel: 16 A.
- Nominal Voltage: AC 220/230 V, 50/60 Hz (Adjustable 210-240 V).
- Active Energy Measurement: Class 1.
- Display/Unit: Adjustable energy unit (Wh/kWh).
- Capacity: Total power meter capacity > 2 million kWh.
- Storage: Saves values in the event of power failure.
KNX Software Functions:
- Threshold Control: 8 separately adjustable threshold values with tolerance and delays for energy-saving and alarm functions.
- Energy Saving: Sends KNX telegrams (switch, dimming, scene, etc.) when thresholds are exceeded.
- Summation: Summation of energy values from its channels and external energy values received via the bus.
- Tariff Management: 4 energy counters to count separately depending on the tariff.
- Time Stamping: Consumption values include time stamp (receivable via external KNX timer).
2. Design and Installation
- Mounting Type: DIN-Rail TH35 (according to EN 60715).
- Device Width: 4 modular spacings (approx. 72 mm).
- Connection: Screw terminals.
- IP Protection Rating: IP 20.
- Temperature Range: -5°C to +45°C.
- Colour: Light grey.
