MTN6710-0102S KNX Secure Dimming Master
€252,00
In stock

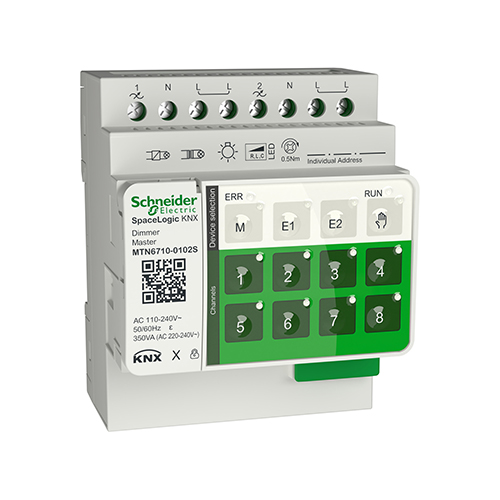

MTN6710-0102S | Schneider Electric SpaceLogic KNX Secure Dimming Master
This 2-channel master unit features the innovative SpaceLogic modular concept, allowing for seamless expansion. Whether you are dimming modern LED lamps or traditional halogen bulbs, this KNX dimming actuator offers standardized sizing and a “prefab link” for rapid, error-free installation. Experience advanced SpaceLogic KNX performance with the added peace of mind that only high-level data encryption can provide.
1. MTN6710-0102S KNX Secure Master: Maximum Protection & Versatility
A sophisticated dimming solution that combines high-performance power handling with the industry’s highest security standards.
Advanced Security & Software:
- KNX Secure Certification: Built-in KNX Data Secure capabilities ensure data privacy and system integrity through encrypted communication.
- Modular Master-Extension: Standardized module sizes and prefab links allow the master to connect with Dimming, Switch, or Blind extensions.
- Commissioning Flexibility: Fully compatible with ETS (including ETS Express) and eConfigure software for rapid project delivery.
Load Management & Performance:
- Universal Control: Two independent outputs for dimmable LED, incandescent, HV/LV halogen, and dimmable compact fluorescent lamps.
- Dynamic Dimming Modes: Supports RC mode (Trailing-edge, 2x200W) and RL mode (Leading-edge, 2x60W) to match specific lamp requirements.
- Manual Override: Front-facing push-buttons allow for direct manual operation of each output during commissioning or maintenance.
- Voltage Adaptability: Nominal operational voltage of 110-240V AC, supporting global electrical standards.
2. Technical Build and Integration
The MTN6710-0102S KNX Secure Master is designed for high-density DIN rail mounting with robust electrical specs.
| Feature | Specification |
|---|---|
| Channels | 2 Independent Universal Outputs |
| Data Security | Certified KNX Secure / Data Secure |
| Current Consumption | KNX Bus 5 mA |
| Mounting Type | DIN Rail (TH35 according to EN 60715) |
| Protection Rating | IP20 |
| Color | White (SpaceLogic Design) |
