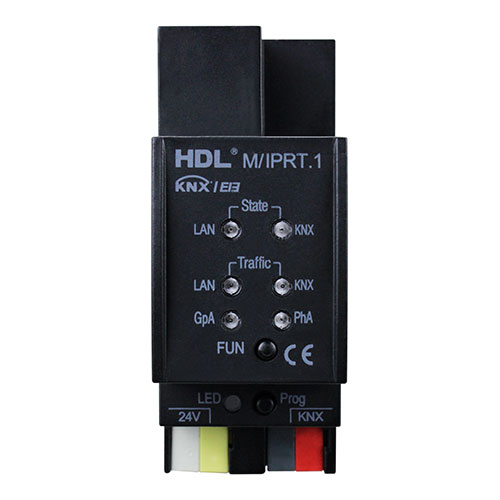

M/IPRT.1 KNX net/IP Router

KNX Gateway

Brand: HDL
In Stock

€579,31

SKU: HDL-M/IPRT.1 Category: Tag: Brand:
Worldwide Shipping Fast delivery to project sites
Genuine KNX Products Authorized manufacturer stock
Technical Support Expert help for dealers & installs
Secure Payments Encrypted checkout & trusted methods

Description

M/IPRT.1 KNX net/IP Router: High-Speed KNX IP & TP1 Gateway

The M/IPRT.1 KNX net/IP Router is a crucial component for modern KNX networks, enabling rapid and reliable data exchange between the KNX net/IP line (via LAN) and the KNX TP1 bus. This DIN-Rail mounted device is essential for creating large, segmented KNX installations and for providing high-speed access for commissioning and diagnostics.The router supports both data download and data monitoring via the ETS software, acting as a programming and diagnostic interface. It features fast data caching and reliable data delivery with validation, ensuring system stability.A key feature of the M/IPRT.1 is its ability to temporarily stop data filtering via a function key, a useful tool for troubleshooting, with filtering automatically resuming after a preset time. With support for up to 4 channels for data debugging, this router is the reliable link between the IT network and the traditional KNX bus.

1. M/IPRT.1 KNX net/IP Router: Diagnostic and Communication Features

The M/IPRT.1 is designed to be a high-performance communication hub for complex KNX networks.

Networking and Performance:

  • Protocol Conversion: Facilitates fast telegram data exchange between the high-speed KNX net/IP protocol (via LAN) and the traditional KNX TP1 bus.
  • Data Integrity: Ensures reliable data transfer with Fast data caching and built-in delivery and validation mechanisms.
  • ETS Support: Enables data download and data monitoring directly via ETS software for efficient commissioning.
  • Monitoring Channels: Supports up to 4 channels for data debugging and monitoring for ETS or other monitoring devices.

Diagnostic and Safety:

  • Filtering Control: A dedicated function key can temporarily stop data filtering to aid troubleshooting; filtering automatically restores after a preset time.
  • Status Indication: 6 dual-color LED lights provide clear indication of all current communication statuses.

2. Technical Details and Installation

A compact, DIN-Rail mounted device requiring minimal power.

  • Installation: Compact 2SU (36mm) width designed for 35mm DIN rail installation.
  • Power: Low power consumption (typ. 520mW, max. 800mW) and powered by the KNX bus (21~30V DC).
  • Housing: Made from durable ABS material.

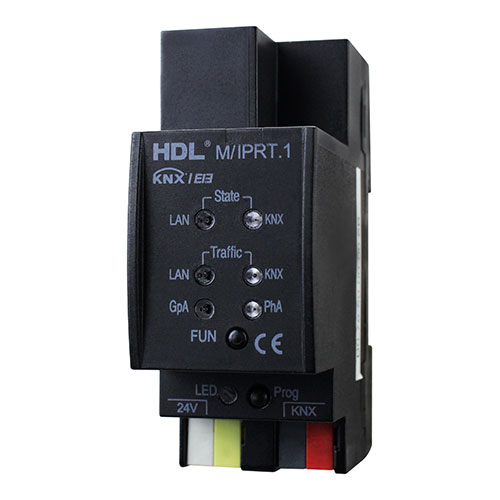

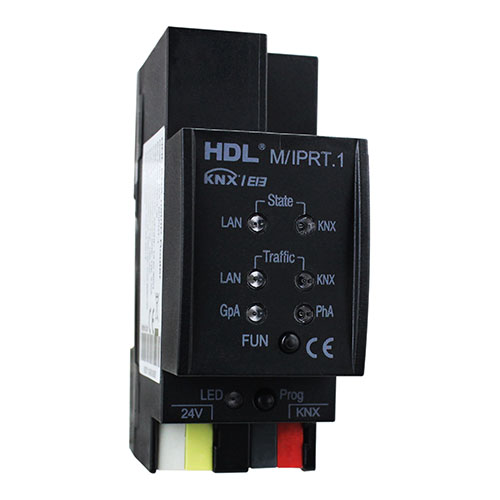

DIN-Rail M/IPRT.1 KNX net/IP Router
