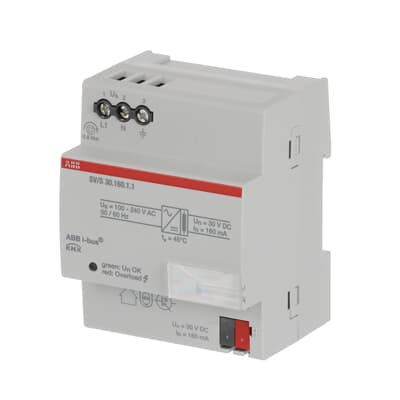

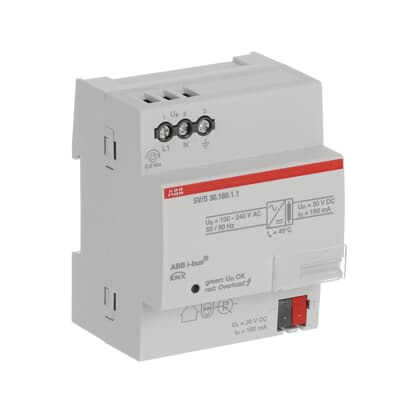

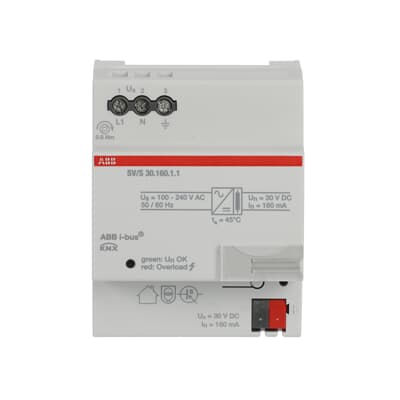

SV/S 30.160.1.1 KNX Power Supply 160 mA
SV/S 30.160.1.1 KNX Power Supply 160 mA
SV/S 30.160.1.1 KNX Power Supply 160 mA

SV/S 30.160.1.1 KNX Power Supply 160 mA

KNX System Components

Brand: ABB
In Stock

€146,00

SKU: SV/S30.160.1.1 Category: Tag: Brand:
Worldwide Shipping Fast delivery to project sites
Genuine KNX Products Authorized manufacturer stock
Technical Support Expert help for dealers & installs
Secure Payments Encrypted checkout & trusted methods

Description

SV/S 30.160.1.1 KNX Power Supply 160 mA: SELV with Integrated Choke

The SV/S 30.160.1.1 KNX Power Supply 160 mA is an essential DIN-Rail component (MDRC) responsible for generating and monitoring the KNX system voltage (SELV). Providing a stable 30 V DC output, this unit is rated for a maximum output current of 160 mA, making it suitable for powering small to medium KNX lines or segments.A crucial safety and functional feature is the integrated choke, which ensures the bus line is properly decoupled from the power supply, enabling reliable data communication. The device is built with robust protection, featuring short-circuit and overload protected output, and utilizes a wide range input (85…265 V AC) for global compatibility.The operational status of the SV/S 30.160.1.1 is clearly communicated via a two-color LED indicator, allowing for quick visual verification of the line status.

1. SV/S 30.160.1.1 KNX Power Supply 160 mA: Reliability and Safety

The power supply provides foundational reliability for the entire KNX installation.

Power and Line Integrity:

  • Output Current: Provides a stable 160 mA maximum output current at 30 V DC.
  • Decoupling: Features one integrated choke to decouple the KNX bus line, a prerequisite for KNX communication.
  • Safety: Output voltage is short-circuit and overload protected to prevent system damage.
  • Input Range: Supports a flexible wide range input from 85…265 V AC (50/60 Hz).

Monitoring and Standards:

  • Status Indication: Two-color LED clearly indicates the device output and communication status.
  • Classification: Generates Safety Extra-Low Voltage (SELV) as required by the KNX standard.

2. Technical Details and Installation

Designed for compact and secure integration into standard distribution boards.

  • Installation: Designed for professional DIN-Rail mounting.
  • Dimensions: Occupies 4 modular spacings (72 mm width, 90 mm height).
  • Power Loss: Low power loss of 4.4 W.
  • System Requirement: Essential for powering every KNX segment, working with devices like a KNX/IP Router .

DIN-Rail SV/S 30.160.1.1 KNX Power Supply 160 mA
