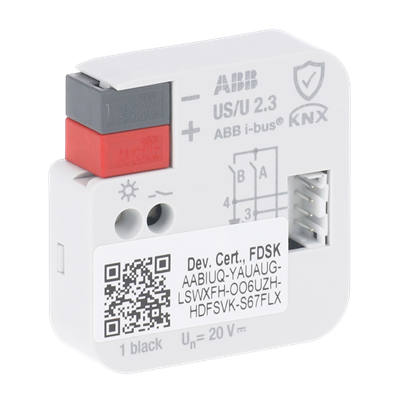

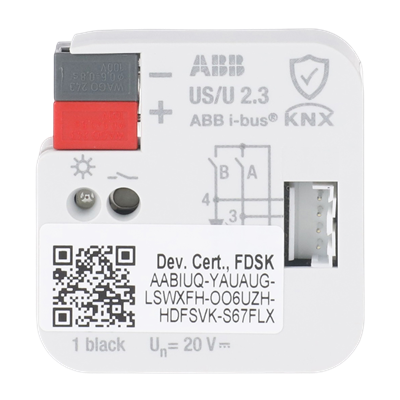

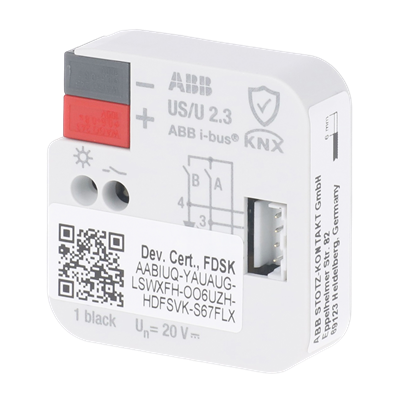

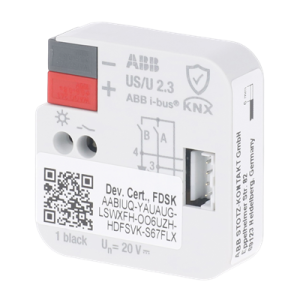

US/U2.3 Universal Interface 2-fold
€51,00
In stock
US/U2.3 Universal Interface 2-fold: Flush-Mounted, Secure Push-Button & LED Integration
This Universal Interface is designed for modern requirements, supporting the KNX Data Secure standard to encrypt communication and enhance system integrity. Its small form factor makes it ideal for discreet installation directly behind switches or in flush-mounted boxes.
The US/U2.3 also provides capability for handling analog signals (0–10 V / 4–20 mA), further expanding its versatility beyond simple switching applications while maintaining a very low power loss of 0.25 W.
1. US/U2.3 Universal Interface 2-fold: Flexibility and Security
Engineered for simple integration and robust communication within the KNX system.
Functionality and Configuration:
- Channel Configuration: 2 independent channels that can be set as inputs (for auxiliary contacts, push-buttons) or outputs (for LEDs).
- Conventional Integration: Ideal for connecting standard push-buttons, switches, and pilot LEDs to the KNX bus.
- Analog Capability: Capable of handling analog input signals such as 0–10 V or 4–20 mA from various sensors.
- Security: Supports the KNX Data Secure standard for secure telegram transmission.
Installation and Power:
- Installation: Designed for Flush Mounted (FM) installation, ensuring discretion and space saving.
- Dimensions: Very compact (39 mm H x 40 mm L x 12 mm W).
- Low Power: Extremely low power loss of just 0.25 W.
2. Technical Details and System Integration
This interface acts as a vital bridge between the physical controls and the KNX automation system.
- Input Voltage: Pulsed 20 V.
- Output Voltage (LED): 3.3 V DC (max 5 mA).
- Pairing: The push-buttons connected to this interface typically control a KNX Switch Actuator or a KNX Dimmer Actuator (Internal Links).
