WEINZIERL Push Button 436, 24V

Description

Introduction

The WEINZIERL Push Button 436 24V is a push button insert designed for direct connection to push button inputs, such as those used on smart home control panels, PLC controls, or push button interfaces of bus systems.

It belongs to the WEINZIERL MATCH 55 push button series and is intended for installations where a clean, standardized wall-mounted push button solution is required. With the supplied installation kit, the insert fits mechanically into numerous switch series available on the market with internal dimensions of 55 mm.

For related wall control products, you can also browse the KNX panel category or view more WEINZIERL products available from KNX Bazzar.

Key Features

• Push button insert for direct connection to push button inputs.
• Suitable for use with smart home control panels, PLC controls, or push button interfaces of bus systems.
• Part of the WEINZIERL MATCH 55 push button series.
• Supplied installation kit for mechanical fitting into many switch series with 55 mm internal dimensions.
• Optional terminal block enables screwless cable connection with cable cross sections up to 0.75 mm².
• Insert with standardized PTM form factor.
• Wall mounting plate dimensions: 71 x 71 mm.
• Designed for flush box 68 mm.
• Rockers are available for standard frames with internal dimensions of 55 x 55 mm.

Benefits

This push button insert gives system integrators and installers a practical way to implement physical wall control points where the input side is already provided by a controller, PLC, or bus interface. Instead of relying on a proprietary front-end format, it uses the MATCH 55 concept to support mechanical integration with a wide range of market-available switch series.

The availability of an installation kit and optional screwless terminal block helps simplify on-site wiring and mechanical assembly. The standardized PTM form factor also supports a consistent installation approach across compatible MATCH 55 configurations.

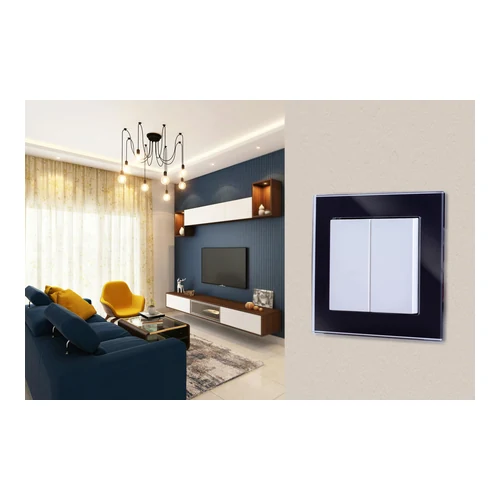

For interior projects where appearance matters, the MATCH 55 range supports a black-and-white design language with a modern minimalist character. WEINZIERL also lists Fusion frame and rocker options for MATCH 55 in white glossy, black matt, and glass frame variants.

Technical Specifications

Manufacturer	WEINZIERL
Product model	Push Button 436, 24V
Product type	Push button insert
Series	MATCH 55 push button series
Connection purpose	Direct connection to push button inputs
Example input devices	Smart home control panels, PLC controls, push button interfaces of bus systems
Installation kit	Supplied
Mechanical fit	Numerous switch series with internal dimensions of 55 mm
Optional terminal block	Screwless connection of cables with cross section up to 0.75 mm²
Form factor	Standardized PTM form factor
Wall mounting plate dimensions	71 x 71 mm
Flush box	68 mm
Rocker compatibility	Rockers for standard frames with internal dimensions 55 x 55 mm

Applications

• Wall-mounted push button input points for smart home control panels.
• Push button operation connected to PLC control inputs.
• Input integration with push button interfaces of bus systems.
• MATCH 55 wall control installations using compatible 55 mm frame systems.
• Minimalist black-and-white interior control points using listed MATCH 55 frame and rocker combinations.

Installation Notes

The device is supplied with an installation kit and is mechanically suitable for numerous switch series available on the market with internal dimensions of 55 mm. The wall mounting plate dimensions are 71 x 71 mm, and the insert is intended for a 68 mm flush box.

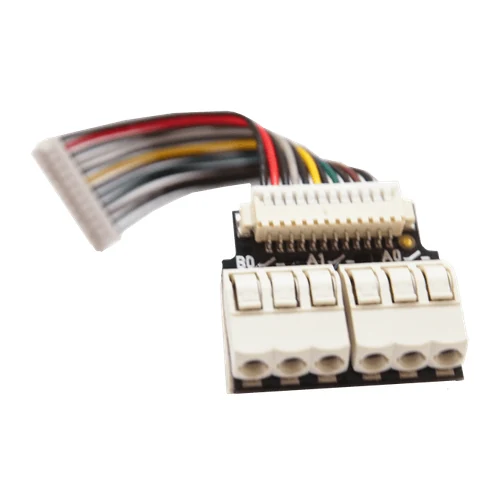

WEINZIERL states that an optional terminal block enables screwless connection of cables with a cross section of up to 0.75 mm².

MATCH 55 Frame and Rocker Information

WEINZIERL offers single frames from the Fusion design series in two colors and two materials, including real glass. Fusion is a frame design of the brand Opus® by Jäger Direkt, Germany. For multiple frames or alternative colors, WEINZIERL refers customers to Jäger Direkt / Jäger Fischer GmbH & Co. KG.

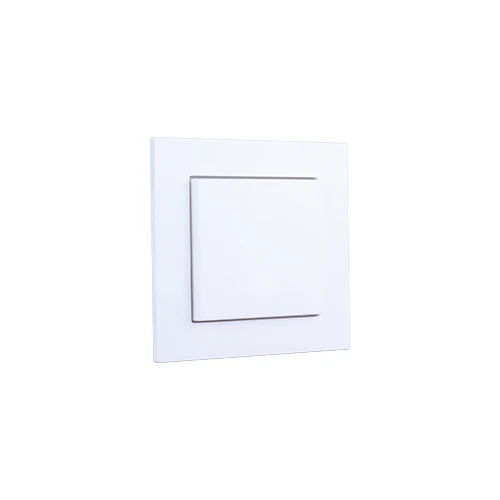

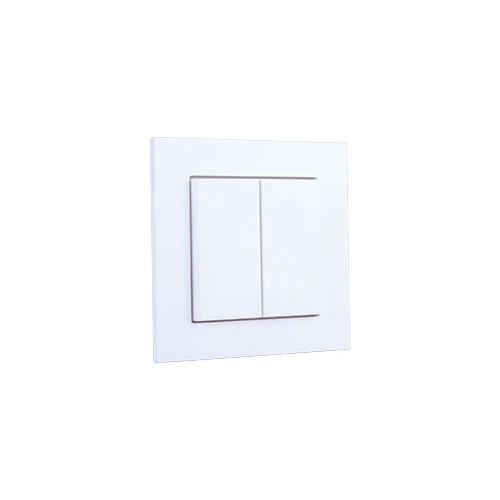

• Frame Fusion for MATCH 55 white glossy: Art. no. 5386
• Rockers for MATCH 55 white glossy: 1-Fold Art. no. 5511, 2-Fold Art. no. 5512

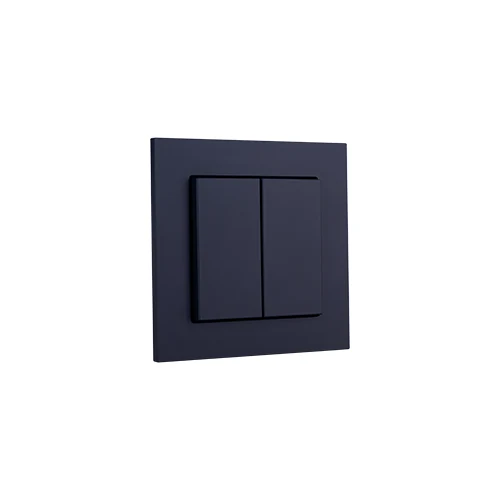

• Frame Fusion for MATCH 55 black matt: Art. no. 5525
• Rockers for MATCH 55 black matt: 1-Fold Art. no. 5517, 2-Fold Art. no. 5518

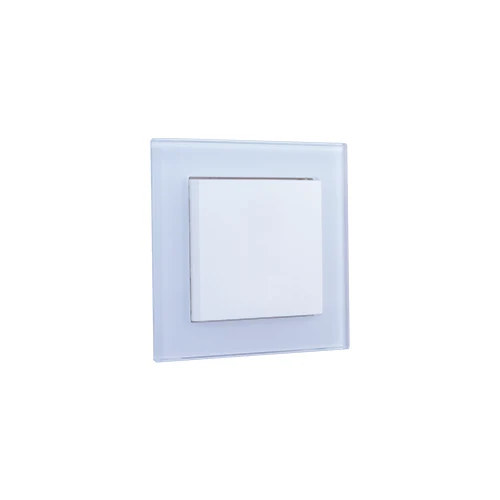

• Glass Frame Fusion for MATCH 55 white glossy: Art. no. 5388
• Rockers for MATCH 55 white glossy: 1-Fold Art. no. 5511, 2-Fold Art. no. 5512
• Glasrahmen Fusion für MATCH 55 black glossy: Art. no. 5389
• Rockers for MATCH 55 white glossy: 1-Fold Art. no. 5511, 2-Fold Art. no. 5512

Manufacturer product information is available at the WEINZIERL product page.

FAQ

What is the WEINZIERL Push Button 436, 24V used for?

It is a push button insert for direct connection to push button inputs, including inputs on smart home control panels, PLC controls, or push button interfaces of bus systems.

Is this device part of a specific WEINZIERL push button range?

Yes. The device is part of the WEINZIERL MATCH 55 push button series.

Which switch frame size is supported mechanically?

With the supplied installation kit, the push button fits mechanically to numerous switch series available on the market with internal dimensions of 55 mm.

Does WEINZIERL mention a screwless wiring option?

Yes. An optional terminal block enables screwless connection of cables with a cross section of up to 0.75 mm².

What are the wall mounting plate dimensions?

The wall mounting plate dimensions are 71 x 71 mm, and the product information states it is for a 68 mm flush box.

Are MATCH 55 frames and rockers available?

Yes. WEINZIERL lists Fusion frames and rockers for MATCH 55 in options such as white glossy, black matt, and glass frame versions.

Conclusion

The WEINZIERL Push Button 436, 24V is a compact MATCH 55 push button insert for projects that require direct connection to push button inputs on control panels, PLC controls, or bus-system input interfaces. Its supplied installation kit, 55 mm mechanical integration concept, standardized PTM form factor, and optional screwless terminal block make it a practical choice for professional wall control installations.
