ABB BE/M4.12.1 Binary Input Module, 4-fold, Contact Scanning

Description

Introduction

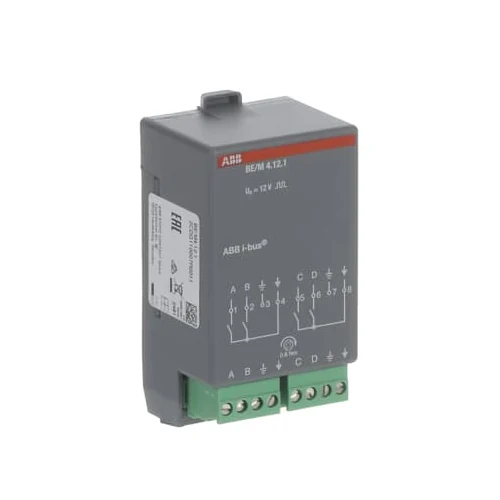

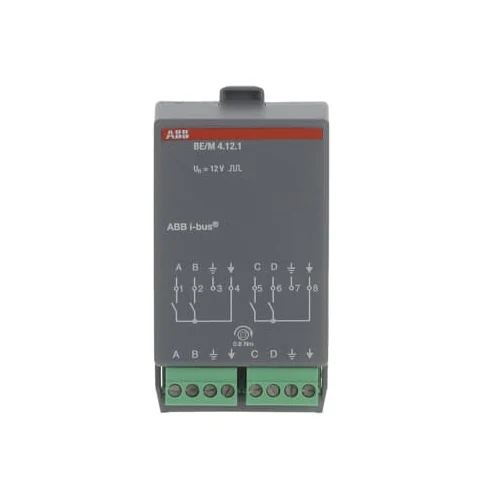

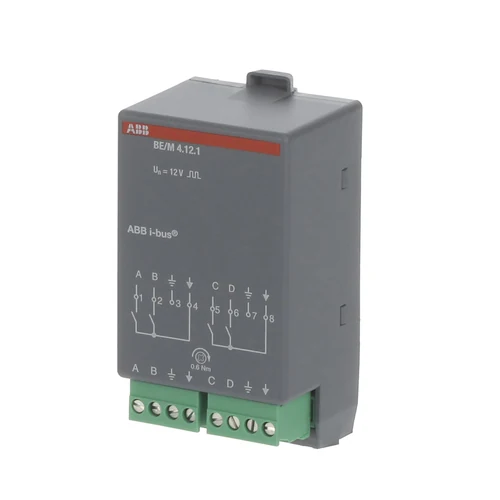

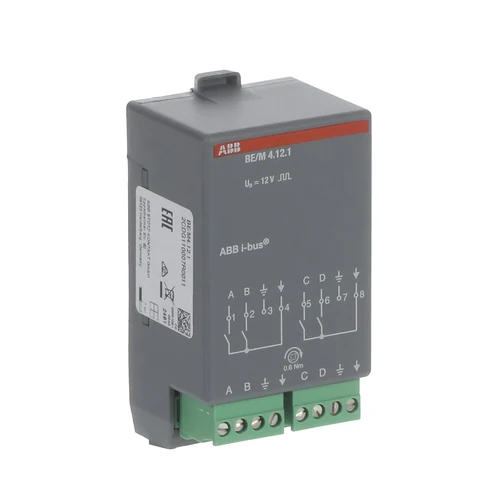

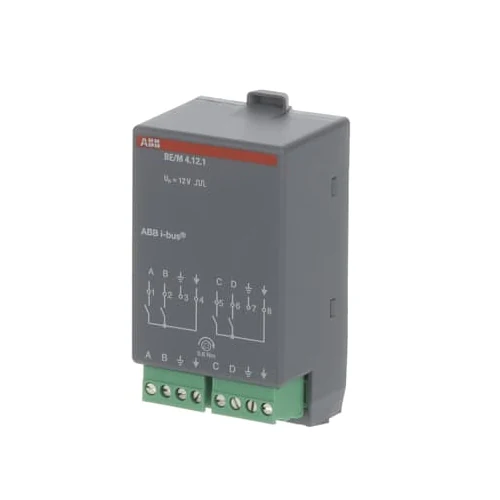

ABB BE/M4.12.1 is a 4-fold binary input module for contact scanning. It is designed as a module for plugging into the Room Controller Basis Device and has 4 inputs for the connection of floating contacts.

The product belongs to the ABB KNX range and is listed with compatible bus system KNX (TP). For B2B specification, procurement, installation, and replacement planning, the key identifiers are SKU BE/M4.12.1, Product ID 2CDG110007R0011, and EAN 4016779583138.

Key Features

• Brand: ABB.
• SKU and Extended Product Type: BE/M4.12.1.
• Catalog Description: BE/M4.12.1 Binary Input Module, 4-fold, Contact Scanning.
• Number of Digital Inputs: 4.
• Input purpose: connection of floating contacts.
• Compatible Bus Systems: KNX (TP).
• Mounting Type: Built-in.
• Degree of Protection: IP54.

Benefits

• Provides 4 digital inputs for projects that require connection of floating contacts.
• Designed for use as a plug-in module with the Room Controller Basis Device.
• Specified as part of the ABB KNX product range with compatible bus system KNX (TP).
• Built-in mounting type supports integration into the intended controller assembly.
• Listed with Manual Operation: No and Number of Batteries: 0, helping buyers verify operational and maintenance assumptions before ordering.
• Clear product identifiers, including Extended Product Type BE/M4.12.1, Product ID 2CDG110007R0011, and EAN 4016779583138, support accurate BOQ and purchase-order matching.

Technical Specifications

Specification	Value
Extended Product Type	BE/M4.12.1
Product ID	2CDG110007R0011
Display Name	BE/M4.12.1
Instructions and Manuals	GHQ6607005P0002
Installing and Commissioning Manual	2CDC514022D0201
Number of Digital Inputs	4
Manual Operation	No
Number of Batteries	0
E-Number (Norway)	4544243
E-Number (Sweden)	1751414
Declaration of Conformity – CE	2CDK514007D0601
EAN	4016779583138
Catalog Description	BE/M4.12.1 Binary Input Module, 4-fold, Contact Scanning
Manufacturer Description	Module for plugging into the Room Controller Basis Device.The device has 4 inputs for the connection of floating contacts.
Wiring Diagram	9AKK108469A6663
Mounting Type	Built-in
Degree of Protection	IP54
Compatible Bus Systems	KNX (TP)
Product Range	KNX
E-Number (Finland)	2815110
E-Number (Switzerland)	405605205
SCIP	282851ee-eb02-423f-a7fe-c4d0089099bb Germany
WEEE B2C / B2B	Business To Consumer
ETIM 9	EC000688 – Binary input for bus system
ETIM 10	EC000688 – Binary input for bus system

Applications

• KNX (TP) room controller projects where ABB BE/M4.12.1 is specified as the binary input module.
• Installations requiring 4 inputs for the connection of floating contacts.
• Replacement or procurement workflows where Product ID 2CDG110007R0011, EAN 4016779583138, or SKU BE/M4.12.1 must match the bill of quantities.
• Built-in mounting applications involving the Room Controller Basis Device.

Installation Notes

• Use ABB BE/M4.12.1 only where the project design calls for a module for plugging into the Room Controller Basis Device.
• Verify that the connected field devices are floating contacts, as the product data states that the module has 4 inputs for connection of floating contacts.
• Confirm that the project specification requires KNX (TP), built-in mounting, and the listed degree of protection IP54 before ordering or installing.
• Refer to the listed ABB documentation identifiers before installation and commissioning: Instructions and Manuals GHQ6607005P0002 and Installing and Commissioning Manual 2CDC514022D0201.
• Because Manual Operation is listed as No, ensure the planned installation and commissioning process does not depend on local manual operation of this module.

Developer Resources

• Manufacturer product page: https://new.abb.com/products/en/2CDG110007R0011/be-m4-12-1
• Instructions and Manuals: GHQ6607005P0002.
• Installing and Commissioning Manual: 2CDC514022D0201.
• Wiring Diagram: 9AKK108469A6663.
• Declaration of Conformity – CE: 2CDK514007D0601.
• KNXbazzar ABB brand link: https://knxbazzar.com/knxshop/?brand=abb
• KNXbazzar KNX System Components category: https://knxbazzar.com/product-category/knx-system-components/

FAQ

What is ABB BE/M4.12.1?

ABB BE/M4.12.1 is a 4-fold binary input module for contact scanning. It is a module for plugging into the Room Controller Basis Device.

How many digital inputs does BE/M4.12.1 provide?

The product data lists Number of Digital Inputs: 4.

What type of contacts can be connected?

The long description states that the device has 4 inputs for the connection of floating contacts.

Is ABB BE/M4.12.1 a KNX product?

Yes. The product data lists Product Range: KNX and Compatible Bus Systems: KNX (TP).

Does BE/M4.12.1 have manual operation or batteries?

The listed product data states Manual Operation: No and Number of Batteries: 0.

What is the exact product model?

The order/model code for this page is BE/M4.12.1. Match it against project documents before purchase.

Conclusion

ABB BE/M4.12.1 is a specified 4-fold binary input contact scanning module for the Room Controller Basis Device, with 4 inputs for floating contacts and product data identifying it as part of the ABB KNX range for KNX (TP).

For accurate procurement, match the SKU BE/M4.12.1, Product ID 2CDG110007R0011, EAN 4016779583138, and relevant ABB documentation references before placing an order.
