EAE RCU1616 KNX Room Control Unit (SMP RCU1616)

Description

Introduction

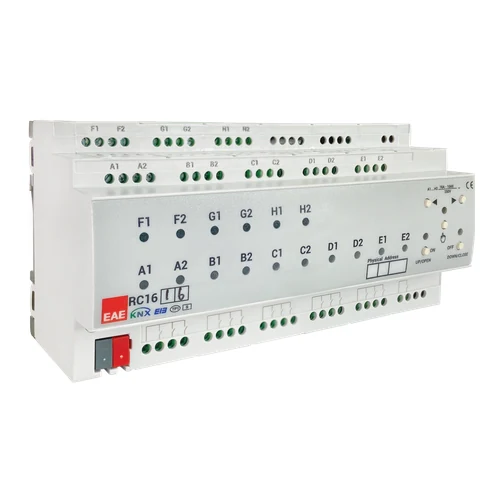

The EAE RCU1616 Room Control Unit (SKU: SMP RCU1616) is a high-density, all-in-one KNX actuator designed to manage room automation functions from a single interface. Engineered for multi-functional control across lights, AC/DC blinds, and fan coil units (including 2 and 3 point valve control), it integrates 16 outputs rated at 16A along with 16 dry contact digital inputs, eliminating the requirement for an auxiliary power supply. This device is part of our KNX Actuators products range.

Fully compliant with EN 60669 standards, the RCU1616 reliably switches resistive, capacitive, and inductive electrical loads. Its 16 independent input channels act as universal interfaces capable of handling push buttons, dimming, shutter control, value transmission, scene management, and pulse counting, providing a robust solution for building automation engineers and integrators.

Key Features

• 16 output channels rated at 16A and 16 dry contact digital inputs.
• Does not require an external power supply for operation.
• Multi-application switching: lighting, AC/DC blind control, and fan coil 2 & 3 point valves.
• EN 60669 compliant load switching for resistive, capacitive, and inductive circuits.
• Standard switching modes: Staircase lighting, External logic, Priority, Threshold, Operating hour, and Sweep.
• Universal input functions: Switch/push button, Dimmer control, Shutter/blinds control, Value transfer, Scene control, and Count pulse counter.

Benefits

• All-in-one room control interface managing lighting, shading, and HVAC valves from a unified hardware unit.
• Operates directly without requiring an external power supply unit.
• High switching capacity with 16 outputs rated at 16A compliant with EN 60669 for resistive, capacitive, and inductive loads.
• Versatile 16 universal digital inputs supporting switches, dimmers, blind control, value transfer, scene control, and pulse counters.
• Comprehensive built-in logic including staircase functions, priority control, threshold switching, sweep, and operating hour tracking.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	RCU1616
Outputs	16x16A
Digital Inputs	16
Standard Compliance	EN 60669

Applications

• Hotel and commercial guest room automation controlling lights, blinds, and HVAC valves from a single enclosure.
• Office room control integrating multi-channel switching, shading automation, and wall-mounted dry contact push buttons.
• Residential KNX installations utilizing central scene triggers, logic operations, and utility pulse counting inputs.

Installation Notes

• Verify panel arrangement for 16 outputs and 16 digital input connections; no external auxiliary power supply is required.
• Ensure load types and circuit ratings conform to EN 60669 standard specifications before wiring.
• Connect dry contact inputs to universal input terminals as configured for switches, scene triggers, or pulse counters.

FAQ

Does the EAE RCU1616 require an external power supply?

No, the EAE RCU1616 covers complete room control requirements without requiring an external power supply. Explore more EAE automation devices for professional building automation projects.

What types of electrical loads can the RCU1616 switch?

The RCU1616 is capable of switching resistive, capacitive, and inductive loads in compliance with EN 60669. For certificates and current technical files, refer to the official EAE documentation.

What functions are supported by the 16 digital inputs?

The 16 dry contact inputs function as universal interfaces supporting push button switches, dimmer control, shutter/blind operation, value transfer, scene triggers, and pulse counting.

What is the exact product model?

The order/model code for this page is SMP RCU1616. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Where can I find the official technical documentation?

Use the manufacturer product page and datasheets for this exact SKU. Always verify the latest revision before specifying the product.

Conclusion

The EAE RCU1616 Room Control Unit offers a high-density, versatile solution for modern KNX building control. By combining 16 outputs rated at 16A with 16 universal inputs in an EN 60669 compliant package, it delivers reliable performance across lighting, shading, and climate valve applications. Installers and system integrators can review our professional project support options.
