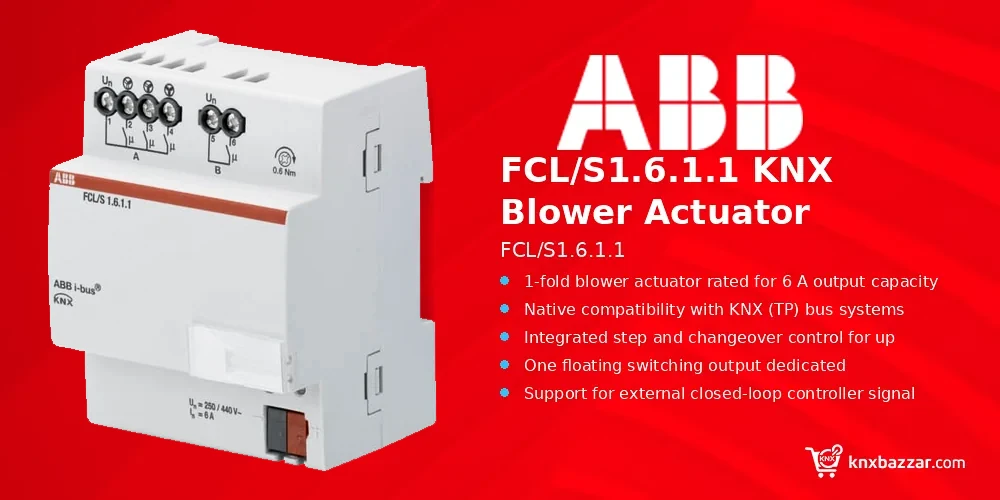

The ABB FCL/S1.6.1.1 (Product ID: 2CDG110163R0011) is a 1-fold, 6 A MDRC blower actuator engineered for KNX (TP) twisted-pair building automation systems. Designed to deliver precise climate control, this device operates a single fan or blower utilizing up to three distinct fan speeds via step control or changeover control sequences. This device is part of our KNX automation components range.
In addition to fan speed management, the actuator incorporates one floating output designed to switch auxiliary HVAC equipment such as a damper or valve. It can accept direct fan speed selection, step commands (increase/decrease), or automated control signals from an external closed-loop controller to maintain target environmental parameters.
Key Features
- 1-fold blower actuator rated for 6 A output capacity.
- Native compatibility with KNX (TP) bus systems.
- Integrated step and changeover control for up to three fan speeds.
- One floating switching output dedicated to supplementary HVAC equipment (e.g., valve or damper).
- Support for external closed-loop controller signal input.
- Standardized ETIM 7 and ETIM 8 categorization (EC001586 – Heating actuator for bus system).
- Identified under EAN 4016779877886 and Customs Tariff Number 85371091.
Benefits
- Flexible Fan Control: Supports up to three fan speeds using step or changeover control logic.
- Auxiliary Equipment Integration: Features one floating output to switch an external valve or damper alongside the main fan.
- Multiple Control Modes: Accepts direct speed commands, manual step adjustments, or control values from an external closed-loop controller.
- MDRC Form Factor: Compact modular DIN-rail component with dimensions of 92 mm width, 65 mm height, and 77 mm depth.
- Standardized Compliance: Rated IP20 protection with CE declaration 2CDK508127D2701 for reliable system integration.
Technical Specifications
Applications
- Fan coil units and ventilation blowers requiring multi-speed step or changeover relay switching.
- HVAC zone control integration where fan speed control must pair with damper or valve actuation via KNX (TP).
Installation Notes
- Designed for modular DIN-rail mounting (MDRC) within distribution boards delivering IP20 ingress protection.
- Ensure correct physical placement considering package dimensions (77 mm depth x 65 mm height x 92 mm width) and refer to official instructions document 2CDG941090P0003 for wiring layouts.
Developer Resources
- ABB Official Manuals and Instructions Document: 2CDG941090P0003
- Declaration of Conformity (CE): 2CDK508127D2701
FAQ
What is the primary function of the ABB FCL/S1.6.1.1?
The ABB FCL/S1.6.1.1 controls a single blower or fan with up to three speeds via step or changeover control and provides one floating output to switch auxiliary devices like dampers or valves. Explore more products from ABB for professional building automation projects.
Which bus system is compatible with the FCL/S1.6.1.1?
The FCL/S1.6.1.1 is specifically designed for KNX (TP) bus systems. For certificates and current technical files, refer to the official ABB product page.
What is the rated current for this blower actuator?
The device is rated for 6 A.
How can the fan speed be controlled?
The fan speed can be chosen directly, increased or decreased step-by-step, or automatically adjusted via the control value of an external closed-loop controller.
What is the exact product model?
The order/model code for this page is FCL/S1.6.1.1. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by ABB.
