ABB JA/M2.24.1

Description

Introduction

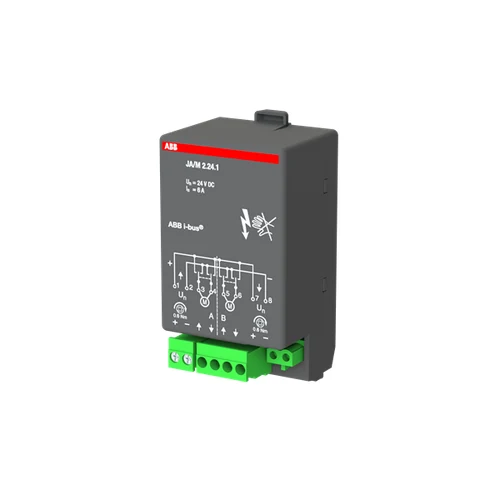

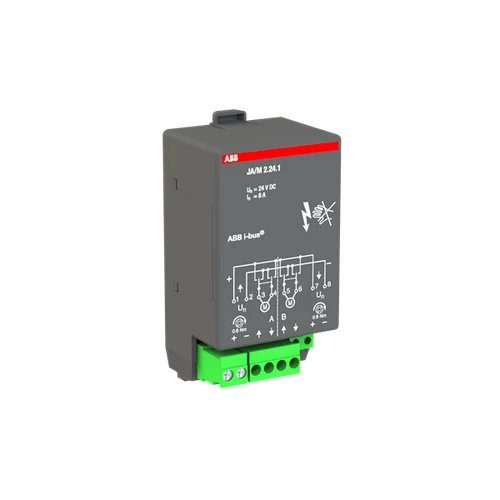

The ABB JA/M2.24.1 is a shutter actuator module in the KNX Actuators category, designed as a module for plugging into the Room Controller Basis Device. Its catalog description is JA/M2.24.1 Shutter Actuator Module, 2-fold, 24 V DC.

This module controls two independent blind or shutter drives with 24 V DC. It also supports special functions including move to position and sun protection automatic control, making it relevant for shading-control specifications where these verified functions are required.

Key Features

• Brand: ABB.
• Model / Extended Product Type: JA/M2.24.1.
• SKU: JA/M2.24.1.
• Product ID: 2CDG110004R0011.
• Catalog description: JA/M2.24.1 Shutter Actuator Module, 2-fold, 24 V DC.
• Number of outputs: 2.
• Manual operation: No.
• Current type: DC.

Benefits

• Supports control of two independent blind or shutter drives from one 2-fold module.
• Designed for use as a plug-in module with the Room Controller Basis Device.
• Provides dedicated application functionality for blind, shutter, and shading control.
• Includes special functions for move to position and sun protection automatic control.
• Built-in mounting type supports integration within the specified room-controller module environment.
• Documented with ABB reference identifiers for manuals, technical information, and CE declaration, supporting specification checking and procurement verification.

Technical Specifications

Specification	Value
Extended Product Type:	JA/M2.24.1
Product ID:	2CDG110004R0011
Instructions and Manuals:	GHQ6607003P0002
Installing and Commissioning Manual:	2CDC514020D0201
Number of Outputs:	2
Manual Operation:	No
Number of Batteries:	0
Declaration of Conformity – CE:	2CDK514076D2701
Declaration of Conformity – CE	2CDK514076D2701
EAN:	4016779583169
Catalog Description:	JA/M2.24.1 Shutter Actuator Module, 2-fold, 24 V DC
Long Description:	Module for plugging into the Room Controller Basis Device. They control two independent blind or shutter drives with 24 V DC. Special functions: Move to position and sun protection automatic control.
2CDG110106R0011	RC/A8.2 Room Controller Basis Device, 8 Modules, SM
2CDG110104R0011	RC/A4.2 Room Controller Basis Device, 4 Modules, SM
Mounting Type:	Built-in
Application Function:	Blind / Shutter / Shading Control
Installation Instructions and Manuals	GHQ6607003P0002 Installing and Commissioning Manual: 2CDC514020D0201 Mounting Type: Built-in
Instructions and Manuals	GHQ6607003P0002 Installing and Commissioning Manual: 2CDC514020D0201 Mounting Type: Built-in
Data Sheet, Technical Information:	2CDC514016D0202
Current Type:	DC
Voltage Range:	24
Output Voltage (U out ):	24 V DC
Maximum Switching Current:	144
Power Loss:	0
Compatible Bus Systems:	KNX (TP)

Applications

• Blind, shutter, and shading control in KNX actuator specifications.
• Projects requiring two independent 24 V DC blind or shutter drives to be controlled by a plug-in module.
• Room Controller Basis Device configurations where the JA/M2.24.1 module is specified.
• Shading-control applications requiring move-to-position and sun protection automatic control functions.

Installation Notes

• The JA/M2.24.1 is described as a module for plugging into the Room Controller Basis Device; verify the selected Room Controller Basis Device and module position against ABB documentation before ordering or installation.
• Mounting type is built-in.
• Referenced Room Controller Basis Devices in the product data include RC/A8.2 Room Controller Basis Device, 8 Modules, SM, product reference 2CDG110106R0011, and RC/A4.2 Room Controller Basis Device, 4 Modules, SM, product reference 2CDG110104R0011.
• Use the ABB Instructions and Manuals reference GHQ6607003P0002 and Installing and Commissioning Manual reference 2CDC514020D0201 for installation and commissioning checks.
• Manual operation is listed as No, so project documentation and handover expectations should reflect the verified product data.

Developer Resources

• Manufacturer URL: https://new.abb.com/products/en/2CDG110004R0011/ja-m2-24-1
• KNXbazzar category URL: https://knxbazzar.com/product-category/knx-actuators/
• ABB Product ID: 2CDG110004R0011.
• Instructions and Manuals reference: GHQ6607003P0002.
• Installing and Commissioning Manual reference: 2CDC514020D0201.
• Data Sheet / Technical Information reference: 2CDC514016D0202.
• Declaration of Conformity – CE reference: 2CDK514076D2701.
• EAN: 4016779583169.

FAQ

What is the ABB JA/M2.24.1 used for?

The ABB JA/M2.24.1 is a shutter actuator module used for blind, shutter, and shading control. It controls two independent blind or shutter drives with 24 V DC.

How many outputs does the JA/M2.24.1 have?

The product data lists the number of outputs as 2.

Does the JA/M2.24.1 provide manual operation?

No. The product data lists Manual Operation as No.

Which special functions are listed for this module?

The listed special functions are move to position and sun protection automatic control.

Which ABB documentation references should be checked before procurement or installation?

Check Instructions and Manuals reference GHQ6607003P0002, Installing and Commissioning Manual reference 2CDC514020D0201, Data Sheet / Technical Information reference 2CDC514016D0202, and CE Declaration reference 2CDK514076D2701.

What is the exact product model?

The order/model code for this page is JA/M2.24.1. Match it against project documents before purchase.

Conclusion

The ABB JA/M2.24.1 is a 2-fold 24 V DC shutter actuator module for plugging into the Room Controller Basis Device, with two outputs for independent blind or shutter drives and verified functions for move to position and sun protection automatic control.

For professional procurement, specify ABB JA/M2.24.1 exactly and cross-check Product ID 2CDG110004R0011, EAN 4016779583169, and the relevant ABB documentation references before finalizing the order.
