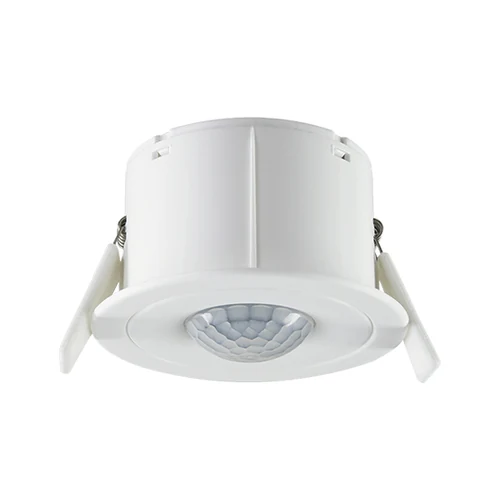

EAE PD100 KNX Presence Sensor

Description

Introduction

The EAE PD100 KNX Presence Sensor (SKU: SMP PD100 EAE F-KNX) is engineered for indoor commercial and residential building automation systems requiring accurate motion detection and intelligent energy management. Equipped with an integrated light level sensor alongside a movement sensor, the device regulates ambient lighting according to real-time room occupancy and daylight availability. This device is part of our KNX system components range.

Designed for flexible deployment, the PD100 supports both flush and surface mounting without requiring an external power supply. Beyond lighting regulation, it provides dedicated HVAC capabilities for controlling air conditioning and ventilation systems, configurable brightness parameters, and test modes to streamline commissioning for integrators.

Key Features

• 6m diameter movement detection area at a standard assembly height of 2.5m.
• Integrated movement and light level sensors enabling constant light function.
• HVAC control functions specifically tailored for air conditioning and ventilation management.
• Adjustable brightness thresholds and durations for Movement, After Movement, and No Movement states.
• Two constant light level adjustments for both Vacant and Occupied operational states.
• Periodic movement status transmission via a separate KNX communication object.
• Interconnection capability allowing operation as a single sensor when linked with other KNX presence sensors.
• Built-in test and calibration modes for straightforward installation setup.

Benefits

• Reduces energy consumption by dynamically balancing artificial light with natural daylight using constant light control.
• Simplifies electrical installation and topology by running without an external power supply.
• Offers versatile deployment options with native support for both flush and surface mounting.
• Expands building automation functionality by incorporating integrated HVAC control for air conditioning and ventilation.
• Accelerates project setup and troubleshooting using dedicated test and calibration modes.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	PD100
Mounting Type	Flush or surface mount
Detection Range	6m diameter at 2.5m assembly height
Power Supply	Does not require an external power supply

Applications

• Commercial offices and meeting rooms where constant light control and automated HVAC integration are required.
• Educational facilities and public buildings requiring reliable ceiling-mounted occupancy sensing.
• Residential interiors seeking integrated lighting and ventilation automation without auxiliary power units.

Installation Notes

• Supports both flush-mount and surface-mount ceiling installation options.
• Optimal movement detection is achieved at an assembly height of 2.5 meters, providing a 6-meter coverage diameter.
• Connects directly to the KNX bus line; requires no external power supply.

Developer Resources

• Official manufacturer product page: https://www.eaetechnology.com/en/products/knx-products/sensors/pd100-presence-sensor

FAQ

Does the EAE PD100 presence sensor require an auxiliary power supply?

No, the device operates directly from the KNX line and does not require an external power supply. Explore more EAE building automation products for professional building automation projects.

What is the detection area of the PD100 sensor?

The PD100 offers a 6-meter diameter movement detection area when mounted at a height of 2.5 meters. For certificates and current technical files, refer to the official EAE documentation.

Can the PD100 manage heating and cooling systems?

Yes, the sensor features integrated HVAC capabilities to control air conditioning and ventilation based on occupancy.

How can multiple PD100 sensors be combined in a single area?

It features a connection mode that allows it to operate as a single sensor when connected with other KNX presence sensors.

What is the exact product model?

The order/model code for this page is SMP PD100 EAE F-KNX. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Conclusion

The EAE PD100 KNX Presence Sensor (SMP PD100 EAE F-KNX) delivers comprehensive occupancy detection, constant light control, and HVAC integration in a compact package. With flexible mounting options and bus-powered operation, it is an ideal component for modern energy-efficient building automation. Installers and system integrators can review our professional project support options.
