ABB JRA/S4.230.2.2

Description

Introduction

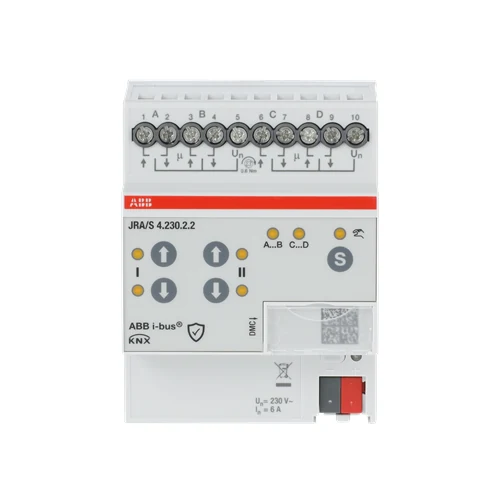

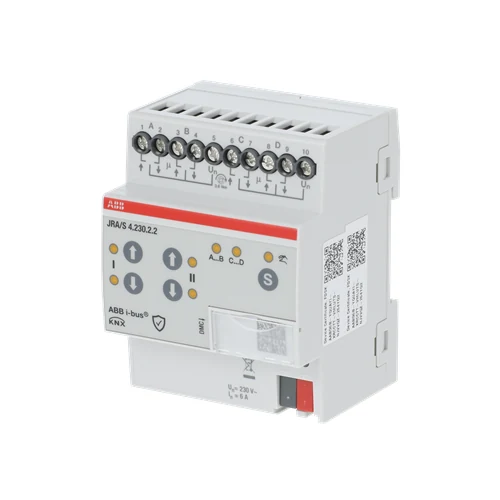

The ABB JRA/S4.230.2.2 is a KNX actuator for controlling independent 230 V AC motors via ABB i-bus® KNX. It is intended for positioning blinds, roller shutters, awnings and other shading products, and it can also be used for controlling doors, windows and ventilation flaps. Explore more ABB KNX solutions for professional building automation projects.

For B2B buyers, consultants, installers and system integrators, this product should be specified and ordered by the exact model and SKU: ABB JRA/S4.230.2.2. Because the available product data is limited, project teams should verify the bill of quantities, manufacturer documentation and application requirements before procurement to avoid wrong orders.

Key Features

• Brand: ABB.
• SKU and model: JRA/S4.230.2.2.
• Product category: KNX Actuators.
• Controls independent 230 V AC motors via ABB i-bus® KNX.
• Suitable for positioning blinds, roller shutters, awnings and other shading products.
• Can control doors, windows and ventilation flaps.
• No additional auxiliary voltage is needed.
• Specification entry provided: V11.0 = 27143128.

Benefits

• Controls independent 230 V AC motors via ABB i-bus® KNX.
• Designed for blinds, roller shutters, awnings and other shading products.
• Also supports control of doors, windows and ventilation flaps as stated in the product description.
• Additional auxiliary voltage is not needed.
• Electromechanically locked output contacts help protect the motor.
• Front push-buttons allow output control during tasks such as commissioning.
• LEDs display the current status of the selected output.

Technical Specifications

Specification	Value
V11.0	27143128

Applications

• KNX-based shading control for blinds, roller shutters and awnings.
• Motor control for other shading products where the project specification matches ABB JRA/S4.230.2.2.
• Control of doors, windows and ventilation flaps as described in the product information.
• Commercial or residential building-automation projects that specify ABB i-bus® KNX actuators.

Installation Notes

• Verify the exact model ABB JRA/S4.230.2.2 against the project BOQ before ordering or installation.
• Use the official ABB product documentation from the manufacturer URL to confirm project-specific requirements and commissioning details.
• During commissioning, the front push-buttons can be used to control the outputs.
• The output status is displayed by LEDs when the output is selected.
• Do not substitute this item with a similar actuator without confirming the full model reference and application requirements.

Developer Resources

• Manufacturer product page: https://new.abb.com/products/fr/2CDG110285R0011/jra-s4-230-2-2
• KNXbazzar home: https://knxbazzar.com
• ABB products on KNXbazzar: https://knxbazzar.com/knxshop/?brand=abb
• KNX Actuators category: https://knxbazzar.com/product-category/knx-actuators/
• Dealer information: https://knxbazzar.com/be-a-dealer/

FAQ

What is the ABB JRA/S4.230.2.2 used for?

It is used for controlling independent 230 V AC motors via ABB i-bus® KNX, including applications such as blinds, roller shutters, awnings, other shading products, doors, windows and ventilation flaps. For certificates and current technical files, refer to the official ABB product page.

Does the ABB JRA/S4.230.2.2 require additional auxiliary voltage?

No. The product description states that additional auxiliary voltage is not needed.

How does the device help protect the motor?

The output contacts are electromechanically locked against each other to protect the motor.

Can outputs be controlled from the device during commissioning?

Yes. Push-buttons are located at the front of the device to control the outputs, for example during commissioning.

How should buyers avoid ordering the wrong product?

Buyers should verify the exact brand, model and SKU, ABB JRA/S4.230.2.2, against the BOQ and official ABB documentation before purchase.

What is the exact product model?

The order/model code for this page is JRA/S4.230.2.2. Match it against project documents before purchase.

Conclusion

The ABB JRA/S4.230.2.2 is a KNX actuator for independent 230 V AC motor control via ABB i-bus® KNX, intended for shading products as well as doors, windows and ventilation flaps. Installers and system integrators can review our installer purchasing support options.

Because the available data is limited, procurement teams should confirm the exact model, BOQ line item and official ABB documentation before purchase or installation.
