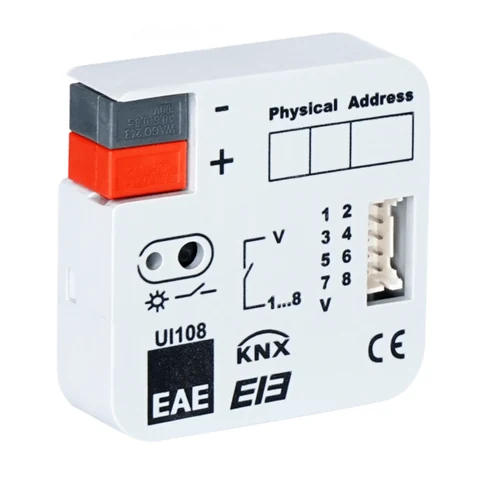

The EAE KNX Universal Interface UI108 (SKU: SMP UI108) is designed to convert conventional switches and push buttons into active KNX inputs. By allowing dry contact outputs to connect directly to a KNX network, this module serves as a versatile interface for various building automation control requirements. This device is part of our KNX automation components range.
Engineered specifically for flush mounting inside switch boxes, the UI108 features integrated colored connection cables to ensure intuitive wiring identification. Additionally, the device functions efficiently without needing an external power supply.
Key Features
- 8 input channels designed for dry contact connection.
- Flush-mounted design for direct placement in switch boxes.
- Channel switching, dimming, and curtain control functionality.
- Supports value and priority control, scene control, and pulse counter functions.
- Color-coded wiring leads included for easy channel identification.
- Powered via bus connection with no external power supply required.
Benefits
- Converts standard conventional push buttons and switches directly into KNX-compatible inputs.
- Provides 8 input channels within a single flush-mounted device for efficient spatial installation.
- Supports 6 distinct operating modes to accommodate versatile project requirements.
- Features pre-installed colored connection cables for clear, mistake-free wiring.
- Operates without requiring an external power supply, simplifying cable routing and setup.
Technical Specifications
Applications
- Connecting conventional switches and push buttons to a KNX automation system.
- Integrating pulse counting, dimming, scene control, and curtain actuation through dry contact inputs.
- Retrofitting existing conventional switch boxes for modern KNX smart building functionality.
Installation Notes
- Install the UI108 by flush-mounting it directly into standard electrical switch boxes behind the control switches.
- Connect dry contact outputs using the colored connection cables to ensure correct channel assignment.
- Note that no external power supply connection is needed for device operation.
FAQ
How many input channels are available on the EAE UI108?
The EAE UI108 includes 8 input channels for connecting dry contact outputs. Explore more products from EAE for professional building automation projects.
Does the EAE KNX Universal Interface UI108 require a separate power supply?
No, the device does not require an external power supply to operate. For certificates and current technical files, refer to the manufacturer technical documentation.
What functions are supported across the 6 operating modes?
Supported channel functions include switching, dimming, curtain control, value and priority, scene control, and pulse counting.
How is the device installed during physical setup?
It is designed to be flush-mounted directly inside standard switch boxes.
What is the exact product model?
The order/model code for this page is SMP UI108. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
Conclusion
The EAE KNX Universal Interface UI108 offers a compact and flexible solution for bridging conventional switches into a modern KNX ecosystem. Equipped with 8 input channels, 6 operational modes, and flush-mount capability, it caters effectively to versatile installation needs. Installers and system integrators can review our dealer and project support options.
With its self-powered design and clear, color-coded wiring, the UI108 simplifies deployment for installers and system integrators alike.
