Description
Introduction

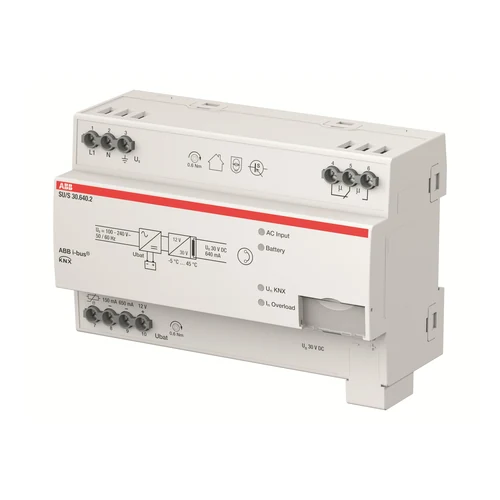

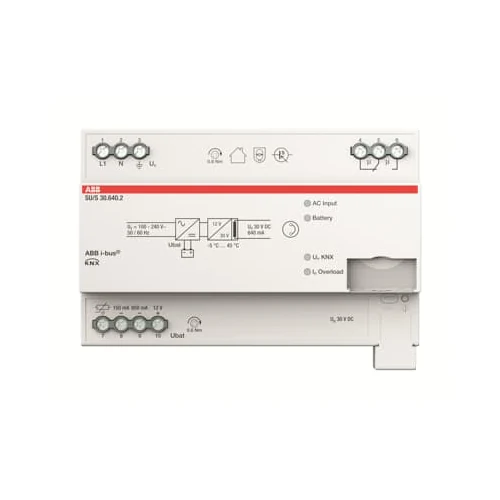

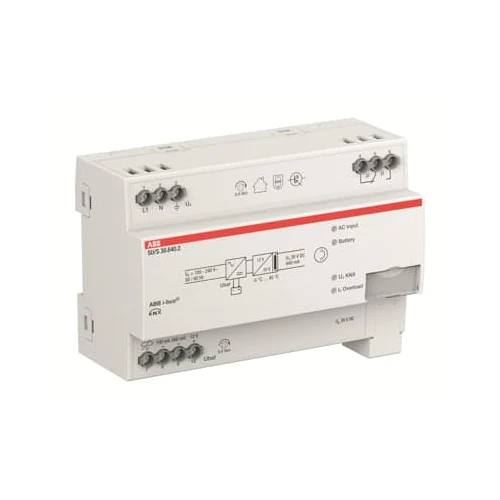

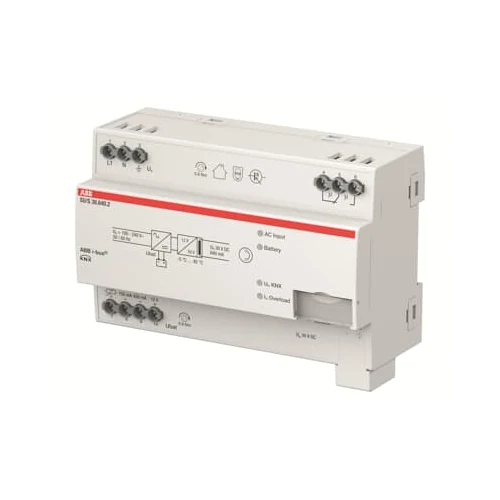

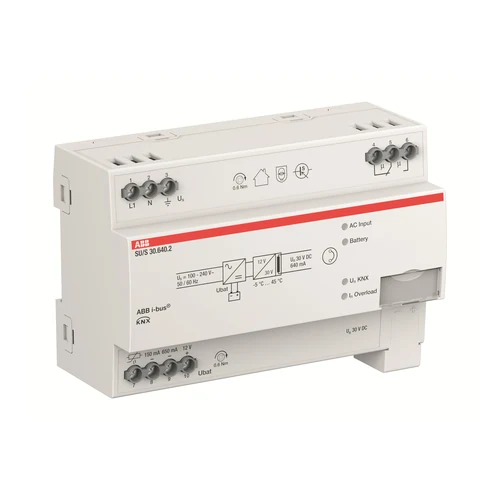

The ABB SU/S30.640.2 is an uninterruptible KNX power supply for KNX system components, designed to supply one ABB i-bus® KNX bus line with 640 mA. It includes an integrated choke and is described as short-circuit- and overload-proof, making it a dedicated system component for professional KNX line power supply planning.
For projects where bus voltage continuity is important, the SU/S30.640.2 can charge the ABB accumulator module AM/S 12.1 or up to two rechargeable batteries during normal operation. In the event of a mains failure, the bus voltage is provided using the batteries, supporting continuity for the connected KNX bus line according to the project design and official ABB documentation.
Key Features
- Brand: ABB.
- SKU / Extended Product Type / Display Name: SU/S30.640.2.
- Catalog description: SU/S30.640.2 Uninterruptible KNX Power Supply, 640 mA, MDRC.
- Product ID: 2CDG110275R0011.
- Number of supplied lines: 1.
- Number of batteries: 0.
- Can charge accumulator module AM/S 12.1 or up to 2 rechargeable batteries in normal operation.
- Declaration of Conformity references: CE 9AKK108468A1351 and UKCA 9AKK108468A1483.
Benefits
- Uninterruptible KNX bus power supply for one ABB i-bus® KNX bus line.
- 640 mA output class supports professional KNX line power planning where this current rating matches the project BOQ.
- Integrated choke simplifies selection by combining KNX bus power supply and choke functionality in one MDRC device.
- Battery-supported operation provides bus voltage in the event of mains failure when used with the specified accumulator module or rechargeable batteries.
- LED status indication supports on-site checking of bus current, mains voltage, and battery voltage.
- Wide range input from 85…265 V AC, 50/60 Hz supports use across projects where that mains input range is specified.
- Identified by ABB Product ID 2CDG110275R0011 and EAN 4016779085953 for accurate procurement and replacement matching.
Technical Specifications
Applications
- Power supply for a single ABB i-bus® KNX bus line requiring a 640 mA uninterruptible KNX power supply.
- KNX installations where bus voltage should be supported by batteries during a mains failure, according to the selected ABB battery solution.
- System component selection for consultants, integrators, and installers preparing ABB KNX bills of quantities.
- Replacement or project matching where the old ABB Product ID GHQ6310049R0111 is referenced.
Installation Notes
- Verify that the project requires ABB SU/S30.640.2, Product ID 2CDG110275R0011, before ordering or approving the BOQ.
- Confirm that one supplied KNX line and 640 mA output are suitable for the intended ABB i-bus® KNX line design.
- Plan battery backup separately: the listed number of batteries is 0, and the product can charge AM/S 12.1 or up to two rechargeable batteries in normal operation.
- Use ABB instructions and manuals reference 9AKK107992A4835 and the official ABB product page for installation, wiring, commissioning, and safety requirements.
- Check the input requirement of 85…265 V AC, 50/60 Hz against the project electrical design before installation.
Developer Resources
- Manufacturer product page: https://new.abb.com/products/en/2CDG110275R0011/su-s30-640-2
- Instructions and Manuals reference: 9AKK107992A4835.
- ABB Product ID: 2CDG110275R0011.
- EAN: 4016779085953.
- Declaration of Conformity – CE: 9AKK108468A1351.
- Declaration of Conformity – UKCA: 9AKK108468A1483.
- KNXbazzar ABB brand page: https://knxbazzar.com/knxshop/?brand=abb
- KNX System Components category: https://knxbazzar.com/product-category/knx-system-components/
FAQ
What is the ABB SU/S30.640.2 used for?
The ABB SU/S30.640.2 is an uninterruptible KNX power supply with 640 mA output for supplying one ABB i-bus® KNX bus line.
Does the SU/S30.640.2 include an integrated choke?
Yes. The product description states that the SU/S30.640.2 includes an integrated choke for supplying an ABB i-bus® KNX bus line.
Are batteries supplied with the ABB SU/S30.640.2?
No. The product data lists Number of Batteries as 0. Battery backup planning should be checked against ABB documentation and the project BOQ.
Which battery options are stated for normal operation charging?
The power supply can charge the accumulator module AM/S 12.1 or up to two rechargeable batteries in normal operation.
How can buyers avoid ordering the wrong product?
Match the exact brand ABB, SKU SU/S30.640.2, Product ID 2CDG110275R0011, EAN 4016779085953, and the project requirement for one 640 mA KNX supplied line before placing an order.
What is the exact product model?
The order/model code for this page is SU/S30.640.2. Match it against project documents before purchase.
Conclusion
The ABB SU/S30.640.2 is a 640 mA uninterruptible KNX power supply with integrated choke for one ABB i-bus® KNX bus line, status LEDs, wide range AC input, and battery-supported bus voltage during mains failure when configured with the stated battery solution.
For accurate procurement, confirm the exact ABB model SU/S30.640.2, Product ID 2CDG110275R0011, official documentation reference, and BOQ requirements before ordering.
