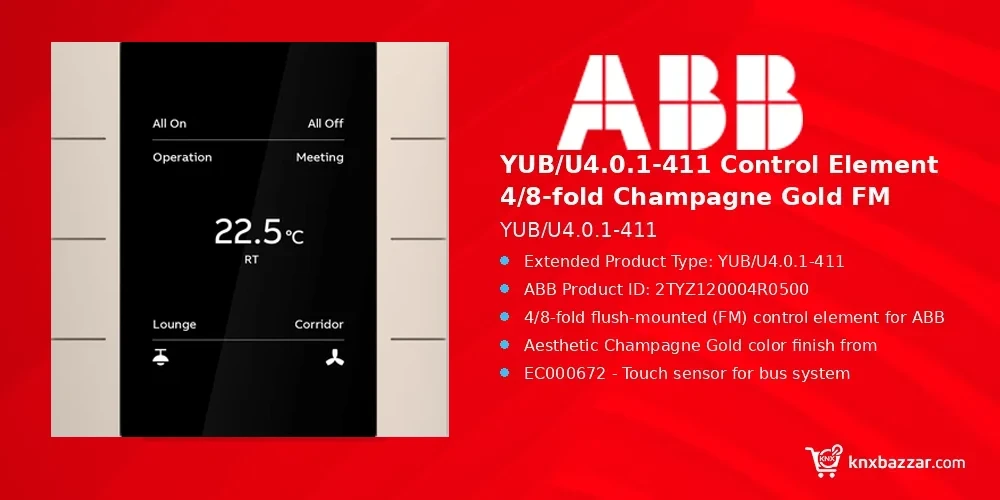

ABB YUB/U4.0.1-411 Control Element 4/8-fold Champagne Gold FM

Description

Introduction

The ABB YUB/U4.0.1-411 (Product ID: 2TYZ120004R0500) is an ABB i-bus® KNX sensor control element designed for modern building automation projects. Part of the ABB Yurika design range, this 4/8-fold touch sensor features a Champagne Gold finish and is built for flush-mounted (FM) installation, delivering a refined user interface for wall-mounted control in residential and commercial spaces. This device is part of our KNX system components range.

Categorized under ETIM 9 and ETIM 10 standards as EC000672 (Touch sensor for bus system), the YUB/U4.0.1-411 offers a standard form factor measuring 86.0 mm in width, 86.0 mm in height, and 40.0 mm in depth. Classified for Business To Business (B2B) WEEE deployment, this unit integrates directly into KNX bus system architectures to support key automation operations.

Key Features

• Extended Product Type: YUB/U4.0.1-411
• ABB Product ID: 2TYZ120004R0500
• 4/8-fold flush-mounted (FM) control element for ABB i-bus® KNX systems
• Aesthetic Champagne Gold color finish from the Yurika design line
• ETIM 9 / ETIM 10: EC000672 – Touch sensor for bus system
• Physical Dimensions: 86.0 mm (W) x 86.0 mm (H) x 40.0 mm (D); Net Weight: 0.84
• EAN Barcode: 6941593462537
• WEEE Classification: Business To Business

Benefits

• Sophisticated Design Integration: Features a Champagne Gold finish within the Yurika design range to elevate room aesthetics.
• Versatile 4/8-Fold Configuration: Provides multi-point control functionality as a flush-mounted touch sensor for KNX bus networks.
• Compact Wall-Mount Dimensions: Engineered with an 86.0 mm x 86.0 mm front profile and 40.0 mm depth for standard FM mounting.
• Verified Compliance: Backed by official CE Declaration of Conformity document 9AKK108468A2575 and technical documentation.
• Standardized ETIM Classification: Registered under ETIM 9 / 10 EC000672 for simplified product specification and BOQ matching.

Technical Specifications

Specification	Value
Extended Product Type	YUB/U4.0.1-411
Product ID	2TYZ120004R0500
Display Name	YUB/U4.0.1-411
Instructions and Manuals	9AKK108467A6351
Declaration of Conformity – CE	9AKK108468A2575
EAN	6941593462537
Catalog Description	YUB/U4.0.1-411 Control Element, 4/8-fold, Champagne Gold, FM
Manufacturer Description	ABB i-bus® KNX sensor Control element 4/8-fold, FM, Champagne Gold
Color	Champagne Gold
Data Sheet, Technical Information	9AKK108467A6960
Product Range	KNX
WEEE B2C / B2B	Business To Business
ETIM 9	EC000672 – Touch sensor for bus system
ETIM 10	EC000672 – Touch sensor for bus system
Design Range	Yurika
Product Net Width	86.0
Product Net Height	86.0
Product Net Depth / Length	40.0
Product Net Weight	0.84
Dimension Diagram	9AKK108470A6036
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
RoHS Information	9AKK108468A2575
RoHS Status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information	No data – If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363

Applications

• Flush-mounted wall switch positions requiring 4/8-fold touch control in KNX smart building installations.
• Commercial and high-end residential interiors specifying the ABB Yurika design series in Champagne Gold.
• B2B building management integration requiring certified ETIM EC000672 bus touch sensors.

Installation Notes

• Designed for flush-mounted (FM) wall box placement with physical dimensions of 86.0 mm height, 86.0 mm width, and 40.0 mm depth.
• Refer to official ABB Instructions and Manuals document 9AKK108467A6351 and Dimension Diagram 9AKK108470A6036 for exact installation parameters.
• Verify compatibility with the ABB i-bus® KNX product range prior to site integration.

Developer Resources

• Instructions and Manuals Document: 9AKK108467A6351
• Data Sheet / Technical Information: 9AKK108467A6960
• Dimension Diagram Document: 9AKK108470A6036
• Declaration of Conformity – CE Document: 9AKK108468A2575

FAQ

What is the ABB Product ID and EAN for the YUB/U4.0.1-411?

The ABB Product ID is 2TYZ120004R0500 and the EAN barcode is 6941593462537. Explore more ABB KNX products for professional building automation projects.

What is the color and design line of this KNX control element?

The YUB/U4.0.1-411 is finished in Champagne Gold and belongs to the ABB Yurika design range. For certificates and current technical files, refer to the official ABB product page.

What are the dimensions and mounting type of this unit?

It is a flush-mounted (FM) device measuring 86.0 mm in width, 86.0 mm in height, and 40.0 mm in depth, with a net weight of 0.84.

What ETIM classification applies to this touch sensor?

It is classified under ETIM 9 and ETIM 10 as EC000672 – Touch sensor for bus system.

What is the exact product model?

The order/model code for this page is YUB/U4.0.1-411. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by ABB.

Conclusion

The ABB YUB/U4.0.1-411 Control Element (Product ID: 2TYZ120004R0500) provides a 4/8-fold flush-mounted control solution in Champagne Gold for ABB i-bus® KNX networks. Installers and system integrators can review our dealer and project support options.

Utilize manufacturer technical references 9AKK108467A6960 and 9AKK108467A6351 to ensure exact specification matching in your project BOQ.
