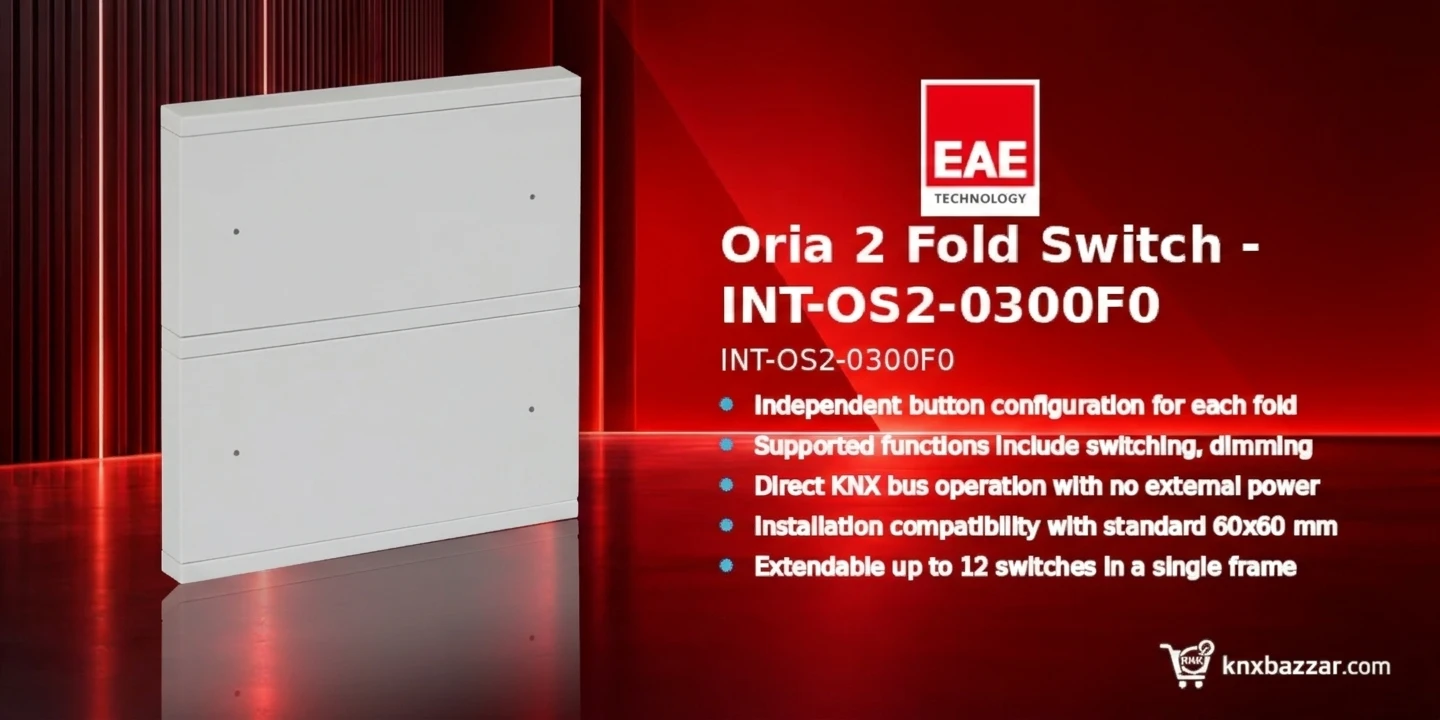

EAE Oria 2 Fold Switch – INT-OS2-0300F0

Description

Introduction

The EAE Oria 2 Fold Switch (INT-OS2-0300F0) is a versatile KNX push button unit engineered for seamless integration within modern commercial and residential building automation systems. Operating directly on the KNX bus line without requiring an external power supply, this device offers an efficient and clean interface for managing automated building functions. This device is part of our professional KNX Push Buttons range.

Part of the EAE Oria series, this switch is designed for installation into standard 60×60 mm switch junctions and features a durable surface with a lifetime guarantee against fingermarks. The modular design allows it to be extended up to 12 switches in a single frame, providing system integrators and consultants with a flexible solution tailored to complex room control requirements.

Key Features

• Independent button configuration for each fold
• Supported functions include switching, dimming, shutter/blind control, value/priority assignment, and scene control
• Direct KNX bus operation with no external power supply needed
• Installation compatibility with standard 60×60 mm switch junctions
• Extendable up to 12 switches in a single frame
• Optional status and feedback indication LEDs
• Optional custom button labeling and icon customization
• Integrated temperature and humidity sensor options

Benefits

• Bus-Powered Operation: Connects directly to the KNX bus line without requiring an additional external power supply unit.
• Fingermark-Resistant Finish: Features a high-quality surface backed by a lifetime guarantee protection against fingermarks.
• Flexible Frame Expansion: Designed to be modular and extendable up to 12 switches in a single frame arrangement.
• Standard Box Compatibility: Designed for straightforward physical installation into standard 60×60 mm switch junctions.
• Versatile Control Functions: Supports independent configuration per fold for switching, dimming, shutter control, scenes, and priority tasks.
• Multiple Finish Options: Available in four distinct colors including Antique, Pearl White, Mustang gray, and Anthracite.

Technical Specifications

Specification	Value
Manufacturer	EAE
Model	INT-OS2-0300F0
Series	Oria Push Switches
Power Supply	Does not require an external power supply
Mounting Type	60×60 mm standard switch junctions
Available Color Options	Antique, Pearl White, Mustang gray, Anthracite

Applications

Lighting and Shutter Control: Managing individual lighting circuits, dimming levels, motorized blinds, and shutter drivers across commercial or residential spaces. Explore more products from EAE for professional building automation projects.

Room Control and Scene Calling: Executing complex scene calls, controlling audio speakers, and triggering panic button functions within automated KNX systems.

Installation Notes

• Designed for standard wall integration using standard 60×60 mm switch junctions.
• Powered directly by the KNX bus; no external auxiliary power supply wiring is required.
• Can be grouped and combined up to 12 switches within a single frame assembly.

FAQ

Does the EAE Oria 2 Fold Switch require an external power supply?

No, the switch operates directly on the KNX bus and does not require an external power supply. For certificates and current technical files, refer to the manufacturer technical documentation.

What standard junction size is required for mounting this unit?

The switch is designed for installation into standard 60×60 mm switch junctions.

How many switches can be combined in a single frame?

Oria switches can be extended up to 12 switches within a single frame.

What colors are available for the INT-OS2-0300F0 switch?

It is available in four color options: Antique, Pearl White, Mustang gray, and Anthracite.

What is the exact product model?

The order/model code for this page is INT-OS2-0300F0. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by EAE.

Conclusion

The EAE Oria 2 Fold Switch (INT-OS2-0300F0) combines robust functionality with superior surface durability for modern KNX building control environments. Its bus-powered design, standard 60×60 mm mounting compatibility, and frame expansion capabilities up to 12 switches make it an excellent choice for system integrators. Installers and system integrators can review our dealer and project support options.

Whether deployed for lighting control, shading management, or environmental sensing via optional sensors, the Oria series provides a clean, highly adaptable user interface for any KNX installation.
