1. Key Features and Advanced Connectivity

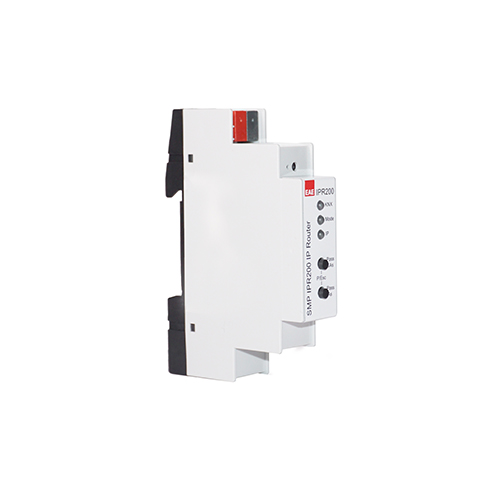

The EAE IPR200 KNX IP Router is built for high performance and system diagnostics, offering powerful control over data flow.

Routing, Tunneling, and Isolation:

• Dual Functionality: Operates as both an IP Router (for backbone/line coupling) and an IP Tunneling interface (for ETS access).
• Simultaneous Connections: Allows up to 4 simultaneous KNXnet/IP connections, enabling multiple users (e.g., ETS, visualizations, and monitoring tools) to access the KNX installation.
• Electrical Insulation: Provides galvanic isolation between the KNX bus line and the IP network, enhancing system safety.

Filtering and Diagnostics:

• Configurable Filtering: Features the option to block or allow telegrams between KNX and IP networks based on a configured filter table, optimizing traffic.
• Quick Diagnosis Override: A dedicated on-device button allows for the deactivation of the filter table, which is invaluable for quick diagnosis and commissioning.
• Status LEDs: Provides essential functional status information with 6 LEDs on the device, including IP status, KNX bus traffic, and communication errors.
