Description
Introduction

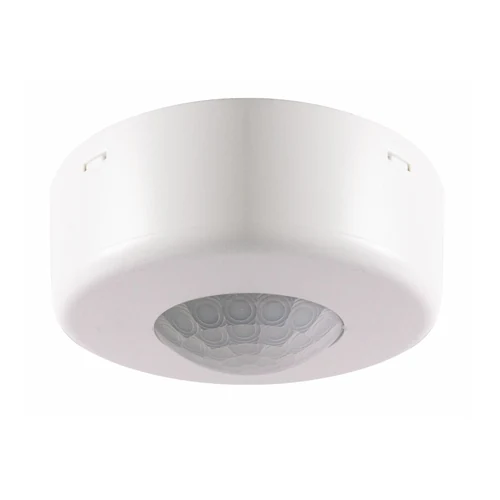

The EAE SMP HD100 High Bay Movement Sensor is engineered specifically for reliable motion and light detection in high-ceiling environments such as warehouses, industrial facilities, sports halls, and conference centers. Designed to operate effectively at mounting heights of up to 14 meters, this sensor delivers an expansive coverage area with a detection diameter of up to 25 meters, eliminating blind spots in demanding commercial and industrial spaces. This device is part of our KNX automation components range.
Equipped with integrated brightness sensing, the HD100 supports constant light regulation to maintain precise illumination levels and maximize energy efficiency. The unit integrates seamlessly into KNX automation networks without needing an external auxiliary power supply, featuring fully-automatic or semi-automatic lighting control, specialized corridor functions, and independent channels for HVAC and presence monitoring.
Key Features
- 25 m detection area diameter at 14 m mounting height
- Constant light control and regulation function
- Corridor function with configurable brightness levels across distinct movement states
- Independent HVAC control channel for dedicated climate management
- Independent presence monitoring channel for security or status tracking
- Bus-powered design requiring no auxiliary power supply
- Standalone or master-slave (parallel) operation capability
- Test and calibration mode for simplified commissioning
Benefits
- Extensive High-Bay Coverage: Provides up to 25 meters of movement detection diameter when installed at a 14-meter mounting height.
- Energy Efficient Constant Light Regulation: Automatically adjusts artificial lighting relative to natural brightness levels to optimize energy consumption.
- Versatile Control Modes: Supports both fully-automatic and semi-automatic lighting control alongside dedicated corridor function modes.
- Multi-Functional System Integration: Incorporates independent HVAC and presence channels for comprehensive facility automation.
- Simplified Bus-Powered Operation: Runs entirely on KNX bus power, reducing wiring complexity by eliminating external power supply needs.
- Flexible System Architecture: Supports standalone operation or master-slave parallel configurations across larger installation zones.
Technical Specifications
Applications
- High-ceiling logistics centers and industrial warehouses requiring reliable motion-activated illumination.
- Sports halls and large conference centers seeking precise constant light control and energy management.
- Commercial building corridors needing dynamic multi-stage brightness adjustments during occupied and unoccupied periods.
Installation Notes
- Mount the sensor at an optimal height of up to 14 meters to achieve the full 25-meter coverage diameter.
- Connect directly to the KNX bus line; no additional auxiliary power supply is required for operation.
- Utilize the integrated test and calibration mode during commissioning to verify motion coverage and calibrate light measurement levels.
FAQ
What is the maximum mounting height and coverage area for the EAE SMP HD100?
The EAE SMP HD100 supports a mounting height of up to 14 meters, providing a motion detection area diameter of up to 25 meters. Explore more EAE KNX solutions for professional building automation projects.
Does the EAE SMP HD100 require an additional external power supply?
No, the device is fully bus-powered directly through the KNX line and does not require an auxiliary power supply. For certificates and current technical files, refer to the official product documentation.
Can the sensor be used in parallel or master-slave configurations?
Yes, the HD100 can be deployed as a standalone device or configured in a master-slave topology for parallel operation across expanded areas.
What control channels are integrated into the device?
It includes lighting control with constant light regulation, an independent HVAC control channel, and a dedicated presence monitoring channel.
What is the exact product model?
The order/model code for this page is SMP HD100. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
Conclusion
The EAE SMP HD100 KNX High Bay Movement Sensor offers an exceptional motion and light control solution tailored for high-ceiling industrial and commercial facilities. With its 25-meter detection diameter, bus-powered operation, and versatile constant light and corridor features, it simplifies deployment while driving substantial energy savings. Installers and system integrators can review our installer purchasing support options.
