Description
Introduction

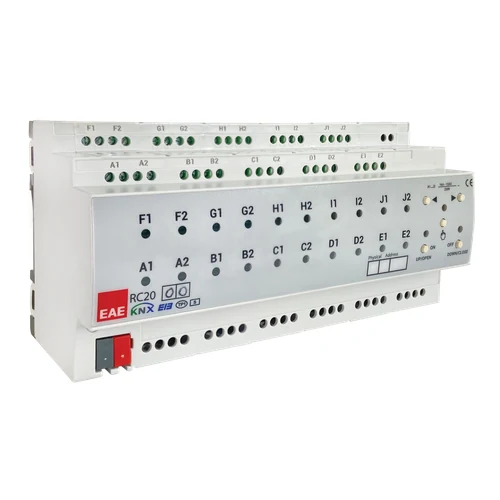

The EAE RCU2000 Room Control Unit is an all-in-one KNX device engineered to manage comprehensive room control functions from a single compact interface. Featuring 20 outputs rated at 16A, this unit provides flexible and unified control across lighting fixtures, window blinds, and fan coil units in commercial and residential KNX automation installations. This device is part of our KNX system components range.
Designed to eliminate complex multi-device wiring, the RCU2000 operates directly without requiring an external power supply. Compliant with EN 60669 standards for switching resistive, capacitive, and inductive loads, it incorporates built-in logic and timing functions—such as staircase lighting, priority control, threshold switching, and operating hour tracking—making it an efficient choice for system integrators and consultants.
Key Features
- 20 channels of 16A relay outputs for high-density room control.
- Integrated control for fan coil units (2-point and 3-point valves) and fans.
- Built-in logic modules including staircase lighting, priority, threshold, and sweep logic.
- Support for optional dry contact inputs to integrate external switches or sensors.
- Operating hour tracking functionality for maintenance monitoring.
- No external power supply required for operation.
Benefits
- Consolidates lighting, blind, and fan coil control into a single 20-channel 16A KNX actuator.
- Eliminates the requirement for an external power supply, simplifying switchboard architecture.
- Supports switching of resistive, capacitive, and inductive loads fully compliant with EN 60669.
- Features comprehensive integrated functions including operating hour tracking, sweep logic, and external logic controls.
- Offers flexibility for 2-point and 3-point valve fan coil units along with optional dry contact input support.
Technical Specifications
Applications
- Hotel guest room control systems managing lighting, climate, and motorized blinds.
- Commercial office spaces requiring centralized switching and HVAC valve control.
- Residential KNX installations needing high output density for multi-zone room automation.
Installation Notes
- Mount the module within standard distribution boards on DIN rail near controlled room circuits.
- Ensure output channels are wired within the maximum 16A rating per EN 60669 specifications.
- Connect directly to the KNX bus line without auxiliary power supply wiring.
Developer Resources
- Download official ETS database files and technical manuals directly from the manufacturer product page.
FAQ
Does the EAE RCU2000 require an auxiliary external power supply?
No, the EAE RCU2000 does not require an external power supply to operate. Explore more EAE automation devices for professional building automation projects.
What output capacity and channels are available on the RCU2000?
The unit features 20 outputs rated at 16A each, suitable for lighting, blinds, and fan coil units. For certificates and current technical files, refer to the manufacturer technical documentation.
What standards does the RCU2000 satisfy for load switching?
The device complies with EN 60669 standards for switching resistive, capacitive, and inductive loads.
Can the RCU2000 control fan coil unit valves?
Yes, it supports fan control and fan coil unit control using 2-point and 3-point valve configurations.
What is the exact product model?
The order/model code for this page is SMP RCU2000. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by EAE.
Conclusion
The EAE RCU2000 Room Control Unit offers an all-in-one solution for KNX room automation by combining 20x16A switching channels with advanced logic and fan coil control capabilities. Installers and system integrators can review our dealer and project support options.
Its compliance with EN 60669 and self-powered design make it a reliable, space-saving actuator for modern commercial and residential automation projects.
