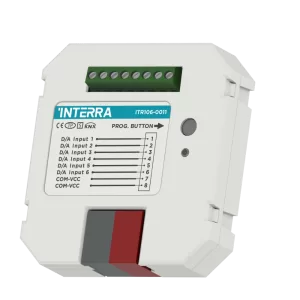

ITR106-0011 Interra KNX 6 Ch Analog Input Thermostat

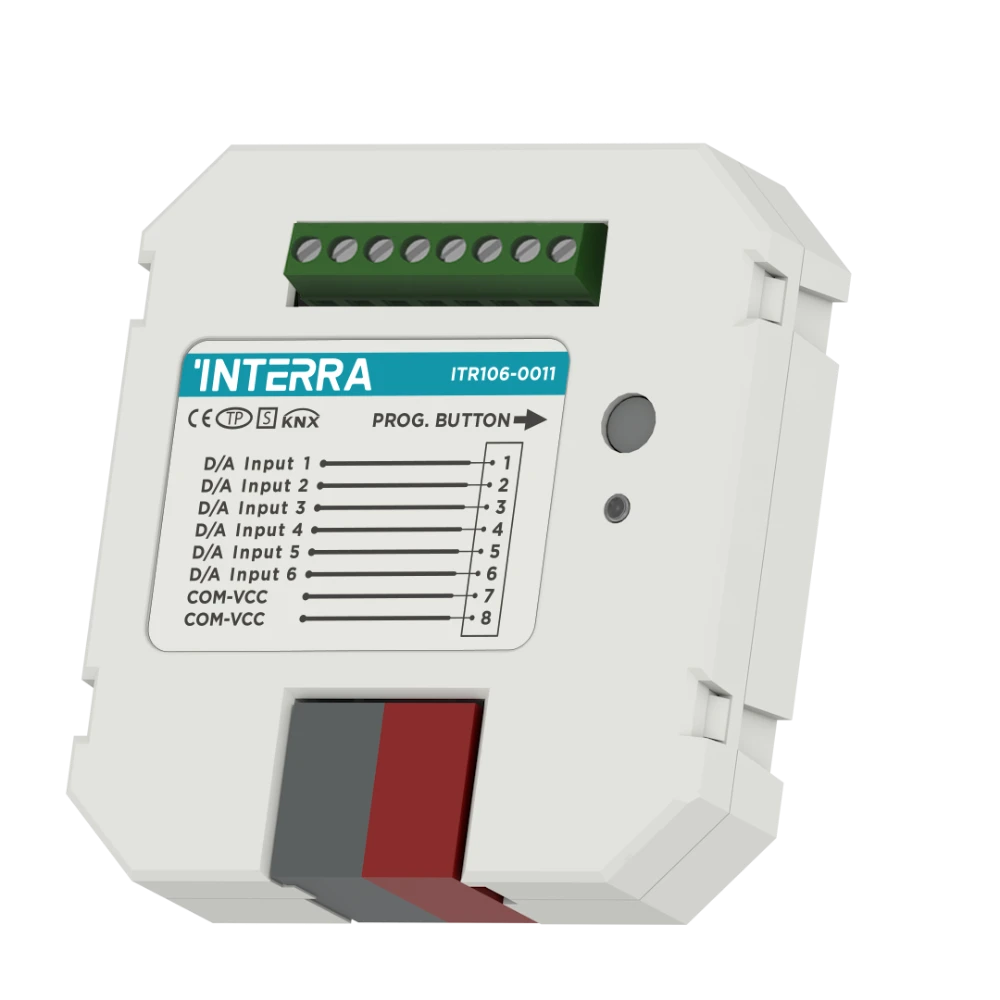

ITR106-0011 Interra KNX 6 Ch Analog Input Thermostat - Image 2

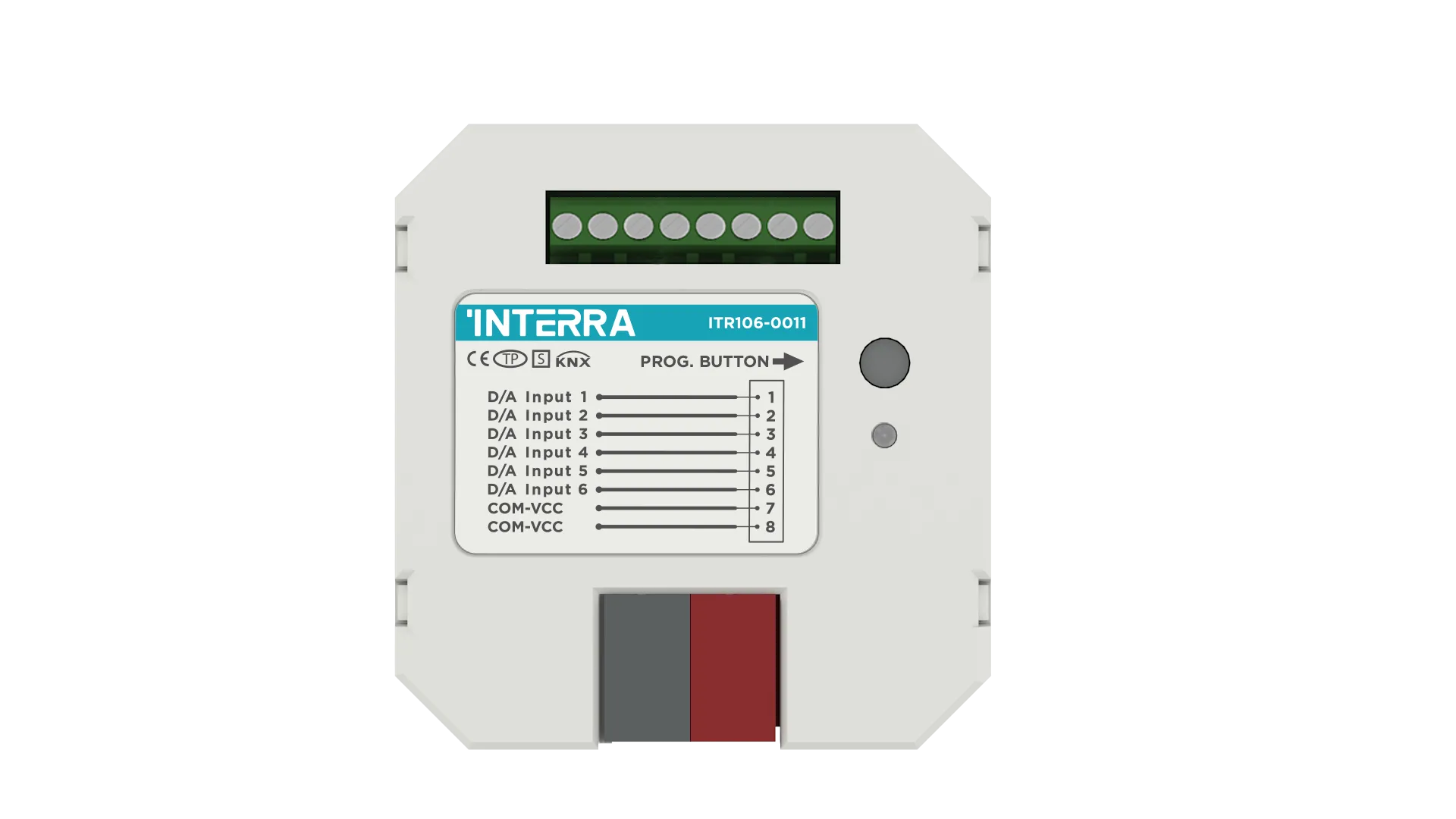

ITR106-0011 Interra KNX 6 Ch Analog Input Thermostat

KNX System Components

Brand: INTERRA
In Stock

€65,00

SKU: ITR106-0010 Category: Tag: Brand:
Worldwide Shipping Fast delivery to project sites
Genuine KNX Products Authorized manufacturer stock
Technical Support Expert help for dealers & installs
Secure Payments Encrypted checkout & trusted methods

Description

ITR106-0011 | Interra KNX 6-Channel Binary / Analog Input Module – 6x Thermostat

The Interra KNX 6-Channel Binary / Analog Input Module (ITR106-0011) is an advanced interface providing exceptional versatility by allowing its six channels to be configured as both binary (digital) and analog inputs. It integrates traditional contacts like push buttons and switches into the KNX bus and simultaneously serves as a powerful climate control hub.A key distinguishing feature is its capacity to manage six independent thermostats. It utilizes temperature information from internal or external temperature sensors connected to the analog inputs to provide precise, multi-zone heating and cooling control across up to six areas.Configured entirely via ETS5 or higher, this module supports a full range of KNX commands, from basic Switching, Dimming, and Shutter Sensor functions to complex RGB Colour Control, Scene Recall, and Command Sequencing. Additionally, it includes powerful Logic Functions and diverse output types to enable complex automation scenarios.

1. ITR106-0011 Interra Input Module: 6x Analog, Binary, and Thermostat Control

Maximum flexibility for combined input sensing and advanced climate management in one device.

Multi-Function Configuration:

  • Product Code: ITR106-0011.
  • Channel Versatility: 6 channels independently selectable as Binary (Digital) or Analog Inputs.
  • Thermostat Control: Manages up to 6 independent thermostats, using temperature data from its analog inputs (internal or external sensors).
  • Input Compatibility (Binary): Interfaces with standard contacts like switches and push buttons.
  • Input Compatibility (Analog): Accepts inputs from temperature and brightness sensors.

Available KNX Input and Logic Functions:

  • Basic Control: Switch Sensor, Switch / Dimming Sensor, Shutter Sensor.
  • Advanced Control: RGB Colour Control, RGBW Control, Mode Selection, Command Sequence.
  • Logic Capabilities: Features Internal Inputs (max. 6), External Inputs, Movement, Temperature, and Brightness logic objects.
  • Output Types: Supports diverse outputs (max. 5 selectable) including Switch, Dim, Shutter, Alarm, Sequence, Scene Number, and Threshold.

2. System Integration and Benefits

The ITR106-0011 is critical for integrating climate control and conventional switching in a space-efficient manner.

  • Integrated Climate Control: Consolidates input sensing and multi-zone heating/cooling management into a single KNX component.
  • Input Density: High channel count (6x) minimizes the required number of components in the electrical distribution board.

Interra ITR106-0011 KNX 6-Channel Binary Analog Input Module with 6 Thermostat function
