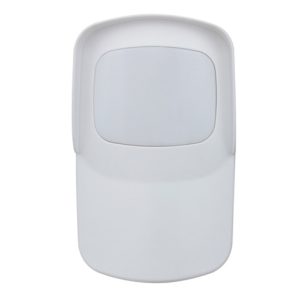

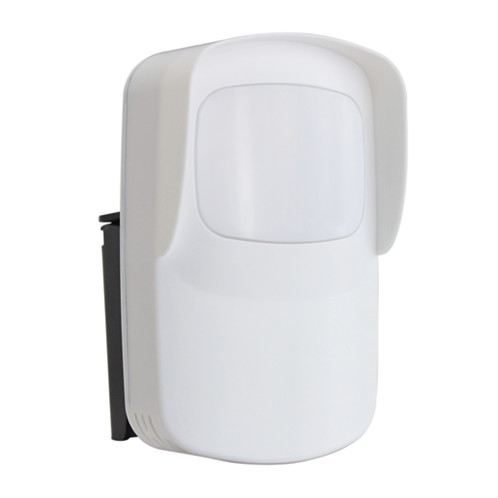

M/WS05.1 KNX Wall Mount Outdoor Microwave Sensor
€133,62
In stock
M/WS05.1 KNX Wall Mount Outdoor Microwave Sensor: IP54 Motion, Temp & Lux
This powerful sensor is highly intelligent, containing four independent logic blocks and one combined logic block. It accepts inputs from five distinct sources: Microwave status, brightness, temperature, dry contact status, and external telegram. This allows the M/WS05.1 to execute complex automation for lighting, curtain control, and threshold value management.
Its wide Φ28m detection range (at 3m height) and support for both Single mode and Master & Slave mode ensure excellent coverage and scalability for large areas, such as building perimeters, parking lots, and warehouses.
1. M/WS05.1 KNX Wall Mount Outdoor Microwave Sensor: Logic and Multi-Sensing
The M/WS05.1 is engineered for sophisticated automation and constant environmental monitoring.
Sensing and Logic Power:
- Sensing Inputs: Integrates Microwave sensing status, brightness value (0~35000LUX), temperature value (-30°C~70°C), humidity value (20~95％RH), dry contact status, and external telegrams.
- Logic Blocks: Features 5 total logic blocks (four independent, one combined), each with 10 target outputs, supporting AND and OR logical relations.
- Lighting Control: Includes 2CH constant brightness control function supporting 4 preset constant values and forced operation/dimming.
- Operating Modes: Supports Automatic or semi-automatic mode, as well as Single mode and Master & Slave mode for scalable motion detection.
- Auxiliary Input: Two dry contact input interfaces can be configured as inputs or LED indicators.
Control Versatility:
- Control Types: Supports a wide range of output commands, including Switch control, Absolute dimming control, Curtain control, Alarm control, Percentage control, Scene control, Sequence control, and Logic combination control.
- Range: Large Microwave detection range of Φ28m (at 3m installation height).
2. Technical Details and Installation
Designed for durability and robust external performance.

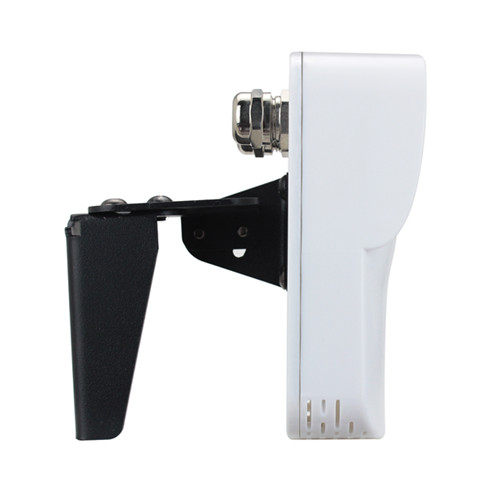

- Installation: Designed for Wall mount installation (Dimensions: 126×78×114mm, Net weight: 360g).
- Protection Rating: High protection rating of IP54 (Compliant with EN 60529), ensuring resistance to dust and splashing water.
- Power: Low working current (20mA/30V DC) and operating voltage of 21~30V DC (KNX bus power).
- Housing: Constructed from durable ASA and stainless steel materials.
