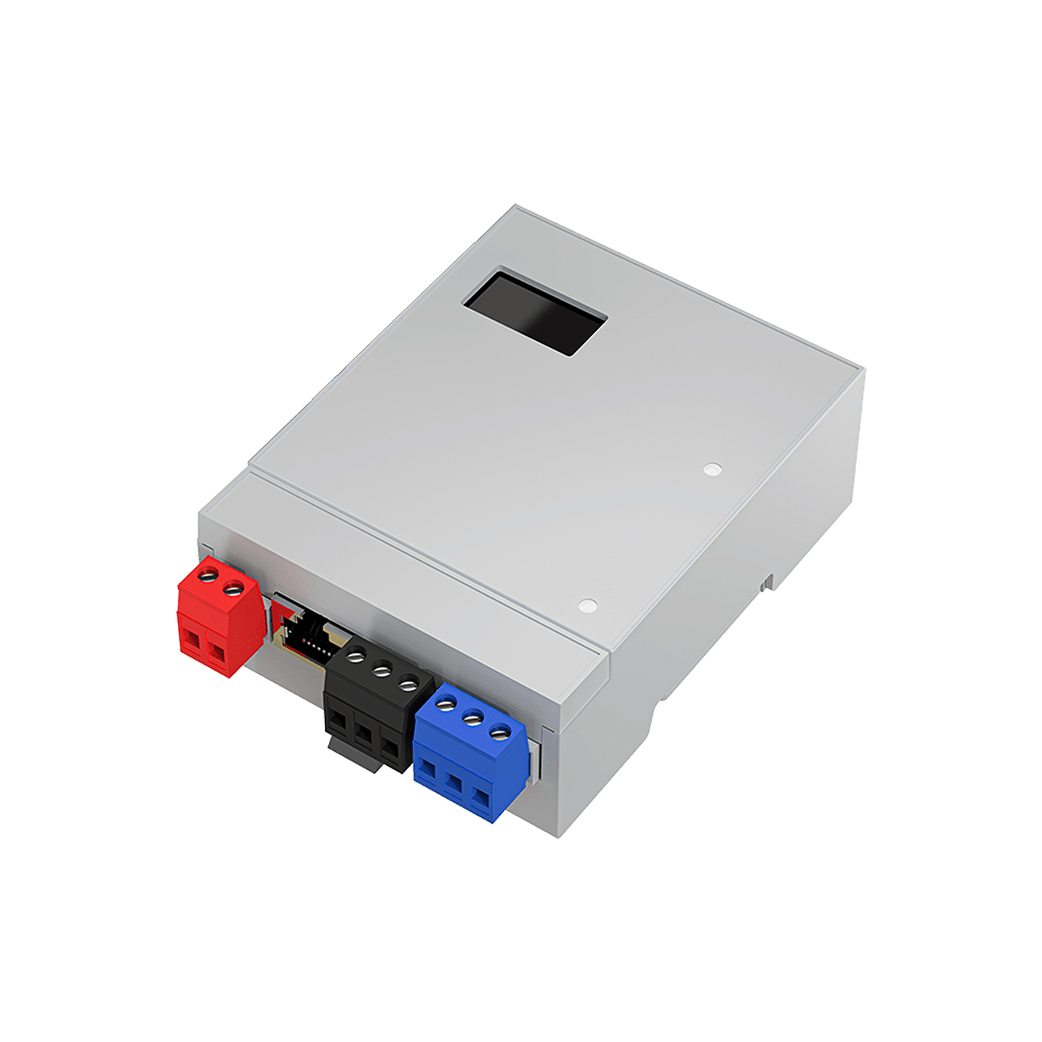

Inspinia Mini Server | MNSRV | Centralized Automation Hub

The MNSRV (Inspinia Mini Server) is a powerful, ultra-compact automation hub designed to centralize control of smart homes and commercial buildings. Serving as the “brain” of your installation, the Inspinia MNSRV integrates seamlessly with multiple platforms to provide reliable management of lighting, HVAC, security, and energy systems. Despite its small form factor, this Linux-based server supports up to 2000 objects and 1000 UI objects, making it a robust engine for cohesive smart building ecosystems.

Engineered for high efficiency, the MNSRV acts as a multi-protocol gateway, connecting diverse systems into a single, manageable interface. With support for KNX, Modbus, and Zigbee 3.0, this Inspinia Mini Server from the Automation Gateway range is the ideal solution for projects that require professional-grade logic and integration without the need for a full-sized touch panel at the core.

1. MNSRV: Advanced Integration & Building Efficiency

A mission-critical central controller designed for effortless system harmony and optimized energy consumption.

Core Benefits & Functionality:

Centralized Management: Provides a single point of control for residential and commercial automation, ensuring all subsystems operate in perfect harmony.
Enhanced Efficiency: Automates scheduling and optimizes energy use to significantly reduce utility costs and improve building sustainability.
Effortless Integration: Seamlessly bridges multiple protocols through two internal Add-On ports, supporting a wide array of smart home standards.
Diagnostic Display: Features a unique 1” OLED Mono-color LCD for immediate local status monitoring and system diagnostics.

Technical Connectivity & Hardware:

Low Power Design: Industrial-grade ARM A7 architecture with a maximum power consumption of only 2.5W.
Multi-Protocol Support: Optional modules available for KNX TP, Zigbee 3.0, Bticino (SCS), and iNELS Bus.
Flexible Power: Supports standard 24V DC input or Passive PoE (PPOE) for streamlined network cabling.
BMS Licensing: Ships with an initial 300 BMS point license, expandable to meet the needs of larger, more complex installations.

2. Technical Specifications and Network Parameters

Review the technical data for the MNSRV to ensure successful integration into your automation backbone.

Feature	Specification Details
Product Reference	MNSRV (Mini Server)
Processor / RAM	ARM A7 1.2 GHz / 128MB DDR3
OS / Software	Linux 3.4 with Inspinia Application
BMS Capacity	2000 Objects (300 Points Initial License)
Local Display	1” OLED Mono LCD
Interfaces	1x LAN RJ45, 2x Add-On Ports
Power Supply	24VDC or Passive PoE (PPOE)
