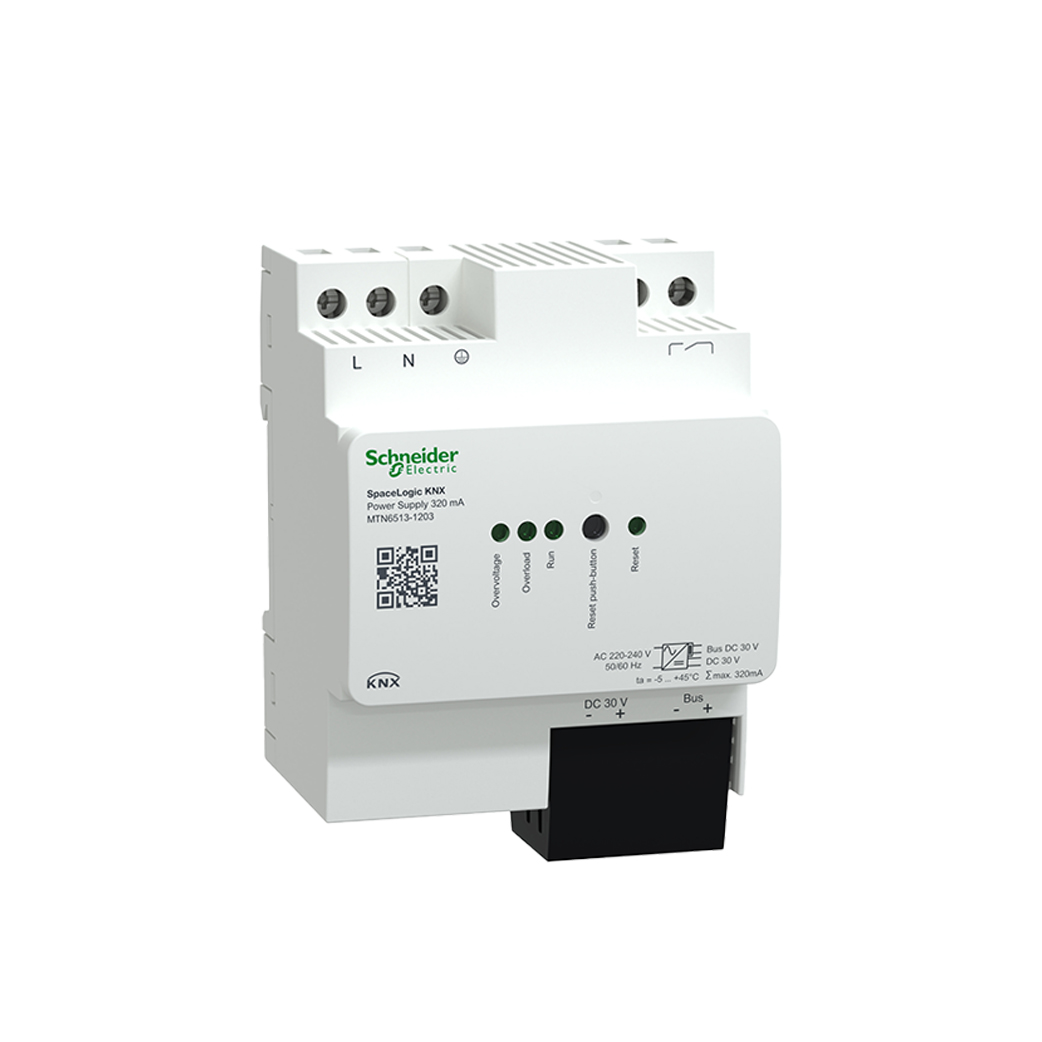

MTN6513-1203 SpaceLogic KNX Power Supply 320 mA
€209,00
In stock
SpaceLogic KNX Power Supply 320 mA | MTN6513-1203
Unlike higher-capacity models, the MTN6513-1203 offers unique scalability; two identical units can be connected in parallel to double the output current when your system expands. Whether you need a primary power source or an auxiliary supply, this 320mA KNX power supply from the SpaceLogic REG-K series ensures your bus communication remains uninterrupted.
1. MTN6513-1203: Flexible Power for Intelligent Buildings
A compact yet powerful DIN-rail component engineered for efficient energy management and system monitoring.
Core Functions & Capabilities:
- Parallel Scalability: Unique support for connecting two identical units in parallel to achieve a total of 640 mA on a single line.
- Dual Output Design: Features one dedicated KNX output (with integrated choke) and one 30 V DC auxiliary output for additional hardware.
- Diagnostic Signaling: Equipped with a floating signaling contact to relay operational status or failure messages to external monitoring systems.
- Integrated Choke: Prevents data telegram interference by decoupling the DC power from the bus communication line.
Technical Design:
- Compact Footprint: Designed for REG-K mounting on standard DIN rails, optimizing space within the distribution board.
- Visual Monitoring: Front-facing LEDs provide immediate status updates for RUN, Overload, and Bus Voltage.
- Safety Standards: Short-circuit proof and over-voltage protected to safeguard sensitive KNX bus devices.
2. Model Variants and Specifications
Verify the technical details for the MTN6513-1203 to match your specific installation requirements.
| Feature | Specification Details |
|---|---|
| Product Reference | MTN6513-1203 |
| Current Rating | 320 mA |
| Parallel Operation | Supported (Max 2 units) |
| Color Finish | White (RAL 9003) |
| Output Voltage | 30 V DC (SELV) |
| Mounting Type | DIN rail (REG-K) |
