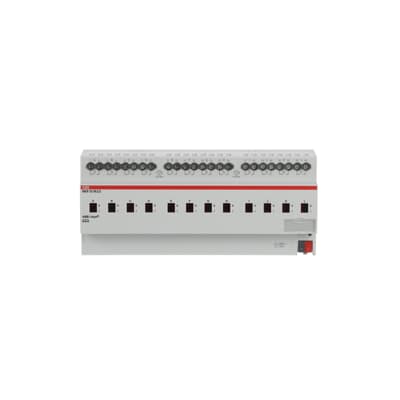

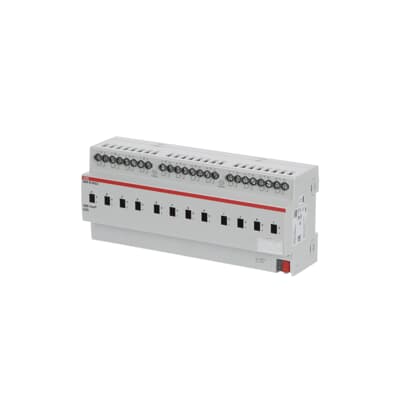

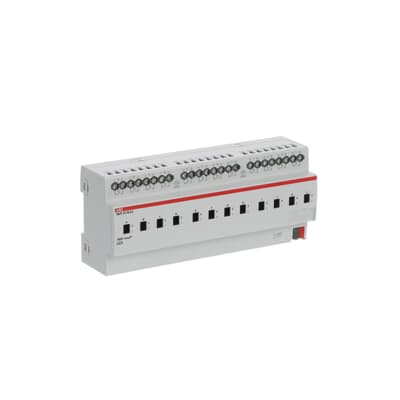

SA/S12.10.2.2 | ABB KNX Switch Actuator, 12-fold, 10 A (MDRC)
1. SA/S12.10.2.2 ABB KNX Actuator: 12-fold Switching with High Surge Current Capability
A high-density switch actuator providing reliable control for multiple electrical loads in KNX installations.
Technical Specifications & Capacity:
- Extended Product Type: SA/S12.10.2.2.
- Number of Outputs: 12 (Maximum).
- Rated Current (In): 10 A.
- Maximum Switching Power: 2500 W.
- Voltage Range: 230 V AC.
- Suitable for: Loads with high surge currents (e.g., fluorescent lights), supporting the AC-1 utilization category.
Design and Control:
- Mounting Type: DIN-Rail (MDRC), occupying 12 modular spacings (210 mm width).
- Manual Operation: Yes, with ON / OFF contact position indication.
- Degree of Protection: IP20.
- Compatible Bus Systems: KNX (TP).
2. ABB EcoSolutions & Compliance
Designed with a focus on durability, recyclability, and data compliance.
- ABB EcoSolutions: Yes, with a recyclability rate of 31.8% (acc. to EN45555).
- RoHS Compliance: Following EU Directive 2011/65/EU.
- WEEE Category: 5. Small Equipment (Business To Consumer).
- EU Data Act Compliance: Applicable and Compliant (Cyber Security Software Support Period: 2 years).
3. Dimensions
- Product Net Width: 210 mm
- Product Net Height: 90 mm
- Product Net Depth / Length: 63.5 mm
- Product Net Weight: 0.608 kg
