SAH/S16.6.7.1 KNX Switch/Shutter Actuator
12 people are viewing this product right now
€425,00
Shipping calculated at checkout.
In stock
Guarantee Safe and Secure Payment Checkout

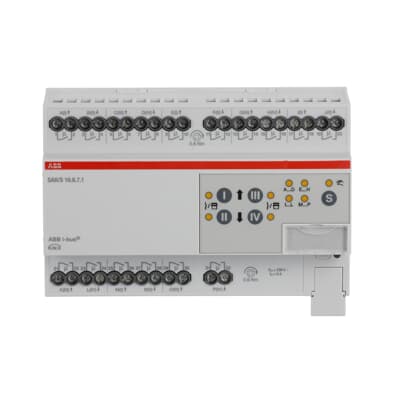

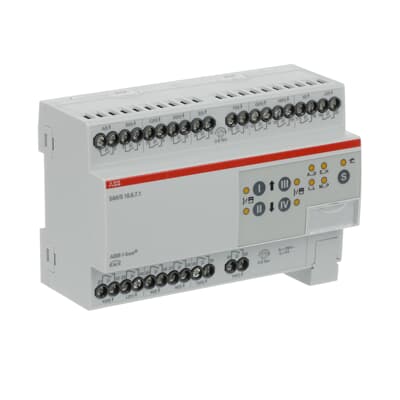

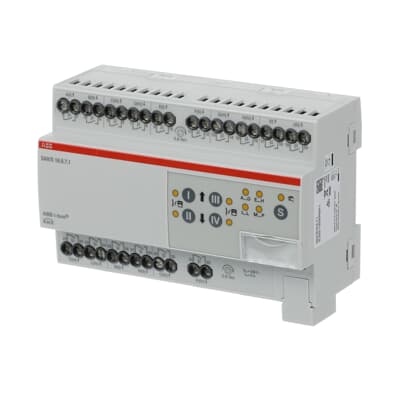

SAH/S16.6.7.1 KNX Switch/Shutter Actuator: 16-Fold 6 A Combi Actuator
The SAH/S16.6.7.1 is built for reliability in building automation, providing high-density switching and shutter control in one modular unit.
1. SAH/S16.6.7.1 KNX Switch/Shutter Actuator: Versatile Control and Capacity
This combi actuator provides the high capacity needed for centralized building control while offering dual functionality.
Capacity and Flexibility:
- Channel Count: 16 independent output channels (relays).
- Current Rating: Maximum output current of 6 A per channel, suitable for non-inductive loads (AC-1).
- Combi Function: Channels can be used as 16 switching outputs or 8 shutter/blind outputs (using pairs), or a mix of both.
- Voltage: Operates on 230 V AC line voltage.
Control and Operation:
- Manual Control: Features manual operation for each channel, which can be disabled via the bus. Switching or driving status is displayed locally.
- Power Source: Powered by KNX (Auxiliary Voltage), simplifying wiring and installation.
- Status Feedback: 10 LEDs and Contact Position Indication (ON/OFF) provide clear visual feedback on the operational status.
2. Technical Details and Installation
The SAH/S16.6.7.1 is designed for standard electrical panel integration.
- Mounting: Designed for professional DIN-Rail installation.
- Dimensions: Occupies 8 modular spacings (140 mm width, 90 mm height, 63.5 mm depth).
- Housing: Light grey housing with an IP20 protection rating.
- Compatibility: Commands are sent via the KNX (TP) bus from devices like a KNX Push Button or a KNX Weather Station
