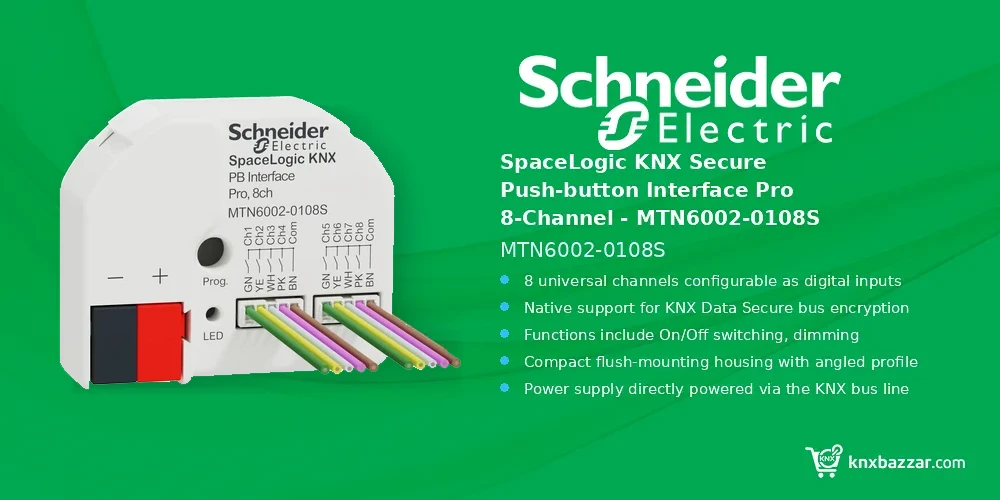

Schneider SpaceLogic KNX Secure Push-button Interface Pro 8-Channel – MTN6002-0108S

Description

Introduction

The Schneider SpaceLogic KNX Secure Push-button Interface Pro (SKU: MTN6002-0108S) is a versatile 8-channel flush-mounted binary interface engineered for advanced building control systems. Designed to seamlessly convert conventional push-buttons, switches, and contact sensors into KNX bus participants, this Pro series interface allows custom integration into residential and commercial smart automation infrastructure. This device is part of our KNX System Components products range.

Equipped with integrated KNX Data Secure encryption, the MTN6002-0108S guarantees resilient communication against unauthorized access across the KNX twisted-pair bus. With 8 universal channels that can be configured independently as digital inputs or outputs, it supports dynamic control over switching, dimming, solar shading, scene management, and tunable white color control.

Key Features

• 8 universal channels configurable as digital inputs or digital outputs.
• Native support for KNX Data Secure bus encryption protocol.
• Functions include On/Off switching, dimming, shutter/blind control, scene management, and tunable white light control.
• Compact flush-mounting housing with angled profile (43.5 mm width, 35.5 mm / 15.4 mm profile dimensions).
• Power supply directly powered via the KNX bus line with 18 mA input current.
• Physical addressing supported via serial number for convenient system engineering in ETS.
• Supports firmware updates over the KNX TP bus connection.

Benefits

• KNX Data Secure technology ensures tamper-proof communication and high cybersecurity standards across the bus network.
• 8 independently configurable universal channels allow flexible assignment for binary inputs or digital LED outputs.
• Comprehensive functional control including switching, dimming, blind/shutter positioning, scene recall, and tunable white light color management.
• Efficient flush-mounting design with a compact angled housing easily fits into standard flush conduit boxes behind switches.
• Simplified commissioning and physical addressing via serial number, combined with easy firmware updates directly over the KNX TP bus.
• Extended connection flexibility supporting up to 30 meters of wiring length for binary contact inputs.

Technical Specifications

Specification	Value
Series	SpaceLogic KNX
Product or component type	Push-button interface
Bus type	KNX
Output type	Digital output
Offer type	Pro
Control type	On/off button
Operating mode	KNX bus system
IP degree of protection	IP20
Input type	Digital input / Universal input
Device presentation	Angled
Colour tint	White
Power supply input current	18
Device mounting	Flush
Number of channels	8
Surface finish	Polished
Surface treatment	Untreated
Width	43.5 mm
Height 1	35.5 mm
Height 2	15.4 mm
Cable length	30 m

Applications

• Integration of standard conventional wall switches, push-buttons, and window contacts into a KNX automation system.
• Status feedback driving low-current signal LEDs or indicator lamps installed inside wall switches.
• Advanced lighting control implementations requiring tunable white light color adjustment and dynamic scene recalls.
• Commercial office space and residential room control requiring secure, encrypted KNX bus communication.

Installation Notes

• Designed for flush-mounted installation inside deep junction boxes behind wall plates.
• Ensure input connection wiring does not exceed the maximum allowable cable length of 30 meters.
• Connect directly to the standard KNX twisted-pair (TP) bus terminal while observing IP20 ingress protection limits.

Developer Resources

• Download the official Schneider Electric ETS product database entry (.knxprod) for MTN6002-0108S.
• Refer to official SpaceLogic KNX documentation for detailed parameterization of KNX Data Secure keys.

FAQ

What is the maximum cable length allowed for external contacts connected to the MTN6002-0108S?

The maximum permissible cable length for external inputs connected to the interface is 30 meters. Explore more products from Schneider for professional building automation projects.

Does the SpaceLogic KNX Push-button Interface Pro support encrypted communication?

Yes, this device fully supports KNX Data Secure encryption, ensuring protected communication over the KNX bus line. For certificates and current technical files, refer to the manufacturer technical documentation.

Can the 8 channels be configured as digital outputs?

Yes, the 8 channels are universal and can be independently configured as either digital inputs for switches or digital outputs for driving status LEDs.

How is physical addressing performed during commissioning?

Physical addressing can be carried out using the printed serial number, and firmware updates can be directly performed over the KNX TP bus.

What is the exact product model?

The order/model code for this page is MTN6002-0108S. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by Schneider.

Conclusion

The Schneider SpaceLogic KNX Secure Push-button Interface Pro 8-channel (MTN6002-0108S) offers system integrators a secure, compact, and high-performance solution for linking standard contacts to modern KNX bus systems. Its support for KNX Data Secure, flexible 8-channel I/O assignment, and extended lighting control functionality make it an essential component for high-standard smart building projects. Installers and system integrators can review our KNX dealer program options.
