Description
Introduction

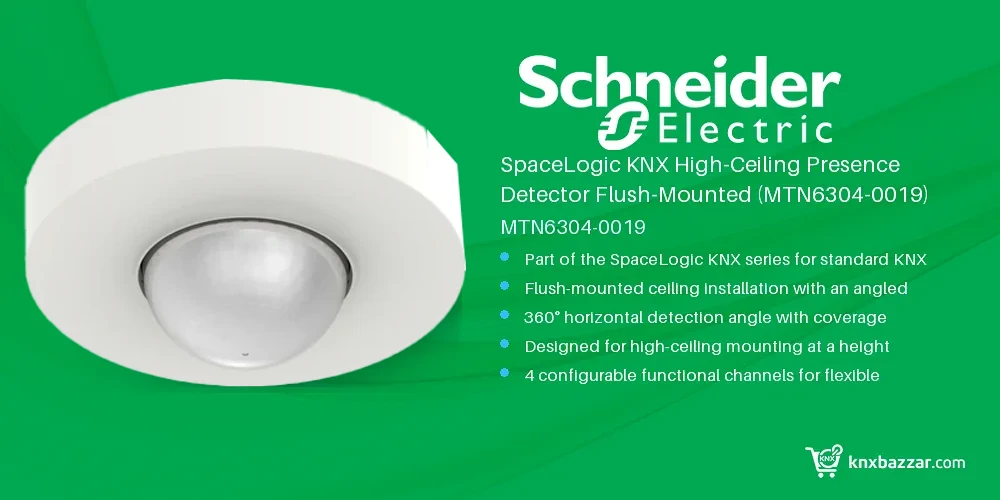

The Schneider SpaceLogic KNX High-Ceiling Presence Detector (MTN6304-0019) is engineered specifically for flush-mounted ceiling installations in high-ceiling environments. Operating directly on the standardized KNX bus system, this white presence detector accurately registers human occupancy even under conditions of minimal physical movement, delivering reliable real-time presence monitoring for smart commercial and residential building automation. This device is part of our KNX system components range.
Designed to maximize flexibility, comfort, security, and operational efficiency—particularly in modern building projects—this 4-channel device integrates smoothly into centralized KNX management systems. Centralized control optimizes building energy consumption, delivering tangible operational cost savings while offering adaptable installation options to minimize site setup time.
Key Features
- Part of the SpaceLogic KNX series for standard KNX bus systems.
- Flush-mounted ceiling installation with an angled device presentation.
- 360° horizontal detection angle with coverage surface of 5 m front and 18 m side.
- Designed for high-ceiling mounting at a height specification of 12 meters.
- 4 configurable functional channels for flexible load control.
- Adjustable light sensitivity and time delay configuration settings.
- Integrated creep zone protection for comprehensive coverage.
- Durable polished plastic enclosure in white with an IP20 protection rating.
Benefits
- Detects human presence accurately even with minimal physical movements in high-ceiling areas.
- Centralized KNX control optimizes energy usage, yielding significant operational cost savings.
- Highly flexible design speeds up commissioning and installation in new building projects.
- Provides comprehensive 360° horizontal detection coverage with creep zone protection.
- Maximizes building occupant comfort, overall security, and project profitability.
- Sustainably packaged with recycled cardboard (at least 70% content) and a lifecycle footprint of 12 kg CO2 eq.
Technical Specifications
Applications
- High-ceiling commercial spaces, office buildings, and public facilities requiring continuous occupancy monitoring.
- Flush-mounted ceiling installations integrated with KNX smart building energy management systems.
- Automated lighting and HVAC control based on multi-channel presence detection.
Installation Notes
- Intended for flush-mounted ceiling installation at a mounting height of 12 meters.
- Connect directly to the standard KNX bus connection without requiring external supplementary power units.
- Configure adjustable light sensitivity thresholds and time delay parameters via ETS software during site commissioning.
Developer Resources
- Access official product data sheets, user manuals, and technical catalogs provided directly by Schneider Electric.
- KNX parameter databases (ETS files) support full commissioning of the 4 independent control channels.
FAQ
What is the recommended mounting height for the MTN6304-0019?
The Schneider SpaceLogic KNX presence detector is designed for flush ceiling mounting at a height specification of 12 meters. Explore more Schneider KNX solutions for professional building automation projects.
What detection range and coverage does this presence detector offer?
It provides a 360° horizontal detection angle, covering a surface area of 5 meters directly in front and 18 meters along the sides, complemented by creep zone protection. For certificates and current technical files, refer to the official product documentation.
How many channels are available on this model?
The device includes 4 configurable channels for versatile automation and control applications.
What parameters can be adjusted on the device?
Both light sensitivity and time delay duration are adjustable to align with specific environmental and project requirements.
What is the exact product model?
The order/model code for this page is MTN6304-0019. Match it against project documents before purchase.
Who is the manufacturer?
This product is manufactured by Schneider.
Conclusion
The Schneider SpaceLogic KNX High-Ceiling Presence Detector (MTN6304-0019) offers an ideal solution for reliable presence sensing in high-altitude ceiling applications. Featuring 360° horizontal coverage, 4 independent control channels, adjustable light sensitivity, and integrated creep zone protection, it helps optimize energy efficiency across modern commercial projects. Installers and system integrators can review our installer purchasing support options.
Backed by an 18-month warranty and Schneider’s commitment to sustainable design, this flush-mounted detector delivers dependable performance, reduced installation time, and reduced long-term operational expenses.
