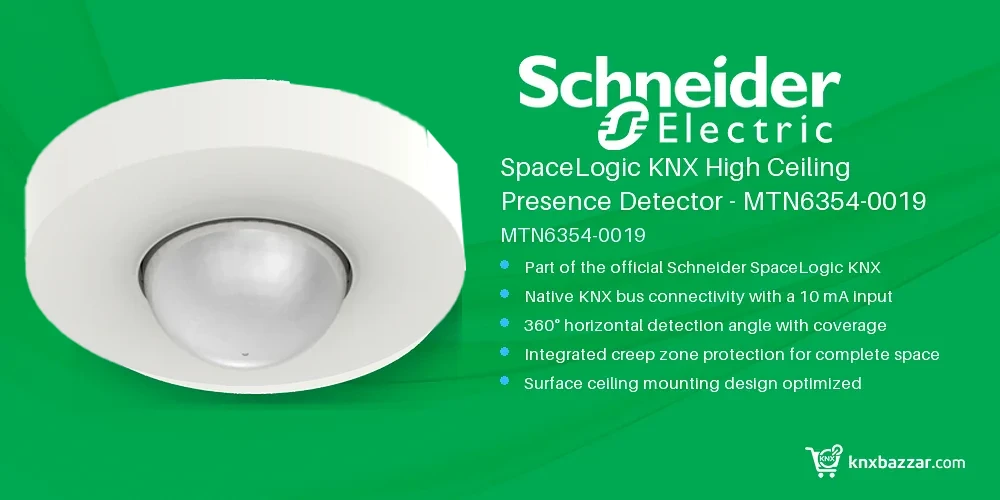

Schneider SpaceLogic KNX High Ceiling Presence Detector – MTN6354-0019

Description

Introduction

The Schneider SpaceLogic KNX High Ceiling Presence Detector (MTN6354-0019) is a specialized presence sensor designed for surface mounting on ceilings in elevated space environments. Operating on the native KNX bus, this device enables centralized control across 4 channels, optimizing energy consumption and delivering significant operational cost savings for commercial and industrial facilities. This device is part of our KNX Sensors products range.

Engineered for high flexibility and adaptability in new building installations, this detector registers presence even with minor movements across a 360° horizontal field. Built with a durable white polished plastic housing and an IP54 protection rating, it enhances building security, occupant comfort, and operational efficiency while streamlining setup workflows.

Key Features

• Part of the official Schneider SpaceLogic KNX product range.
• Native KNX bus connectivity with a 10 mA input current requirement.
• 360° horizontal detection angle with coverage extending 5 m in front and 18 m to the side.
• Integrated creep zone protection for complete space coverage and enhanced security.
• Surface ceiling mounting design optimized for high-ceiling architectural requirements.
• Durable white polished plastic housing with an untreated surface treatment.
• Backed by an 18-month manufacturer warranty.

Benefits

• Delivers 360° horizontal presence sensing capable of detecting minor occupant movements across large spaces.
• Centralized integration with the KNX bus platform optimizes energy usage and reduces overall operational costs.
• Supports 4 independent channels for versatile automation and control configuration.
• IP54 protection rating guards the internal components against dust and splash water ingress.
• Optimized for high-ceiling surface mounting up to a 12-meter installation height.
• Offers adjustable light sensitivity thresholds and custom duration settings for accurate presence control.

Technical Specifications

Specification	Value
Seri	SpaceLogic KNX
Product Ya da Bileşen Tipi	Varlık dedektörü
veriyolu tipi	KNX
Ayarın Tipi	Işığa duyarlılık ayarlanabilirSüre ayarı
IP Koruma Derecesi	IP54
renk tonu	Beyaz
güç besleme giriş akımı	10
cihaz sunumu	Açılı
kanalların sayısı	4
Koruma Türü	Kabarma bölgesi koruma
algılama yüzeyi	Ön: 5 mYan: 18 m
algılama açısı	360° yatay
malzeme	Plastik cilalı
yüzey bakımı	Işlenmemiş
Cihaz Montajı	YüzeyTavan
montaj yüksekliği	12
Paketteki birim sayısı	1
Paket ağırlığı (Lbs)	283.000
Garanti (ay olarak)	18
Unit Type of Package 1	PCE
Unit Type of Package 2	S03
Number of Units in Package 2	13
Package 1 Height	7.800
Package 1 Width	12.500
Package 1 Length	16.000

Applications

• High-ceiling commercial offices, reception areas, and public buildings utilizing KNX automation.
• Industrial halls, warehouses, and high-bay logistics facilities with mounting heights up to 12 meters.
• Energy-efficient smart building projects requiring 4-channel presence sensing and centralized KNX management.

Installation Notes

• Designed specifically for ceiling surface mounting with an angled presentation in high-ceiling structures.
• Connects directly to the KNX bus line with a power supply input current rating of 10 mA.
• Allows customization of operational duration settings and light sensitivity thresholds during system setup.

Developer Resources

• Product Data Sheet and User Installation Guide available for system configuration.
• Compatible with standard ETS software for KNX device parameterization and bus commissioning.

FAQ

What mounting height is supported by the Schneider MTN6354-0019?

The Schneider SpaceLogic KNX presence detector is specified for high-ceiling surface mounting at a height of up to 12 meters. Explore more Schneider automation devices for professional building automation projects.

What is the detection area of this sensor?

The detector provides a 360° horizontal detection angle with a coverage zone measuring up to 5 meters to the front and 18 meters to the side. For certificates and current technical files, refer to the official Schneider documentation.

What is the IP protection rating of the MTN6354-0019?

This model features an IP54 rating, housed in a white polished plastic unit with creep zone protection.

How many channels are available on this KNX device?

The detector provides 4 configurable channels for KNX building automation networks.

What is the exact product model?

The order/model code for this page is MTN6354-0019. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by Schneider.

Conclusion

The Schneider SpaceLogic KNX High Ceiling Presence Detector (MTN6354-0019) combines high-altitude detection, 4-channel control capability, and an IP54 protection rating to meet strict commercial building demands. Installers and system integrators can review our KNX dealer program options.

With a 12-meter mounting height, 360° coverage, and an 18-month manufacturer warranty, it stands as a reliable, energy-saving choice for modern KNX infrastructure.
