Schneider SpaceLogic KNX DALI Gateway Pro 1-Channel DALI-2 (MTN6725-0101)

Description

Introduction

The Schneider SpaceLogic KNX DALI Gateway Pro (MTN6725-0101) is a high-performance 1-channel DALI-2 gateway engineered to connect KNX installation buses with electronic ballasts via a DALI interface. Designed specifically for modern commercial and residential buildings, it enables centralized lighting control to optimize energy usage and lower operational costs while ensuring flexible, future-proof automation. This device is part of our KNX Gateway products range.

Built for seamless integration, this device supports KNX long frame communication and is compatible with KNX Security standards. Featuring a built-in HTTP web server and an onboard LCD display for local status signaling, the Schneider SpaceLogic KNX DALI Gateway Pro streamlines both commissioning and daily system administration across 4-module DIN rail installations.

Key Features

• 1-channel DALI-2 communication port protocol output.
• KNX bus communication with support for KNX Long Frames and KNX Security compatibility.
• Integrated HTTP web server for web services and device management.

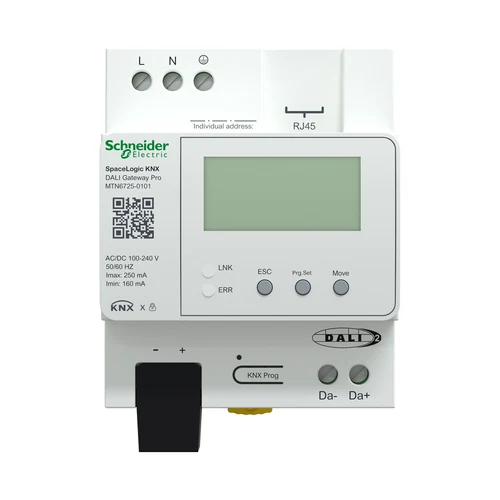

• Onboard LCD display for direct device status signaling and local operation.
• 4-module DIN rail mounting width (18 mm per module).
• Updatable software capability for ongoing system enhancements.
• Wide operational input range supporting 100…240 V at 50/60 Hz.

Benefits

• Centralized Energy Optimization: Controls electronic ballasts via DALI-2 over KNX, drastically reducing operational energy consumption and utility costs.
• Enhanced Security & Performance: Supports KNX Long Frames and maintains compatibility with KNX Security protocols for protected data transmission.
• Simplified Monitoring & Local Diagnostics: Equipped with an onboard LCD screen for instant device signaling and an integrated HTTP web server.
• Future-Proof Adaptability: Features updatable software to maintain system compatibility and adapt to evolving smart building requirements over time.
• Fast, Flexible Installation: Compact 4-module DIN rail mounting design speeds up installation times in new builds and retrofit projects.

Technical Specifications

Specification	Value
Product series	SpaceLogic KNX
Product or component type	DALI gateway
Bus type	KNX
Available function	Updatable software
IP degree of protection	IP20
Number of output channels	1
Colour tint	White
Power supply input current	5
Rated operational voltage (Ue)	100…240 V
Web services	HTTP server
Device signaling	LCD display
Number of units in package	1
Package weight (Lbs)	274.000
Warranty	18
Mounting support	DIN rail
Total number of 18 mm modules	4
Network frequency	50/60 Hz
Communication port protocol	DALI-2
Market segment	Buildings, Commercial, Critical buildings, Hospitality/hotel, School, Office, Small businesses
Unit Type of Package 1	PCE

Applications

• Commercial Offices & High-Rise Buildings: Centralized DALI lighting control across office floors integrated with KNX automation.
• Hospitality & Hotels: Efficient control of room and common area lighting with secure data transmission.
• Educational Institutions & Schools: Optimized illumination and energy-saving lighting schedules for classrooms and lecture halls.
• Critical Infrastructure & Small Businesses: Dependable, secure lighting automation for facility management.

Installation Notes

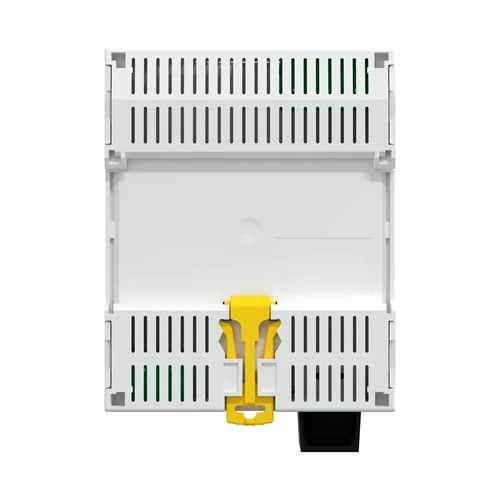

• Mount the unit directly onto a standard 35 mm DIN rail inside a switchboard or panel (occupies 4 x 18 mm module spaces).
• Connect to a 100…240 V AC (50/60 Hz) power supply and verify correct wiring to the 1-channel DALI-2 output line.
• Ensure IP20 protection compliance by installing the gateway inside an appropriately rated distribution enclosure.

Developer Resources

• Integrate with ETS software using official SpaceLogic KNX system application files.
• Access the embedded HTTP web server for remote configuration and diagnostic capabilities.

FAQ

Does the Schneider MTN6725-0101 support KNX Secure?

Yes, the gateway is compatible with KNX Security protocols and supports KNX Long Frame communication. Explore more Schneider KNX solutions for professional building automation projects.

How many DALI output channels does this gateway provide?

This model features 1 DALI-2 output channel for controlling electronic ballasts. For certificates and current technical files, refer to the official Schneider product page.

How is the device mounted?

It is designed for DIN rail mounting and occupies 4 modules of 18 mm width each.

What local status displays are available on the physical unit?

The device features an integrated LCD display for direct status signaling and diagnostics.

What is the exact product model?

The order/model code for this page is MTN6725-0101. Match it against project documents before purchase.

Who is the manufacturer?

This product is manufactured by Schneider.

Conclusion

The Schneider SpaceLogic KNX DALI Gateway Pro (MTN6725-0101) offers an efficient, highly secure bridge between KNX systems and DALI-2 lighting networks. Its combination of web services, LCD diagnostics, and KNX Security support makes it an ideal choice for modern smart building projects. Installers and system integrators can review our become a KNX dealer options.
