EAE PD100 KNX Sensor: Intelligent Presence & Constant Light Control

In the modern landscape of building automation, efficiency, comfort, and energy savings are paramount. EAE Technology, a leading provider of smart building solutions, addresses these needs with its highly versatile EAE PD100 KNX Sensor. Designed as a core component of KNX, this EAE PD100 KNX Sensor combines sophisticated presence detection with constant light control, making it an indispensable tool for optimizing the performance of various indoor spaces. This detailed overview explores the sensor’s core technology, its wide-ranging applications, and the tangible benefits it delivers.

Core Technology and Operating Principle of the EAE PD100 KNX Sensor

At the heart of the EAE PD100 KNX Sensor’s functionality is its dual-sensor design, which integrates both a passive infrared (PIR) movement sensor and an integrated light level sensor. This combination allows the device to not only detect the presence of individuals but also to measure the ambient light, enabling it to perform its signature constant light function.

The sensor’s intelligence lies in its ability to process data from both sensors to maintain a user-defined light level. When a person enters a room, the movement sensor detects their presence. Consequently, the device activates the lighting system if the ambient light is below the set threshold. Once activated, the constant light function dynamically adjusts the light output (dimming or brightening) to compensate for changes in natural light. Therefore, this prevents unnecessary energy consumption by lights that would otherwise stay on at full brightness.

The sensor offers flexible configuration options, allowing users to define different brightness levels and durations for various states, ensuring the lighting perfectly matches the activity and purpose of the space.

Design, Installation, and Integration of the PD100 KNX Sensor

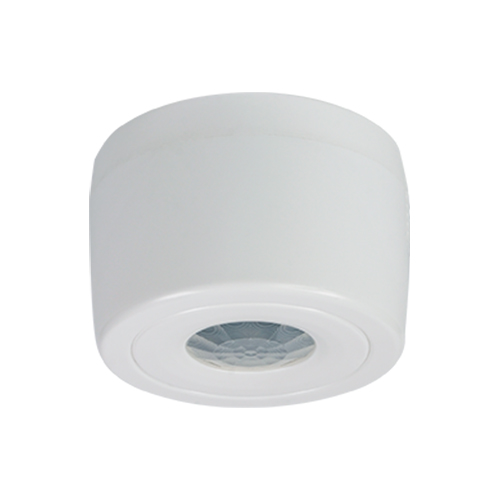

The PD100 is engineered for seamless integration into a variety of architectural designs. It is available in two models: flush-mounted and surface-mounted. This flexibility allows for a clean and discreet installation on ceilings, blending into the interior design of modern buildings. The recommended installation height ranges from $2.5$ to $5$ meters, offering a wide $360$-degree detection angle for comprehensive coverage.

One of the most significant advantages of the EAE PD100 KNX Sensor is its KNX-based operation. It is powered directly by the KNX bus line, eliminating the need for an external power supply and reducing cabling complexity—a major benefit in large-scale building automation projects. The sensor can be configured to operate as a single, standalone device or as part of a master-slave setup in parallel with other KNX presence sensors. This master-slave capability allows multiple sensors to work together as a single, cohesive unit for covering large or irregular spaces.

Furthermore, for added convenience during setup, the PD100 includes special test and calibration modes. These features allow installers to quickly and easily verify the detection range and calibrate the light level sensor, streamlining the commissioning process and ensuring optimal performance from day one.

Versatile Applications and Real-World Impact of the KNX Sensor

The EAE Technology PD100 is designed for a broad spectrum of indoor applications where intelligent control is crucial for energy management and occupant comfort:

• Office Buildings: The PD100 ensures that lighting is active only when rooms are occupied, automatically dimming lights on sunny days.
• Conference and Meeting Rooms: The sensor adjusts lighting and HVAC based on occupancy, reverting to an energy-saving mode once the room is vacant.
• Corridors and Hallways: With a customizable “Corridor Function,” the sensor minimizes energy use during periods of low traffic while maintaining safety.
• Warehouses and Parking Garages: Consequently, the PD100 is a powerful tool for on-demand lighting, activating in specific zones only when presence is detected.

Beyond Lighting: Integrated HVAC Control with the PD100

While its primary function is lighting control, the PD100’s capabilities extend to other critical building systems. Thanks to a dedicated HVAC channel, the sensor can be linked to air conditioning and ventilation systems.

For example, when presence is detected in a room, the PD100 can signal the HVAC system to begin heating or cooling the space. Conversely, when the room becomes vacant, the sensor can trigger the system to enter an energy-saving standby mode. This integration of lighting and climate control through a single, intelligent device maximizes both energy efficiency and occupant comfort.

Conclusion: A Smart Investment in Building Efficiency

The EAE PD100 KNX Sensor is a sophisticated, intelligent control device that provides a foundation for truly smart, energy-efficient buildings. By meticulously managing lighting and HVAC based on real-time occupancy and ambient conditions, it helps facility managers achieve significant reductions in energy consumption and operational costs. Its ease of installation, flexible configuration, and seamless integration with the KNX standard make it a standout choice. For further technical documentation, you can refer to the download tab for more information.
