ABB BE/M4.230.1 Binary Input Module, 4-fold, 230 V

Description

Introduction

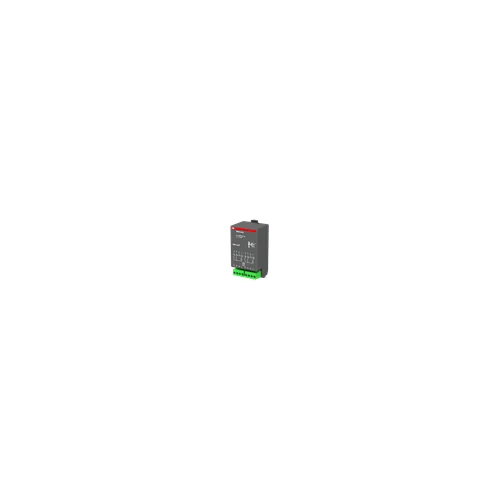

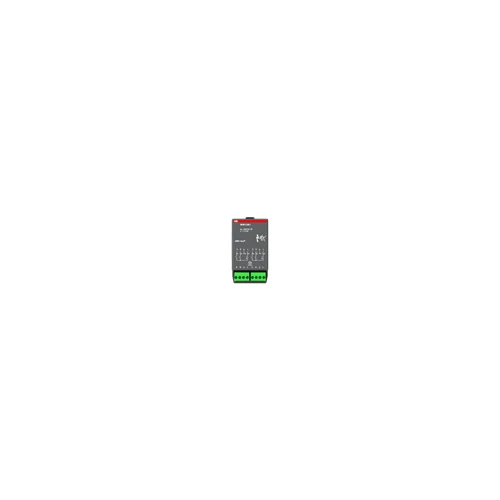

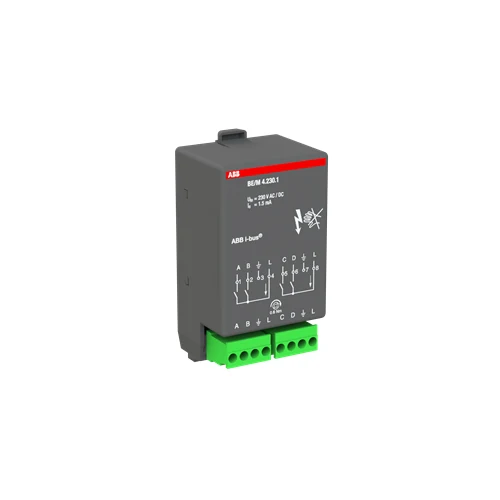

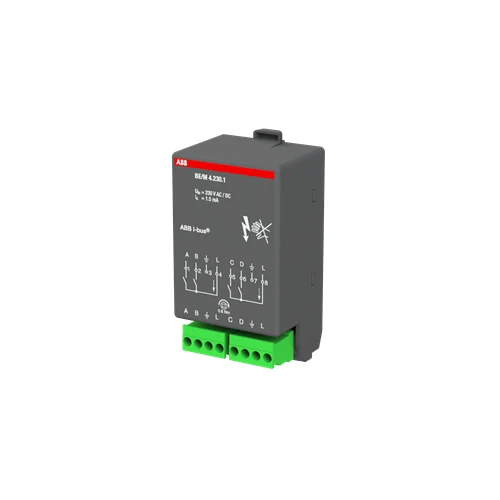

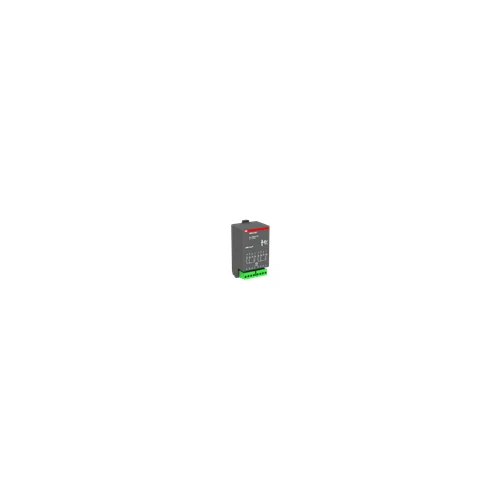

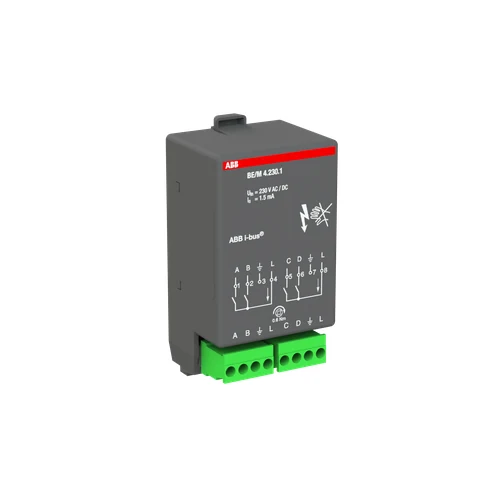

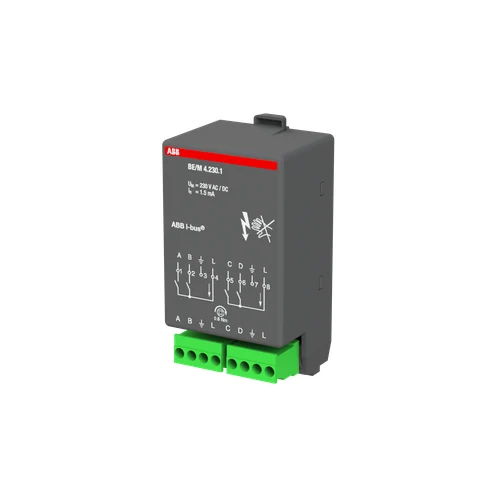

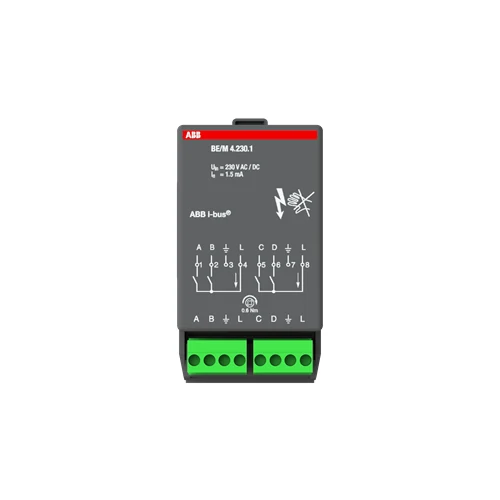

The ABB BE/M4.230.1 is a 4-fold, 230 V binary input module for KNX system component projects where 230 V contacts need to be integrated through a Room Controller Basis Device. The module is designed for plugging into the Room Controller Basis Device and provides four inputs for the connection of 230 V contacts.

For consultants, installers, integrators, and procurement teams, ABB BE/M4.230.1 offers a clearly identifiable product reference for specification and ordering. The product data identifies the extended product type as BE/M4.230.1, Product ID 2CDG110005R0011, EAN 4016779583114, and catalog description BE/M4.230.1 Binary Input Module, 4-fold, 230 V.

Key Features

• Brand: ABB.
• SKU and extended product type: BE/M4.230.1.
• Catalog description: BE/M4.230.1 Binary Input Module, 4-fold, 230 V.
• Product ID: 2CDG110005R0011.
• Number of digital inputs: 4.
• Input voltage type: AC/DC.
• Voltage range listed in product data: 110 … 230 V AC.
• Manual operation: No.

Benefits

• Provides four digital inputs for projects requiring connection of 230 V contacts.
• Designed as a plug-in module for the Room Controller Basis Device, supporting structured system component planning.
• Supports 230 V contact connection with AC or DC contact types as stated in the product description.
• The voltage is provided by the module, simplifying product identification against the stated ABB product description.
• Clear ABB identifiers, including Product ID 2CDG110005R0011 and EAN 4016779583114, help reduce ordering and BOQ matching errors.
• Document references for instructions, commissioning, wiring, and CE declaration are available in the product data for verification before procurement and installation.

Technical Specifications

Specification	Value
Extended Product Type	BE/M4.230.1
Product ID	2CDG110005R0011
Display Name	BE/M4.230.1
Instructions and Manuals	GHQ6607007P0003
Installing and Commissioning Manual	2CDC514022D0201
Number of Digital Inputs	4
Number of Inputs	Analog (0 … 10 V / 4 … 20 mA) 4
Manual Operation	No
Number of Batteries	0
E-Number (Norway)	4544241
E-Number (Sweden)	1751410
Declaration of Conformity – CE	2CDK514078D2701
EAN	4016779583114
Catalog Description	BE/M4.230.1 Binary Input Module, 4-fold, 230 V
Wiring Diagram	9AKK108469A6662
Manufacturer Description	Module for plugging into the Room Controller Basis Device.It has 4 inputs for the connection of 230 V contacts (AC or DC). The voltage is provided by the module.
Voltage Range	110 … 230 V AC
Auxiliary Voltage AC/DC	10 … 30 V DC
Input Voltage (U<sub>in</sub>)	100 … 230 V
Input Voltage Type	AC/DC
Power Loss	0
Mounting Type	Built-in
Degree of Protection	IP54
Compatible Bus Systems	KNX (TP)
Product Range	KNX

Applications

• Connection of 230 V contacts to a Room Controller Basis Device using the ABB BE/M4.230.1 plug-in module.
• KNX system component procurement where the BOQ specifies ABB BE/M4.230.1 or Product ID 2CDG110005R0011.
• Projects requiring a 4-fold binary input module identified by EAN 4016779583114.
• Specification workflows where official document identifiers, wiring diagram reference, and declaration of conformity reference must be checked before ordering.

Installation Notes

• The ABB BE/M4.230.1 is described as a module for plugging into the Room Controller Basis Device.
• It has four inputs for the connection of 230 V contacts, AC or DC, and the voltage is provided by the module.
• Before installation or commissioning, verify the ABB instructions and manuals reference GHQ6607007P0003 and installing and commissioning manual reference 2CDC514022D0201.
• Use the ABB wiring diagram reference 9AKK108469A6662 and confirm the specified product identifiers match the project documentation.
• Manual operation is listed as No, so project planning should not assume local manual operation from this module.

Developer Resources

• Manufacturer URL: https://new.abb.com/products/en/2CDG110005R0011/be-m4-230-1.
• Instructions and Manuals: GHQ6607007P0003.
• Installing and Commissioning Manual: 2CDC514022D0201.
• Wiring Diagram: 9AKK108469A6662.
• Declaration of Conformity – CE: 2CDK514078D2701.
• EAN: 4016779583114.
• Product category on KNXbazzar.com: https://knxbazzar.com/product-category/knx-system-components/.
• ABB brand page on KNXbazzar.com: https://knxbazzar.com/knxshop/?brand=abb.

FAQ

What is the ABB BE/M4.230.1 used for?

The ABB BE/M4.230.1 is a 4-fold, 230 V binary input module for plugging into the Room Controller Basis Device. It has four inputs for the connection of 230 V contacts.

How many inputs does ABB BE/M4.230.1 provide?

The product data lists the number of digital inputs as 4. The catalog description also identifies it as a 4-fold binary input module.

Can the inputs be used with AC or DC contacts?

Yes. The product description states that the module has four inputs for the connection of 230 V contacts, AC or DC.

Does ABB BE/M4.230.1 have manual operation?

No. The product data lists Manual Operation as No.

Which identifiers should be checked before ordering?

Check the exact SKU BE/M4.230.1, Product ID 2CDG110005R0011, EAN 4016779583114, and catalog description BE/M4.230.1 Binary Input Module, 4-fold, 230 V against the project BOQ and official ABB documentation.

What is the exact product model?

The order/model code for this page is BE/M4.230.1. Match it against project documents before purchase.

Conclusion

The ABB BE/M4.230.1 is a clearly specified 4-fold, 230 V binary input module for plugging into the Room Controller Basis Device, with four inputs for 230 V AC or DC contacts.

For professional procurement, verify BE/M4.230.1, Product ID 2CDG110005R0011, EAN 4016779583114, and the referenced ABB manuals and wiring diagram before final order placement.
