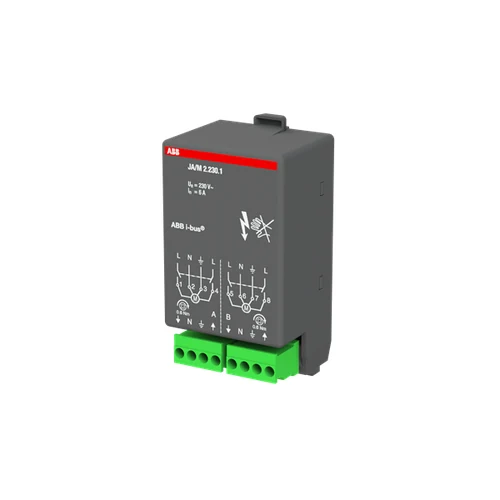

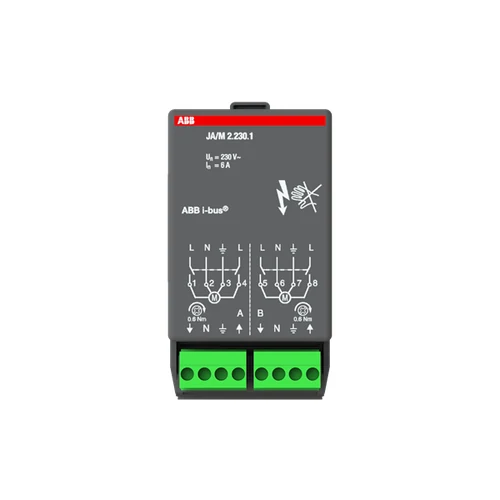

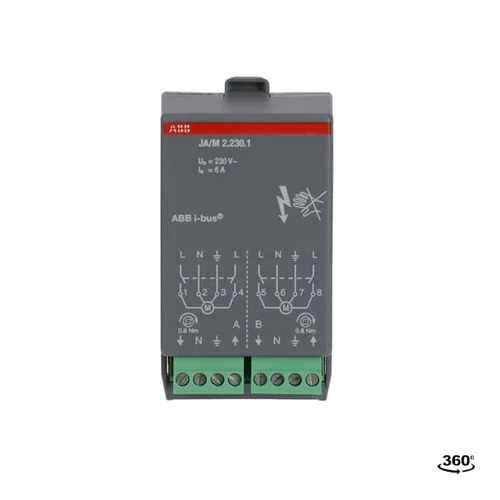

ABB JA/M2.230.1 Shutter Actuator Module, 2-fold, 230 V AC

Description

Introduction

The ABB JA/M2.230.1 is a shutter actuator module in the KNX Actuators category, designed as a module for plugging into the Room Controller Basis Device. Its catalog description is JA/M2.230.1 Shutter Actuator Module, 2-fold, 230 V AC.

According to the provided ABB product data, the JA/M2.230.1 controls two independent blind or shutter drives with 115/230 V AC. It supports special functions including move to position and sun protection automatic control, making it relevant for professional blind, shutter, and shading-control applications.

Key Features

• Brand: ABB.
• SKU / model: JA/M2.230.1.
• Extended Product Type: JA/M2.230.1.
• Product ID: 2CDG110003R0011.
• Catalog description: JA/M2.230.1 Shutter Actuator Module, 2-fold, 230 V AC.
• Number of outputs: 2.
• Application function: Blind / Shutter / Shading Control.
• Manual operation: No.

Benefits

• Controls two independent blind or shutter drives from one module, supporting efficient actuator planning for shading projects.
• Designed for plugging into the Room Controller Basis Device, helping consultants and integrators align the actuator module with the intended room-controller architecture.
• Supports move-to-position functionality for controlled blind or shutter positioning where this function is required in the project design.
• Includes sun protection automatic control as a stated special function for shading-control applications.
• Built-in mounting type supports integration within the specified controller-based installation approach.
• No batteries are specified for the product, reducing battery-related maintenance considerations for this module.

Technical Specifications

Specification	Value
Extended Product Type:	JA/M2.230.1
Product ID:	2CDG110003R0011
Instructions and Manuals:	GHQ6607004P0002
Installing and Commissioning Manual:	2CDC514020D0201
Number of Outputs:	2
Manual Operation:	No
Number of Batteries:	0
Declaration of Conformity – CE:	2CDK514075D2701
Declaration of Conformity – CE	2CDK514075D2701
EAN:	4016779583152
Catalog Description:	JA/M2.230.1 Shutter Actuator Module, 2-fold, 230 V AC
Long Description:	Module for plugging into the Room Controller Basis Device. They control two independent blind or shutter drives with 115/230 V AC. Special functions: Move to position and sun protection automatic control.
2CDG110106R0011	RC/A8.2 Room Controller Basis Device, 8 Modules, SM
2CDG110104R0011	RC/A4.2 Room Controller Basis Device, 4 Modules, SM
Mounting Type:	Built-in
Application Function:	Blind / Shutter / Shading Control
Installation Instructions and Manuals	GHQ6607004P0002 Installing and Commissioning Manual: 2CDC514020D0201 Mounting Type: Built-in
Instructions and Manuals	GHQ6607004P0002 Installing and Commissioning Manual: 2CDC514020D0201 Mounting Type: Built-in
Data Sheet, Technical Information:	2CDC514016D0202
Current Type:	AC
Output Voltage (U out ):	230 V AC
Maximum Switching Current:	1380
Power Loss:	0
Compatible Bus Systems:	KNX (TP)
Product Range:	KNX

Applications

• Control of two independent blind drives in building-automation projects using the specified ABB module arrangement.
• Control of two independent shutter drives with 115/230 V AC as stated in the product description.
• Shading-control applications requiring move-to-position functionality.
• Sun protection automatic control applications where this special function is included in the design requirements.

Installation Notes

• The JA/M2.230.1 is described as a module for plugging into the Room Controller Basis Device; verify the exact basis device requirement against the project BOQ and ABB documentation before ordering.
• Mounting type is listed as built-in.
• Product data references RC/A8.2 Room Controller Basis Device, 8 Modules, SM, product code 2CDG110106R0011, and RC/A4.2 Room Controller Basis Device, 4 Modules, SM, product code 2CDG110104R0011.
• Use the referenced ABB instructions and installing/commissioning manual identifiers when planning installation and commissioning: GHQ6607004P0002 and 2CDC514020D0201.
• Manual operation is listed as No, so project teams should account for this during control concept review and commissioning planning.

Developer Resources

• Manufacturer product URL: https://new.abb.com/products/en/2CDG110003R0011/ja-m2-230-1
• Instructions and Manuals reference: GHQ6607004P0002.
• Installing and Commissioning Manual reference: 2CDC514020D0201.
• Data Sheet / Technical Information reference: 2CDC514016D0202.
• Declaration of Conformity – CE reference: 2CDK514075D2701.
• EAN: 4016779583152.

FAQ

What is the ABB JA/M2.230.1 used for?

It is a shutter actuator module for plugging into the Room Controller Basis Device and is used for blind, shutter, and shading control applications.

How many outputs does the JA/M2.230.1 have?

The product data lists the number of outputs as 2.

Does the JA/M2.230.1 provide manual operation?

No. Manual operation is listed as No in the provided product data.

Which special functions are stated for this module?

The stated special functions are move to position and sun protection automatic control.

What documentation references should be checked before installation?

Check the ABB instructions and manuals reference GHQ6607004P0002 and the installing and commissioning manual reference 2CDC514020D0201.

What is the exact product model?

The order/model code for this page is JA/M2.230.1. Match it against project documents before purchase.

Conclusion

The ABB JA/M2.230.1 is a 2-output shutter actuator module for blind, shutter, and shading-control applications, with stated support for move to position and sun protection automatic control.

For accurate procurement, match the model JA/M2.230.1 and Product ID 2CDG110003R0011 against the project BOQ and ABB documentation before purchase.
